Summary of Contents for ADRF SDRX-43-BTF

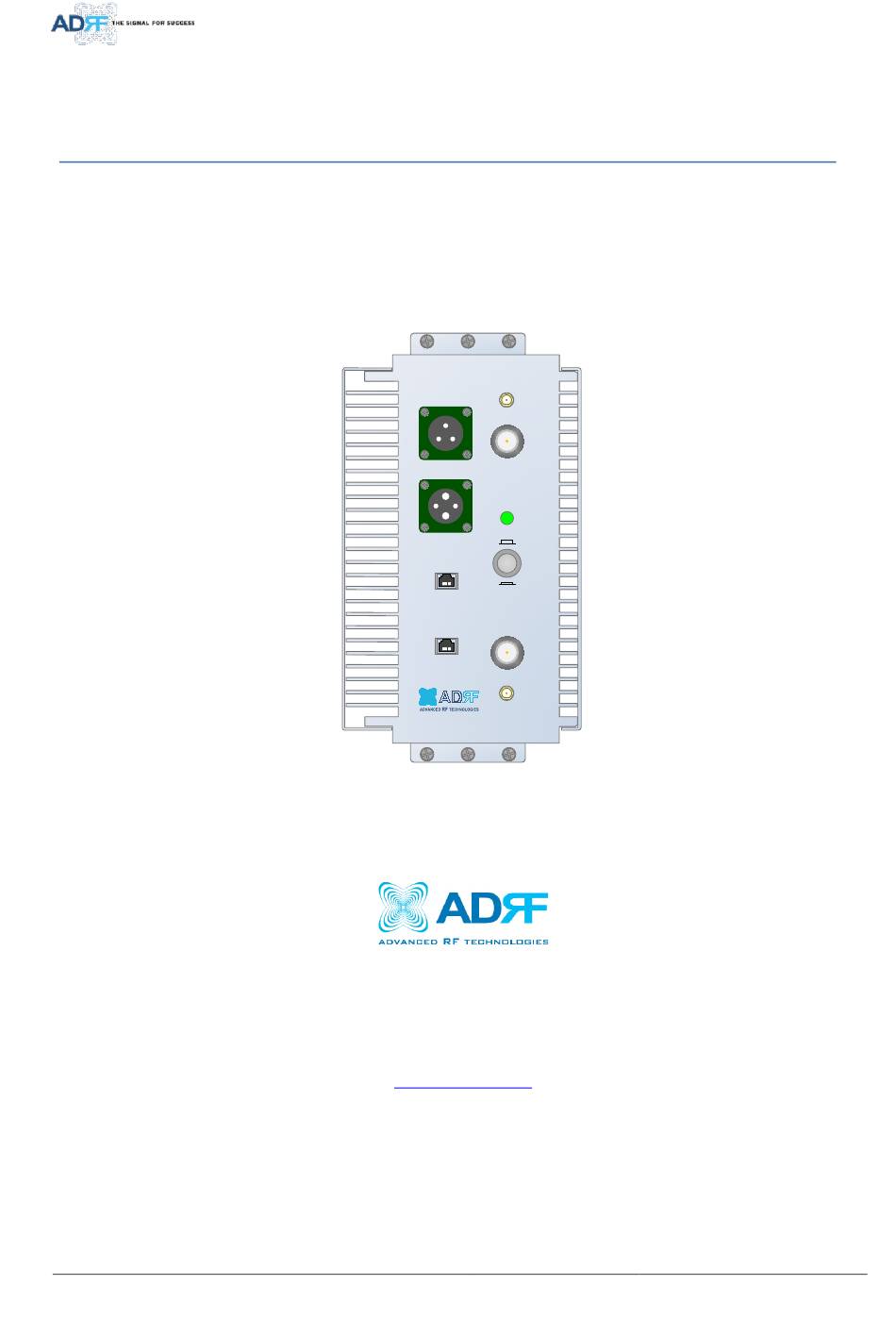

- Page 1 SDRX-43-BTF User's Manual Version SDRX-43-BTF CPL(-40dB) AC IN SERVER BATTERY SERVICE HOST LAN0 REMOTE LAN1 DONOR CPL(-20dB) 3116 West Vanowen St. Burbank, CA 91505 Tel: 818-840-8131 Fax: 818-840-8138 www.adrftech.com Advanced RF Technologies, Inc.
- Page 2 Information in this document is subject to change without notice. Advanced RF Technologies, Inc. 1996-2017. All rights reserved. • Please send comments to: E-Mail: info@adrftech.com Phone: (818) 840-8131 (800) 313-9345 Fax: (818) 840-8138 • Address: Advanced RF Technologies, Inc. Attention: Technical Publications Department 3116 Vanowen St.
- Page 3 REVISION HISTORY Version Author Descriptions Date YH Ko Initial Release 01/27/ 2022 CHANGE LIST Version Change list Contents Advanced RF Technologies, Inc.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Introduction ................................ 9 Highlights ..............................9 Warnings and Hazards ..........................10 Overview ................................16 LED ................................16 Host/Remote Switch ........................... 16 Ethernet Port .............................. 17 2.3.1 AC Power ............................17 2.3.2 Back Up Battery Port .......................... 18 RF Ports ............................... - Page 5 5.5.4 System: Update ..........................35 5.5.5 System- Backup ..........................35 Help ................................36 Logout ................................. 36 Maintenance Guide for SDRX-43-BTF Repeater ....................37 Periodic Inspection Checklist ........................37 Preventive Measures for Optimal Operation ..................... 37 6.2.1 Recommendations ..........................37 6.2.2 Precautions ............................37 Warranty and Repair Policy ..........................
- Page 6 FIGURES Figure 2-1 LED ..............................16 Figure 2-2 Host/Remote Switch ........................... 16 Figure 2-3 AC Input Port ............................17 Figure 2-4 Battery Backup Port ..........................18 Figure 2-5 RF port ..............................18 Figure 4-1 Wall Mount ............................20 Figure 4-2 Ground Cable Connection ........................
- Page 7 TABLES Table 2-1 RF Module LED Specifications ......................16 Table 3-1 Message Board Alarms and Notification .................... 19 Advanced RF Technologies, Inc.
- Page 8 Terms and Abbreviations The following is a list of abbreviations and terms used throughout this document. Abbreviation/Term Definition Automatic Level Control AROMS ADRF’ Repeater Operation and Management System Bi-Directional Amplifier Base Transceiver Station CDMA Code Division Multiple Access Crest Factor Reduction...
-
Page 9: Introduction
1. INTRODUCTION The SDRX-43-BTF is an over-the-air high power repeater supporting BRS TDD band. Highlights • Channel and bandwidth Selectable • Digital filtering Remote monitoring and control capability using our Web-based GUI • Configurable network setting in order to interface with 3rd party external modem boxes •... -
Page 10: Warnings And Hazards
Warnings and Hazards WARNING! ELECTRIC SHOCK Opening the SDRX-43-BTF could result in electric shock and may cause severe injury. WARNING! EXPOSURE TO RF Working with the repeater while in operation, may expose the technician to RF electromagnetic fields that exceed FCC rules for human exposure. - Page 11 WARRANTY Opening or tampering the SDRX-43-BTF will void all warranties. Lithium Battery: CAUTION. RISK OF EXPLOSION IF BATTERY IS REPLACED BY INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO INSTRUCTIONS. Ethernet Instructions: This equipment is for indoor use only. All cabling should be limited to inside the building.
- Page 12 CAUTION Circuit Breaker Installation in the Box for Overcurrent Protection Must install the circuit breaker between the system and main AC source for separation. Make sure to install the circuit breaker on the place to operate easily. Circuit breaker is able to operate up to 20A. Advanced RF Technologies, Inc.
- Page 13 ◈LABEL WARNING◈ Regulatory Warning Statement FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 140 cm(Uplink) and 110 cm(DownLink) between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
- Page 14 RSS-GEN Warning Statement RSS-GEN (6.8 Transmit antenna) Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
- Page 15 WARNING! Hot surface Advanced RF Technologies, Inc.
-
Page 16: Overview
2. OVERVIEW The SDRX-43-BTF has an LED in the Lower left corner as shown in figure below. Figure 2-1 Table 2-1 RF Module LED Specifications LED Indicator Specifications Service Green System is Normal Orange Soft Fail Hard Fail Host/Remote Switch... -
Page 17: Ethernet Port
2.3.1 AC Power Figure 2-3 AC Input Port The SDRX-43-BTF PSU can operate at 110V AC to 220V AC. The user should verify that the AC input voltage is the correct voltage before powering on the SDRX-43-BTF. Advanced RF Technologies, Inc. -
Page 18: Back Up Battery Port
Figure 2-4 Battery Backup Port The SDRX-43-BTF can be connected to an ADRF-BBU (ADRF Battery Backup) to provide power during a power failure. If an ADRF-BBU is utilized, connect the ADRF-BBU to the SDRX-43-BTF via the external battery port. (WARNING: The circuit switch on the ADRF-BBU must be set to OFF before connecting the ADRF-BBU to the SDRX-43-BTF to prevent damage to the repeater or the ADRF-BBU and personal injury.) -
Page 19: Alarms
3. ALARMS Message Board Alarms and Notification Table 3-1 Message Board Alarms and Notification Parameters Remark AC Fail Power supply is not operating within specs DC Fail Power supply is not operating within specs Fan[1/2] Fail System has detected an issue with the fan1 and fan2 Temperature Module is above the normal operating temperature Current... -
Page 20: Installation
• Place the SDRX-43-BTF mounting template up against the wall and mark of mount holes • Mount the SDRX-43-BTF to wall use the six (6) mounting hole on the wall mount bracket • Connect the GND cable Connect the Antenna cable •... -
Page 21: Antenna Separation/Isolation
50 dB, then an isolation of 70dB or greater is required. In the same manner, because the SDRX-43-BTF has a maximum gain of 95dB in case of SDRX-43-BTF, it requires isolation of at least 115dB. -
Page 22: Line Of Sight
Line of Sight The donor antenna which points towards the BTS typically has a narrow beam antenna pattern. As a result, a slight deviation away from the direction of the BTS can lead to less than optimum results. In addition, obstacles between the repeater and the BTS may impair the repeater from obtaining any BTS signal. -
Page 23: Web-Gui Setup
If you are not the Administrator, please type in your assigned username & password which you should have received from the Administrator. The default username and password for the General User is adrf & adrf, respectively. The default Administrator login is admin & admin, respectively. -
Page 24: Status Tab
Status Tab Figure 5-2 Status Tab 5.2.1 Band Figure 5-3 Band Display 5.2.2 Power & Gain This section displays the Input, Gain, and Output for both downlink and uplink. Figure 5-4 Power & Gain Display Input [dBm] – Displays the in-band Downlink/Uplink signal level. The system will display “--.-“when the •... -
Page 25: Alarm
5.2.3 Alarm This section displays the alarm status for System alarms, RF Alarms, and Power alarms. If an alarm is present in the system, then the color of the alarm tab will change according to the type of failure. Figure 5-5 Alarm Display 5.2.4 Message Board Displays the 30 most recent events. -
Page 26: Repeater Info / Repeater Location / Technical Support / Installer Contact Info
• Repeater Location: Displays the address where the repeater is installed • Technical Support: Displays ADRF’s Technical Support contact information • Installer Contact Info: Displays the installer’s name, phone and e-mail address Note: Once successfully logged in, the repeater model name and the site/cascade ID will be displayed on the top of all the windows (except for the Main Window). -
Page 27: Control Tab
Control Tab Figure 5-9 Control page 5.3.1 General Setting Figure 5-10 General Setting • Downlink HPA ON: Enables or disables the DL HPA (High Power Amplifier) Uplink HPA ON: Enables or disabled the UL HPA (High Power Amplifier) • To enable any of the settings, click on the checkbox and click the Apply button. 5.3.2 System Figure 5-11 System Reboot: Clicking the reboot button will have the following popup show up:... -
Page 28: Snmp Trap
Figure 5-12 Pop-up message when Reboot button is pressed Click OK to reboot the repeater or click Cancel to exit out Factory Setting: Resets the repeater to the original factory settings • Figure 5-13 Pop-up message when Factory Setting button is pressed 5.3.3 SNMP Trap Figure 5-14 SNMP Trap •... -
Page 29: Alarm Setting
5.3.5 Alarm Setting Figure 5-16 Alarm Threshold Setting Downlink Signal Low: Allows the user to specify how low the signal can be before triggering a “Downlink • Signal Low” soft-fail alarm • Downlink Signal Not Detected: Allows the user to specify how low the signal can be before triggering a “Downlink Signal Not Detected”... -
Page 30: Install Tab
Install Tab 5.4.1 Install Figure 5-17 Install page 5.4.2 SNMP Figure 5-18 SNMP The SNMP section allows you to specify the Site ID, Description and Manager IP. The Site-ID is the code that is used to identify a particular module. The Description is separate field for user. The Manager IP field is where the user inputs the IP address of the NOC system that is being used to monitor the SNMP traps. -
Page 31: Remote Ethernet Settings
Figure 5-19 Location Setting 5.4.4 Remote Ethernet Settings This section allows the user to specify an alternative Repeater IP, Subnet Mask, and Gateway settings. These settings are enabled when the Host/Remote switch is set to the Remote position. Figure 5-20 Remote Ethernet Settings 5.4.5 Auto Installation Figure 5-21 Auto Installation The Auto Installation routine can be run by clicking on the Install button. -
Page 32: Date & Time
Repeater Location Info / Repeater Installer Info This section allows the user to specify the address of the repeater and also the information of the installer. Figure 5-22 Repeater Location Info / Repeater Installer Info 5.4.6 Date & Time This section allows the user to specify the current date and time. Figure 5-23 Date &... -
Page 33: System: Account- New Account
The Account Management section allows the Administrator to delete any user account. Please note that the Account Management section is only available if you are logged into the system as the Administrator. To delete a user account click on the Account Management link and under the Delete column, click on the delete button. -
Page 34: Figure 5-28 System- Closeout Package
The closeout package section will allow the user to upload documents to the module. The maximum file size for each upload is limited to 10 MB. The total amount of space available for uploading document is 100 MB. Please do not use this section as the primary storage location of your documents. Documents may become unavailable if the system goes down. -
Page 35: System- User Log
5.5.3 System- User Log This section displays system events that have taken place. The User Log displays who has made the changes, the time and date of when the event took place, and what changes were made to the system. Figure 5-30 System –... -
Page 36: Help
Figure 5-32 System Backup Help If an internet connection is available, clicking on the Help Tab will redirect the user to our Technical Support page. Figure 5-33 Help Logout Clicking the Logout button will log the current user off the system. Advanced RF Technologies, Inc. -
Page 37: Maintenance Guide For Sdrx-43-Btf Repeater
6. MAINTENANCE GUIDE FOR SDRX-43-BTF REPEATER Periodic Inspection Checklist • Check for loose connections between the repeater and antennas. If connections are loose, make sure that all connections are tightly fastened properly. • Cables and connectors are in good condition. -
Page 38: Warranty And Repair Policy
7. WARRANTY AND REPAIR POLICY General Warranty The SDRX-43-BTF carries a Standard Warranty period of two (2) years unless indicated otherwise on the package or in the acknowledgment of the purchase order. Limitations of Warranty Your exclusive remedy for any defective product is limited to the repair or replacement of the defective product. -
Page 39: Specifications
8. SPECIFICATIONS Electrical Specifications Parameters Specifications Comments FCC: 2496~2690 MHz Frequency ISED: 2500~2690 MHz Service Technology 4G LTE/5G NR Maximum Composite Output (DL/UL) +43dBm/+30dBm (Tolerance: ±0.5 dBm) 5/10/15/20/25/30/40/50/60/70/80/ Channel Selection Bandwidth per Filter 90/100 MHz System Gain 55 - 95dB Spurious Emissions Compliance of FCC Regulations Remote Alarm/Network... -
Page 40: Mechanical Drawings
9. MECHANICAL DRAWINGS Figure 9-1 Mechanical Drawings Advanced RF Technologies, Inc. -
Page 41: Appendix
10. APPENDIX 10.1 Shutdown Retry Logic The function of the built-in shutdown routine is to protect the repeater from any further damage from a hard-fail that the system may be experiencing. Within 5 seconds of a hard-fail alarm being detected, the repeater will start the shutdown routine. The repeater will shut down by powering of the HPAs (high-powered amplifiers) for 30 seconds.
