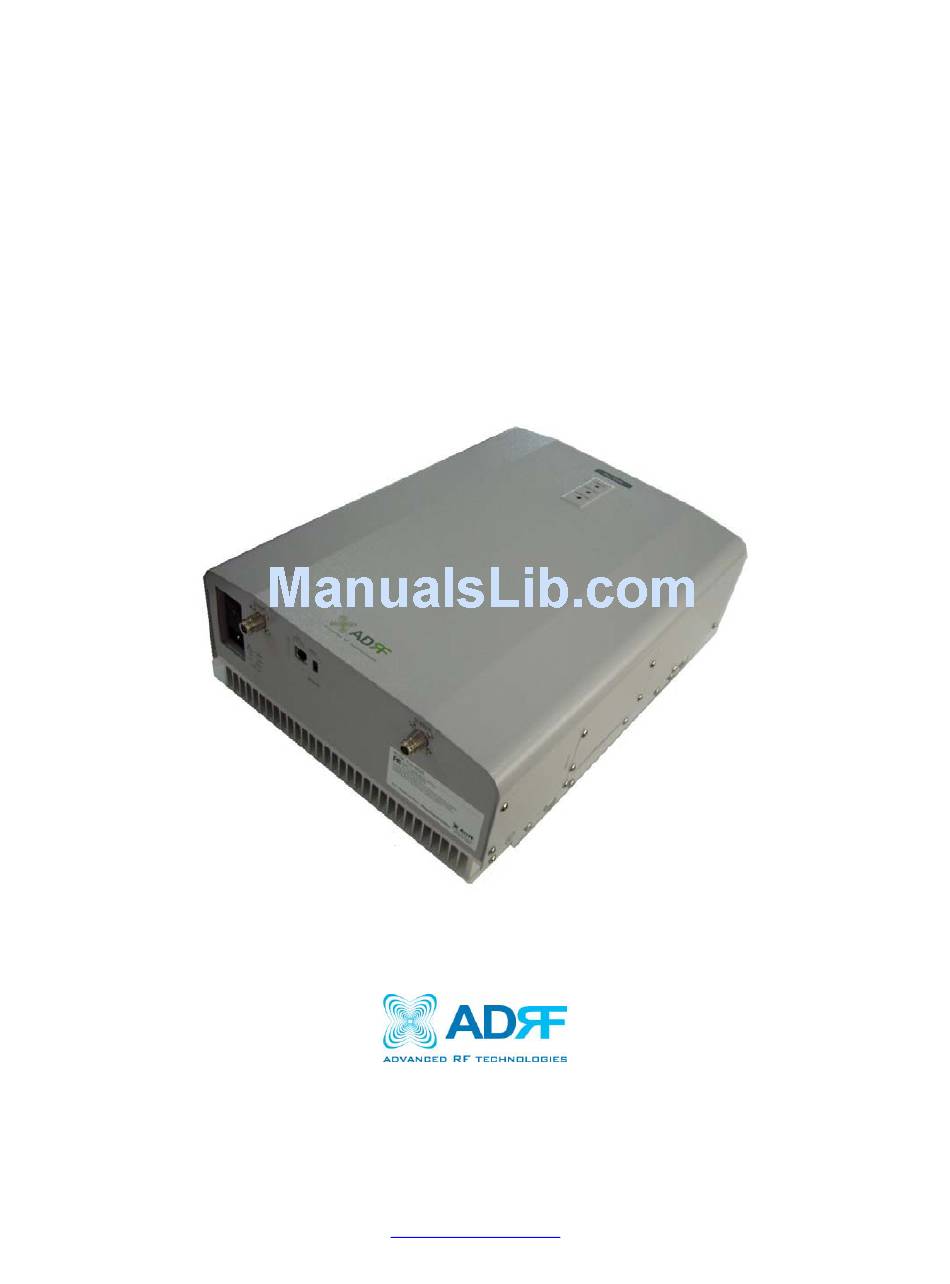

- Page 1 Duo-i6525 ANUAL Version 1.0 2607 Colorado Blvd. Los Angeles, CA 90041 Tel: 323-254-8131 Fax: 323-254-4928 www.adrftech.com...
- Page 2 The following is a list of abbreviations and terms used throughout this document. Abbreviation/Term Definition Automatic Gain Control Automatic Level Control AROMS ADRF’ Repeater Operation and Management System Base Transceiver Station CDMA Code Division Multiple Access Compact Front End Continuous Wave (un-modulated signal)
- Page 3 Duo-i6525 RF Repeater User Manual V1.0 Version 1.0 (Released January 08, 2007) Information in this document is subject to change without notice. Advanced RF Technologies, Inc. 1996-2007. All rights reserved. Please send comments to: E-Mail: info@adrftech.com Phone: (323) 254-8131 Fax:...
-
Page 4: Table Of Contents
2.4.3. Mode Selection Switch ..............13 2.5. Installation ....................14 2.5.1. Tools....................14 2.5.2. Procedure..................14 2.5.3. Grounding ..................16 2.5.4. Antenna Separation/Isolation............17 Duo-i6525 AROMS Setup .................19 Maintenance Guide for Duo-i6525..............26 4.1. Periodic Inspection Checklist ................26 4.2. Preventive Measures for Optimal Operation ............26 4.2.1. Recommendations ................26 4.2.2. Precautions ..................27 Warranty and Repair Policy ................27... -
Page 5: Duo-I6525
1. Duo-i6525 1.1. Introduction Duo-i6525 is a dual band SMR (800 and 900 MHz) RF repeater which enhances in-building wireless coverage in the most effective and cost efficient way. For its intelligent design and versatility, the Duo-i6525 is the ideal choice for wireless coverage problems indoors. - Page 6 Duo-i6525 RF Repeater User Manual V1.0 Figure 1 – Duo-i6525 Repeater Parts List ** CD includes: (1) Duo-i6525 User Manual & (2) Duo-i6525 Quick Start Guide Advanced RF Technologies, Inc. Proprietary Document Page 6 of 31...
-
Page 7: Repeater Quick View
Duo-i6525 RF Repeater User Manual V1.0 1.1.3. Repeater Quick View Power LED (Page 12) Upper Guard Soft Fail LED Screw (Page 14) (Page 12) Hard Fail LED (Page 12) Bracket Screw (Page NMS Modem Lower Guard (Page 10) Screw (Page 14) -
Page 8: Warnings And Hazards
Duo-i6525 RF Repeater User Manual V1.0 1.2. Warnings and Hazards WARNING! ELECTRIC SHOCK Opening the Duo-i6525 could result in electric shock and may cause severe injury. WARNING! EXPOSURE TO RF Working with the repeater while in operation, may expose the technician to RF electromagnetic fields that exceed FCC rules for human exposure. -
Page 9: Duo-I6525 Overview
Duo-i6525 RF Repeater User Manual V1.0 WARRANTY Opening or tampering the Duo-i6525 will void all warranties. 2. Duo-i6525 Overview 2.1. Block Diagram Figure 2 – Duo-i6525 Repeater Block Diagram Advanced RF Technologies, Inc. Proprietary Document Page 9 of 31... -
Page 10: Operation Modes
Internet Browser (Internet Explorer) and the Local Web GUI will be launched through typing the IP address (http://192.168.63.1/home.asp) 2.2.2. Remote NMS (Modem Option) A CDMA wireless modem can be integrated within a Duo-i6525 repeater. With this wireless modem, the user can remotely log into the repeater for monitoring purposes. -
Page 11: Quad-Plexer
Digital Filter Digital Filter Power Supply Figure 3 – Duo-i6525 Repeater Internal Components Diagram 2.3.5. Quad-Plexer It consists of four BPFs (band-pass filters) each of the four RF signal paths: SMR 800 (Tx & Rx) and SMR 900 (Tx & Rx) 2.3.6. -
Page 12: Switches & Indicators
Duo-i6525 RF Repeater User Manual V1.0 2.4. Switches & Indicators 2.4.1. LEDs Duo-i6525 has three LEDs on the top panel of the repeater as show below in Figure 4. Figure 4 – Duo-i6525 Repeater LED View POWER If the LED is lit GREEN, it indicates that there is AC power to the repeater. -
Page 13: Power Switch
The AC Power on/off switch is located on the bottom of repeater. The switch should be powered on after the repeater has been installed properly. Figure 5 – Duo-i6525 Repeater Power Switch View 2.4.3. Mode Selection Switch The Ethernet port and the mode selection switch for DHCP are located on bottom of the repeater as shown below in Figure 5. -
Page 14: Installation
Duo-i6525 RF Repeater User Manual V1.0 Host Mode This mode should be selected only if a Duo-i6525 is used alone without being connected to a collocated Sprint Nextel CDMA repeater functioning as a host. Remote Mode This mode should be selected if a Sprint Nextel CDMA repeater is being installed along with aDuo-i6525 and the ethernet port is being used for communicating with the CDMA repeater. - Page 15 Duo-i6525 RF Repeater User Manual V1.0 Figure 7 – Repeater Mounting Instructions Advanced RF Technologies, Inc. Proprietary Document Page 15 of 31...
-
Page 16: Grounding
Duo-i6525 RF Repeater User Manual V1.0 2.5.3. Grounding The Duo-i6525 has locks on the side of the enclosure preventing from the door opening. In addition, a ground cable is also included in the box and should be connected to repeater. -
Page 17: Antenna Separation/Isolation
63 ~ 65 dB or greater is required. In the same manner, because the Duo-i6525 has a maximum gain of 65 dB, it requires an isolation of at least 78 ~ 80 dB. Advanced RF Technologies, Inc. Proprietary Document... - Page 18 Duo-i6525 RF Repeater User Manual V1.0 2.5.5 Line of Sight The donor antenna which points towards the base station typically has a narrow beam antenna pattern. As a result, a slight deviation away from the direction of the BTS can lead to less than optimum results. In addition, obstacles between the repeater and the BTS may impair the repeater from obtaining any BTS signal.
-
Page 19: Duo-I6525 Aroms Setup
Duo-i6525 RF Repeater User Manual V1.0 3. Duo-i6525 AROMS Setup i) Connect the LAN cable between laptop’s Ethernet port and repeater’ Ethernet port. Note: Under Local Area Connection in Network Settings, make sure to select Obtain an IP address automatically under Internet Protocol (TCP/IP) properties. - Page 20 User Manual V1.0 ii) Launch MS Internet Explorer (Version 6.0 or higher) Note: ADRF’s Web GUI is not compatible with any other web browsers (e.g. Netscape, FireFox, Mozilla, etc.). iii) Please type the following IP address on the address bar of MS Internet Explorer: http://192.168.63.1/home.asp...
- Page 21 Duo-i6525 RF Repeater User Manual V1.0 v) If you click on Status tab, the following window will appear: In this window, the user can view the following: To change any parameters, e.g., iDEN Band, Gain Settings, you have to go to Install or Control Menu.
- Page 22 Repeater Info: Will display repeater’s serial number, modem ESN and MDN. Repeater Location: Will display the address where the repeater is installed Technical Support: Will display ADRF’s Technical Support contact information. Installer Contact Info: Will display the installer’s name, phone and e-mail address.
- Page 23 Duo-i6525 RF Repeater User Manual V1.0 - Downlink HPA on/off (Default mode is On) - Uplink HPA on/off (Default mode is On) - Uplink Tracking mode on/off (Default mode is Off) Manual Gain Control - Downlink Gain Control (40 to 65 dB @ 0.5 dB step, default value: 25 dB) - Uplink Gain Control (40 to 65 dB @ 0.5 dB step, default value: 25 dB)
- Page 24 - SNMP: Type in the assigned site/cascade ID and manager IP address. Default Site ID and Manager IP address is ADRF and 100.10.10.100 respectively. - Repeater: Click Install button to automatically setup the repeater.
- Page 25 Duo-i6525 RF Repeater User Manual V1.0 Only the Super-User can add, delete and modify a user. The following window illustrates how a new user can be added by simply clicking on New Account. The following window illustrates how a new administrator can be added by simply clicking on Administrator.
-
Page 26: Maintenance Guide For Duo-I6525
Update and it’ll upload the latest firmware automatically and close the session. You will need to re-login again. 4. Maintenance Guide for Duo-i6525 4.1. Periodic Inspection Checklist Check for loose connections to the repeater and antennas. If connections are loose, make sure that all connections are tightly fastened properly. -
Page 27: Precautions
5. Warranty and Repair Policy 5.1. General Warranty The Duo-i6525 carries a Standard Warranty period of five (5) years unless indicated otherwise on the package or in the acknowledgment of the purchase order. 5.2. Limitations of Warranty Your exclusive remedy for any defective product is limited to the repair or replacement of the defective product. -
Page 28: Return Material Authorization (Rma)
Duo-i6525 RF Repeater User Manual V1.0 Advanced RF Technologies, Inc. standard warranty does not cover products which have been received improperly packaged, altered, or physically damaged. example, broken warranty seal, labels exhibiting tampering, physically abused enclosure, broken pins on connectors, any modifications made without Advanced RF Technologies, Inc. -
Page 29: Appendix A: Specifications
Duo-i6525 RF Repeater User Manual V1.0 Appendix A: Specifications (1) Electrical Specifications Parameters Specifications Remark 851 ~ 869 MHz or SMR800 DL 862 ~ 869 MHz 806 ~ 824 MHz or SMR800 UL Frequency 817 ~ 824 MHz SMR900 DL... - Page 30 Duo-i6525 RF Repeater User Manual V1.0 (2) Mechanical Specifications Parameters Specifications Remark Dimension 14.13 x 18.92 x 7.59 inch 359 x 480.5 x 192.5 mm Weight < 44 lbs Donor & Server Antenna RF Ports N-type (F) Ports Local Interface...
- Page 31 Duo-i6525 RF Repeater User Manual V1.0 (6) Mechanical Drawings Advanced RF Technologies, Inc. Proprietary Document Page 31 of 31...
