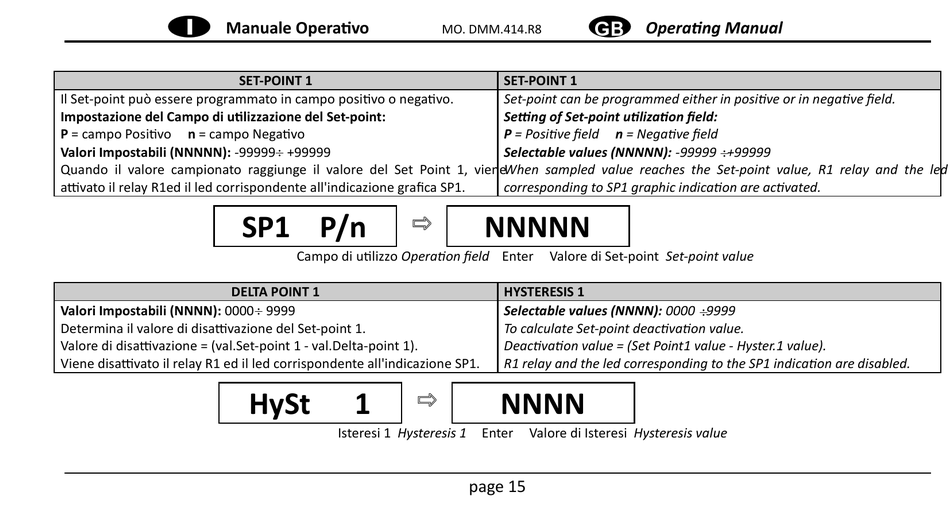

I
Manuale Operativo
Il Set-point può essere programmato in campo positivo o negativo.
Impostazione del Campo di utilizzazione del Set-point:
P = campo Positivo
n = campo Negativo
Valori Impostabili (NNNNN): -99999  +99999
Quando il valore campionato raggiunge il valore del Set Point 1, viene
attivato il relay R1ed il led corrispondente all'indicazione grafica SP1.
DELTA POINT 1
Valori Impostabili (NNNN): 0000  9999
Determina il valore di disattivazione del Set-point 1.
Valore di disattivazione = (val.Set-point 1 - val.Delta-point 1).
Viene disattivato il relay R1 ed il led corrispondente all'indicazione SP1.
SET-POINT 1
SP1 P/n
Campo di utilizzo Operation field Enter
HySt
1
Isteresi 1 Hysteresis 1 Enter
GB
MO. DMM.414.R8
SET-POINT 1
Set-point can be programmed either in positive or in negative field.
Setting of Set-point utilization field:
P = Positive field
n = Negative field
Selectable values (NNNNN): -99999  +99999
When sampled value reaches the Set-point value, R1 relay and the led
corresponding to SP1 graphic indication are activated.
NNNNN
Valore di Set-point Set-point value
HYSTERESIS 1
Selectable values (NNNN): 0000  9999
To calculate Set-point deactivation value.
Deactivation value = (Set Point1 value - Hyster.1 value).
R1 relay and the led corresponding to the SP1 indication are disabled.
NNNN
Valore di Isteresi Hysteresis value
page 15
