3.2

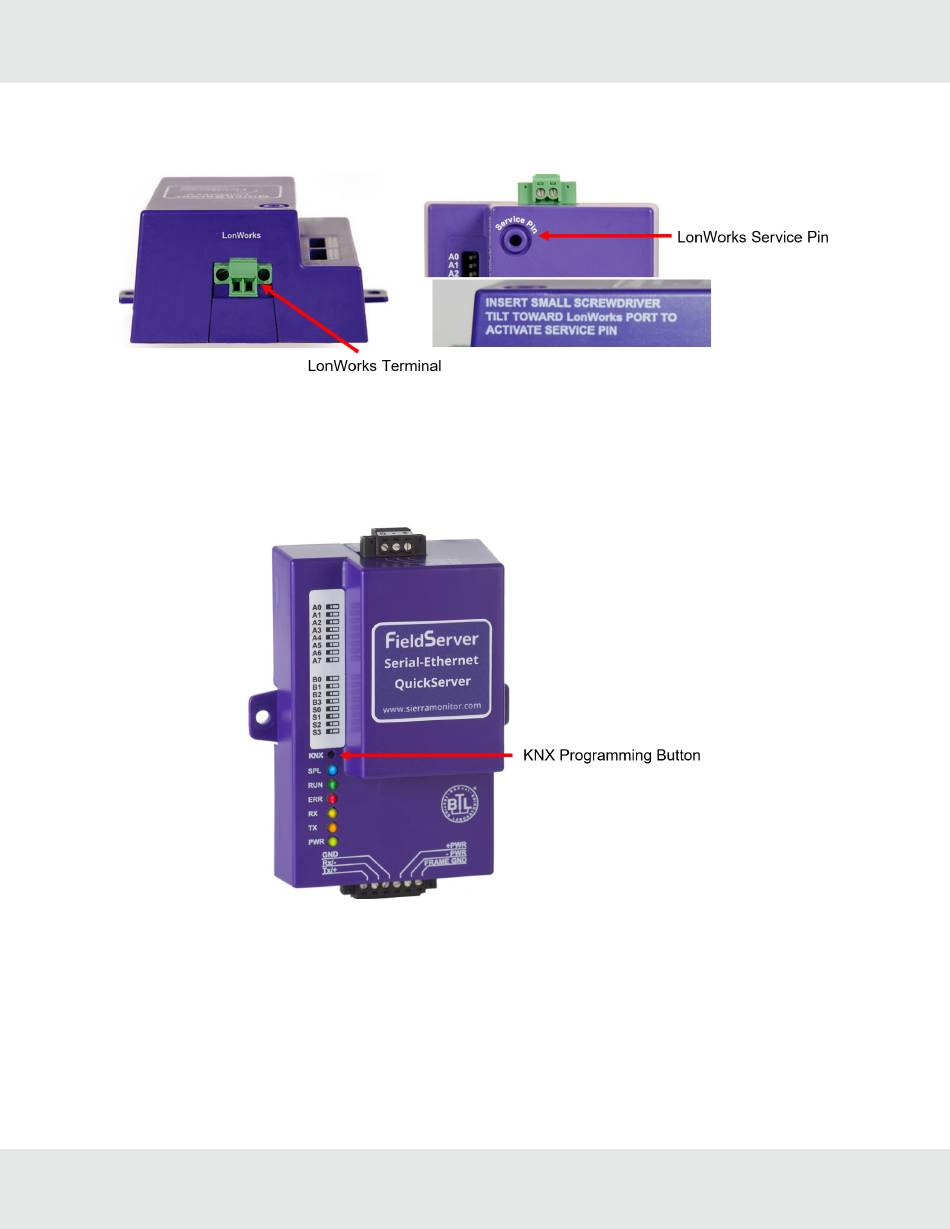

QuickServer LonWorks (FS-QS-1XX1-XXXX)
Connect the QuickServer to the LonWorks terminal using a twisted pair non-shielded cable.
To commission the QuickServer LonWorks port, insert a small screwdriver in the commissioning hole on the face of the
QuickServer's enclosure to access the Service Pin. See the instructions on the QuickServer as to which way to toggle the
screwdriver during commissioning.
3.3
QuickServer KNX (FS-QS-124X-XXXX)
Connect the QuickServer to the KNX bus using the standard KNX twisted pair cable.
To commission the QuickServer as a KNX device in ETS Software, insert a small pin into the KNX commissioning hole on
the face of the QuickServer to access the button.
QuickServer FS-QS-1XXX Start-up Guide
15
