MSA FP Pro User Instructions

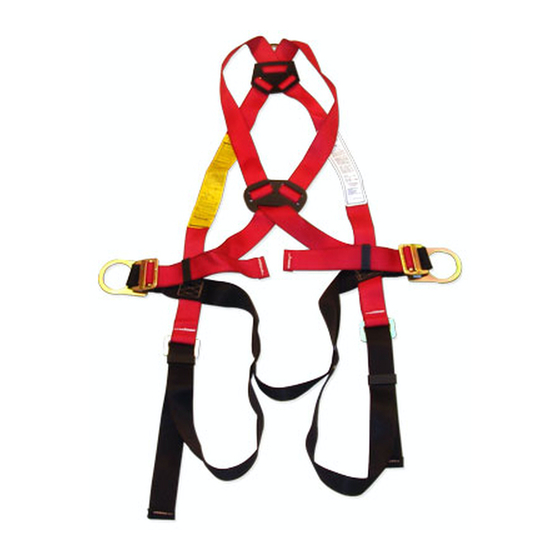

Vest style harness
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FP Pr
FP Pr
FP Pr o Har
FP Pr
FP Pr
National standards and state, provincial and federal laws require the user to
be trained before using this product. Use this manual as part of a user safety
training program that is appropriate for the user's occupation. These in-
structions must be provided to users before use of the product and retained
for ready reference by the user. The user must read, understand (or have
explained), and heed all instructions, labels, markings and warnings sup-
plied with this product and with those products intended for use in associa-
tion with it. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH.
1.0
FP PRO HARNESS SPECIFICATIONS
• Rose FP Pro Harnesses meet ANSI A10.14 and OSHA 29 CFR subpart M, parts 1910 and 1926. "Safety
Standards for Fall Protection in the Construction Industry; Final Rule." These instructions and markings
borne by the harness fulfill the instruction and marking requirements of those standards and regulations.
• D-rings are zinc plated, forged alloy steel and 100% proof tested to 3,600 lbf (16 kN). Minimum breaking
strength is 5,000 lbf (22.2 kN).
• Buckles and adjusters are forged or stamped alloy steel and zinc plated. Minimum breaking strength is
4,000 lbf (17.8 kN).
• Polyester webbing is 1.75 in (44 mm) nominal width with minimum breaking strength of 6,000 lbf (26.7
kN) when new.
• Free fall distance (limit) must not exceed 6 ft (1.8 m) in accordance with OSHA and 5 ft (1.5 m) in
accordance with ANSI A10.14. The user must comply with applicable standards and regulations.
• When used as part of a personal fall arrest system, fall arresting forces must not exceed 1,800 lbf (8 kN).
• Capacity is 310 lb (140 kg) including weight of the user plus clothing, tools and other user-borne objects.
© 2001, Rose Manufacturing Company
o Har
o Har
o Har ness
o Har
User Instructions
Vest Style Harness
!
WARNING
ness
ness
ness
ness
Model Number
P/N 623244, Rev. D

Advertisement

Table of Contents
loading

Related Manuals for MSA FP Pro

Summary of Contents for MSA FP Pro

  • Page 1 FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY OR DEATH. FP PRO HARNESS SPECIFICATIONS • Rose FP Pro Harnesses meet ANSI A10.14 and OSHA 29 CFR subpart M, parts 1910 and 1926. “Safety Standards for Fall Protection in the Construction Industry; Final Rule.” These instructions and markings borne by the harness fulfill the instruction and marking requirements of those standards and regulations.
  • Page 2 P/N 623244, Rev. D TRAINING It is the responsibility of the purchaser of the FP Pro Harness to assure that harness users are made familiar with these User Instructions and trained by a competent person in: (1) workplace hazard awareness and hazard identification, evaluation and control;...
  • Page 3 4.1.1 FALL ARREST ATTACHMENT (1) Also called back D-ring (CSA class A), present on all FP Pro Harnesses. For fall arrest. Use only the back D-ring for connection to the other elements of a personal fall arrest system. The back D-ring may also be used as an attachment element for travel restriction.

  • Page 4: Usage Limitations

    PURPOSE OF FP PRO HARNESS The FP Pro Harness (full body) is primarily a component of a personal fall arrest system. It may also be used for positioning and travel restriction when the appropriate attachments are present. The harness straps are arranged to contain the torso and distribute the forces of fall arrest to the thighs, chest and shoulders of the wearer.
  • Page 5 “UNUSABLE” until destroyed. See sections 11 and 12 for detailed inspection procedures. 5.3.9 IMPACT FORCES Any FP Pro Harness which has been subjected to the forces of arresting a fall must be immediately removed from service and marked as “UNUSABLE” until destroyed. © 2001, Rose Manufacturing Company...

  • Page 6: Systems Requirements

    The FP Pro Harness is one component of multi-component systems. Without the other necessary compo- nents, the harness serves no useful purpose. There are several different types of systems for use at heights and in confined spaces. The FP Pro Harness is suitable for use only in fall arrest and travel restriction systems.

  • Page 7: Planning The Use Of Systems

    Connectors, such as D-rings, snaphooks, and carabiners, must be rated at 5,000 lbf (22 kN) minimum breaking strength. MSA connectors meet this requirement. Connecting hardware must be compatible in size, shape, and strength. Non-compatible connectors may accidentally disengage (“rollout”). Always verify that the connecting snaphook or carabiner and the D-ring on the harness or anchorage connector are compatible.
  • Page 8 User Instructions ! FP Pro Vest Style Harness P/N 623244, Rev. D FREE FALL DISTANCE 1 Free fall distance. Limited to 6 ft (1.8 m) by OSHA. Limited to 5 ft (1.5 m) by ANSI A10.14. 2 Total fall distance. The sum of the free fall distance and deceleration distance.
  • Page 9 User Instructions ! FP Pro Vest Style Harness P/N 623244, Rev. D 7.7 RESCUE AND EVACUATION The user must have a rescue plan and the means at hand to implement it. The plan must take into account the equipment and special training necessary to effect prompt rescue under all foreseeable conditions.

  • Page 10: Care, Maintenance And Storage

    CLEANING INSTRUCTIONS Clean the FP Pro Harness with a solution of water and mild laundry detergent. Dry hardware with a clean cloth and hang harness to air dry. Do not speed drying with heat. Excessive accumulation of dirt, paint, or other foreign matter may prevent proper function of the FP Pro Harness and, in severe cases, weaken the webbing.

  • Page 11: Markings And Labels

    User Instructions ! FP Pro Vest Style Harness P/N 623244, Rev. D 10.0 MARKINGS AND LABELS The following label must be present, legible and securely attached to the FP Pro Harness. © 2001, Rose Manufacturing Company Page 11...

  • Page 12: Inspection Frequency

    11.1 INSPECTION FREQUENCY The FP Pro Harness must be inspected by the user before each use. Additionally, the harness must be inspected by a competent person other than the user at intervals of no more than six months. The competent person inspection is referred to as Formal Inspection.
  • Page 13 12.1 FORMAL INSPECTION FREQUENCY The FP Pro Harness must be formally inspected by a competent person other than the user at intervals of no more than six months. (The qualifications of a competent person are established by OSHA.) If the harness is exposed to severe working conditions, more frequent formal inspections may be required.
  • Page 14 Whenever a defective condition is found enter “FAIL” in the Comments column and explain the condition of the harness. Blank copies of the LOG are available from MSA Rose. Call Toll Free (800) 722-1231. Page 14...
  • Page 15 User Instructions ! FP Pro Vest Style Harness P/N 623244, Rev. D 12.4 INSPECTION DIAGRAM FRONT VIEW OF FP PRO HARNESS *Back D-ring not shown in this view. **Not present on all models 11** 11** © 2001, Rose Manufacturing Company...
  • Page 16 (90) days from the date of repair of the product or sale of the replacement part, whichever occurs first. MSA Rose shall be released from all obligations under this warranty in the event repairs or modifications are made by persons other than its own authorized service personnel or if the warranty claim results from misuse of the product.
