Installing the QuickServer

3.1

RS-485

3.1.1 RS-485 Connection R2 Port

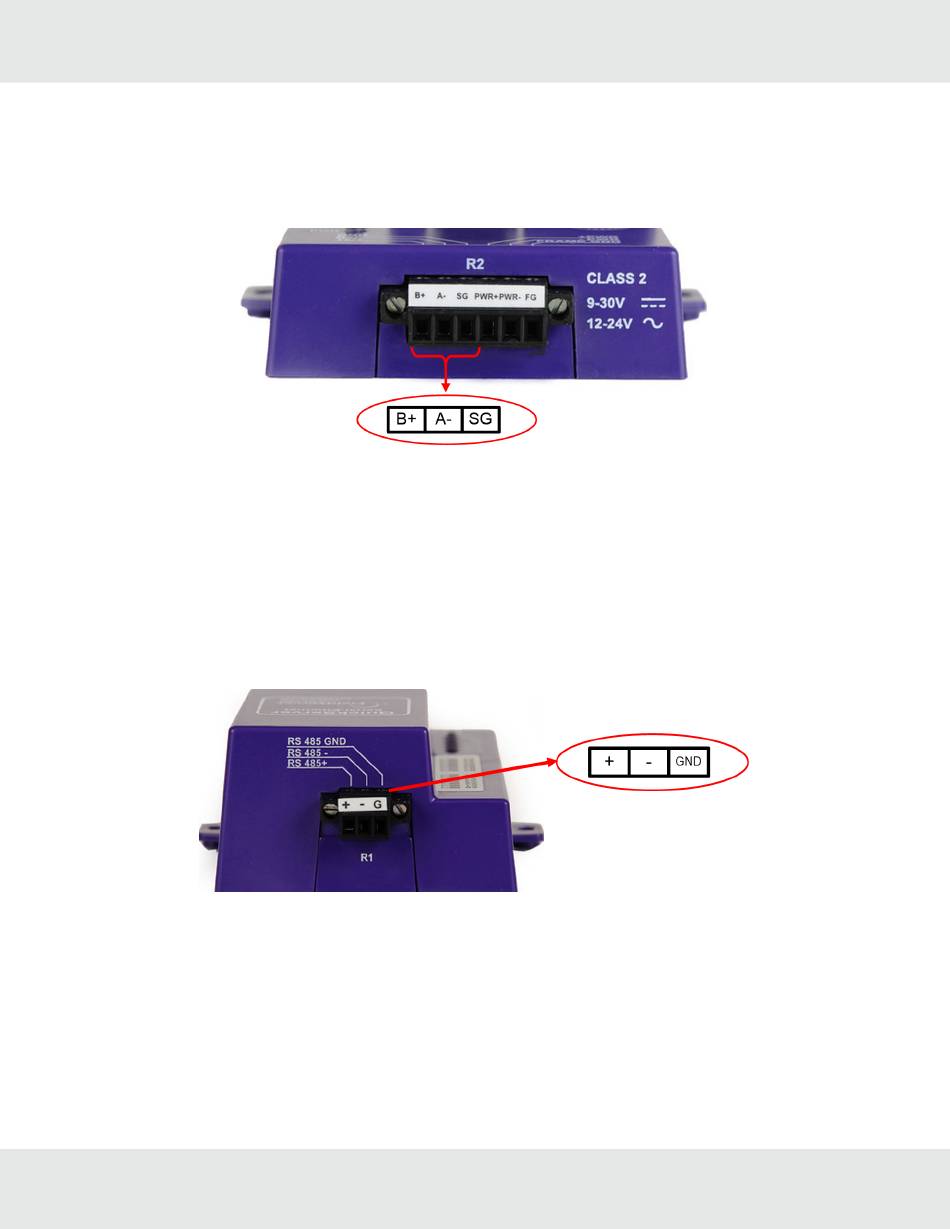

Connect to the 3 pins on the left-hand-side of the 6-pin connector as shown.
The following Baud Rates are supported on the R2 Port:
4800, 9600, 19200, 38400, 57600, 115200
For details on other types of connection ports, refer to Section

3.1.2 RS-485 Connection R1 Port

NOTE: The following only applies to non-LonWorks QuickServers with an RS-485 R1 port.
Connect to the 3-pin connector as shown.
The following Baud Rates are supported on the R1 Port:
110, 300, 600, 1200, 2400, 4800, 9600, 19200, 20833, 28800, 38400, 57600, 76800, 115200
14
10 Additional Model Connection
QuickServer FS-QS-1XXX Start-up Guide
Ports.
