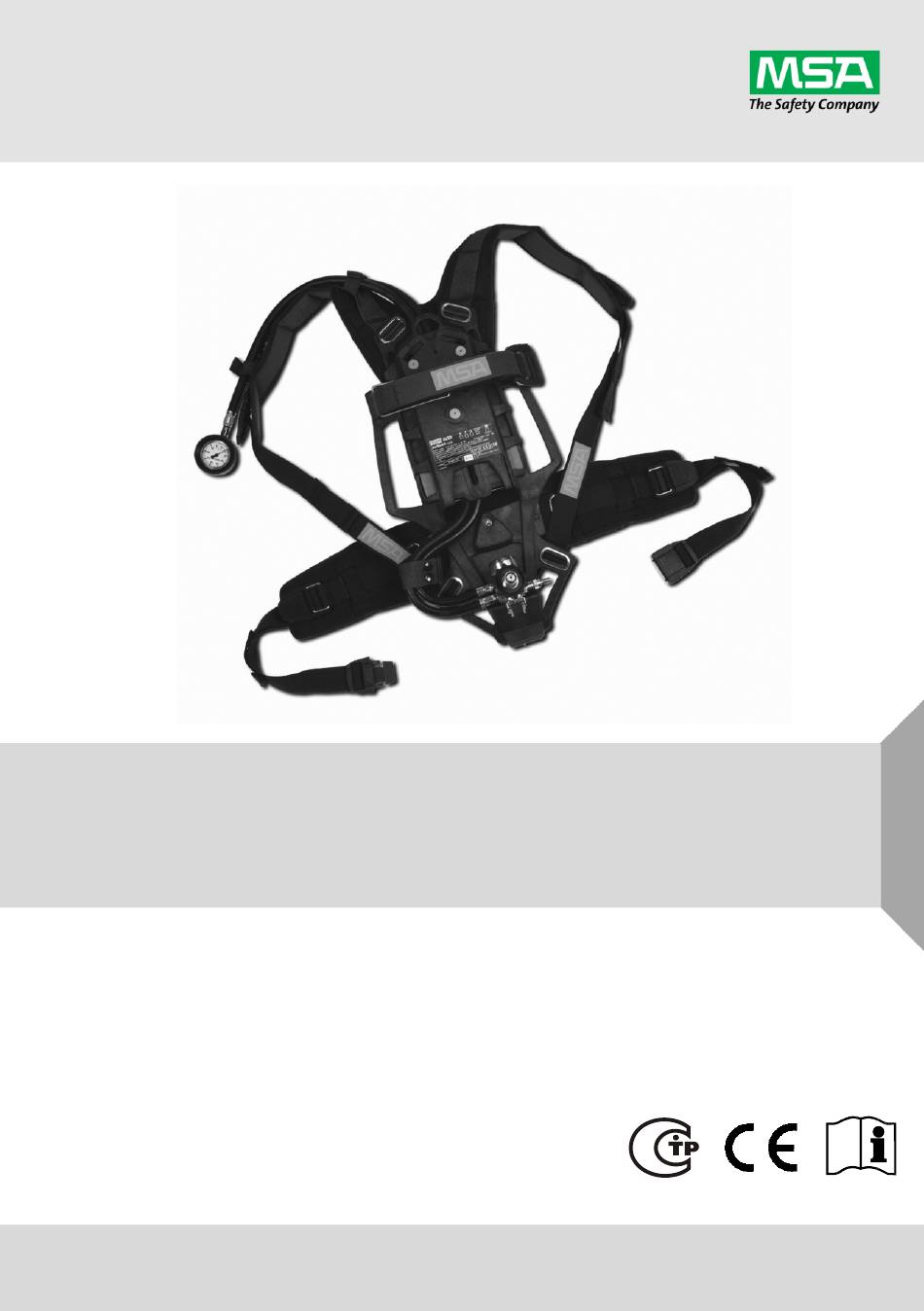

- Page 1 Operating Manual AirMaXX® classic SCBA Basic Apparatus Order N°. 10084770/05...
- Page 2 MSA Europe GmbH Schlüsselstrasse 12 8645 Rapperswil-Jona Switzerland Product of Germany © MSA All rights reserved...
-
Page 3: Table Of Contents
1.1. Correct Use ..................... 5 1.2. Liability Information ..................5 Description ....................... 6 2.1. Standard Model (AirMaXX classic) ..............7 2.2. Model AirMaXX classic S ................9 2.3. Model AirMaXX classic Z ................10 2.4. Model AirMaXX classic-CLICK ..............11 2.4.1. - Page 4 Lung Governed Demand Valve / Full Face Mask.......... 34 Ordering Information ..................... 35 7.1. Compressed Air Cylinders ................35 7.2. Lung Governed Demand Valve ..............35 7.3. Compressed Air Cylinders ................36 7.4. Accessories....................37 7.5. Upgrading Options ..................38 7.6. Work Shop Accessories ................39 AirMaXX classic...
-
Page 5: Safety Regulations
Alternative use, or use outside this specifications will be considered as non- compliance. This also applies especially to unauthorised alterations to the apparatus and to commissioning work that has not been carried out by MSA or authorised persons. Danger! This product supports life and health. -
Page 6: Description

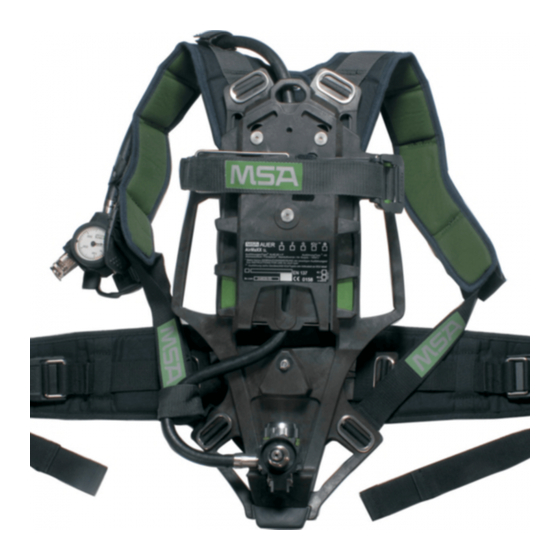

All combinations can also be equipped with the Integrated Control Unit ICU or ICU-S (version with key) instead of the pressure gauge. Retrofitting is possible through MSA or authorized service centres. Fig. 1 AirMaXX classic compressed air breathing apparatus (all options) -
Page 7: Standard Model (Airmaxx Classic)
DESCRIPTION 2.1. Standard Model (AirMaXX classic) The two-piece back plate of the compressed air breathing apparatus is adjustable to three different lengths and should be adjusted to the user's height. The pressure lines passes through the sliding upper part from the pressure reducer to the pressure gauge and medium pressure coupling. - Page 8 It also warns when detecting motionlessness of the user and offers the possibility of activating the alarm manually. Please see for details the Instruction for Use of the ICU. Fig. 3 Integrated Control Unit (ICU) Pressure gauge line connection Pressure gauge RESET button ALARM button Display AirMaXX classic...
-
Page 9: Model Airmaxx Classic S
2.2. Model AirMaXX classic S The compressed air breathing apparatus type AirMaXX classic S is equipped with a signal line. The warning whistle is on a separate signal line near the ear of the user where it can be heard well and easily identified as his own warning signal. -
Page 10: Model Airmaxx Classic Z
2.3. Model AirMaXX classic Z The compressed air breathing apparatus type AirMaXX classic Z is equipped with a second medium pressure connection. Thus is fitted on the left side of the shoulder. It has a safety coupling which can be protected against dirt with a stopper. -
Page 11: Model Airmaxx Classic-Click
DESCRIPTION 2.4. Model AirMaXX classic-CLICK The difference between this model and the standard model is the modified pressure reducer, the constituent part of the alphaCLICK 2 coupling system. Fig. 6 Pressure reducer 1 alphaCLICK 2 coupling alphaCLICK 2 permits the easy, quick and safe connection of the compressed air cylinder to the pressure reducer. -
Page 12: Alphaclick 2 Coupling 300 Bar
2.4.2. alphaCLICK 2 Cylinder Adaptor 300 bar Fig. 8 alphaCLICK 2 cylinder adaptor 300 bar alphaCLICK 2 cylinder adaptor 300 bar The cylinder adaptor has to be screwed into a cylinder valve with a specific torque of 20-30 Nm. AirMaXX classic... -
Page 13: Model Airmaxx Exxtreme Classic
It is also available as the standard model and in the -S, -Z and all combinations thereof. 2.6. AirMaXX classic Combinations Of course all combinations of the above mentioned versions are possible. Retrofitting is possible through MSA or authorized service centres. AirMaXX classic... -
Page 14: Technical Data
MANUFACTURER PRODUCT DECLARATION, see appendix. Type Approval Certificate of Russian Maritime Register of Shipping *) There are given maximum dimensions, which are possible. The Declaration of Conformity can be found under the following link: https://MSAsafety.com/DoC AirMaXX classic... -
Page 15: Using The Compressed Air Breathing Apparatus
SCBA is used. (2) Thread the handwheel into the cylinder thread. The handwheel should be hand-tight (no tools should be used). 3.2. Connecting One Compressed Air Cylinder Fig. 9 SCBA apparatus with one compressed air cylinder AirMaXX classic... -
Page 16: Pressure Reducer With Thread Connection
(3) Check gasket on pressure reducer high pressure socket for proper condition. (4) Open tension clamp on cylinder strap eliminating any tension by extending the strap to full length pulling the small bar at the tension clamp ( Fig. 11). Fig. 11 Opening the tension clamp AirMaXX classic... - Page 17 ( Fig. 12). Fig. 12 Readjusting the strap length at the tension clamp (12) Fasten end of the cylinder retaining strap onto Velcro strip. (13) Briefly open cylinder valve and check for escaping air, retighten if necessary. AirMaXX classic...
-
Page 18: Pressure Reducer With Alphaclick 2
• If the cylinder valve is damaged, remove from service and return it to a MSA trained or certified repair technician. (2) Inspect the external threads of the cylinder adaptor and the nipple of the male connector on the pressure reducer to ensure they are not damaged and free of dirt and debris. -
Page 19: Connecting One Compressed Air Cylinder
If the strap tension is too low, re-adjust the strap length at the tension clamp ( Fig. 12). (12) Fasten end of the cylinder retaining strap onto Velcro strip. (13) Briefly open cylinder valve and check for escaping air, re-tighten if necessary. AirMaXX classic... -
Page 20: Connecting Two Compressed Air Cylinders
(8) Loosely thread the second cylinder valve onto the T-piece. With right-angled T-piece, align the compressed air cylinders by hinging the pressure reducer and pulling the cylinders together (see Operating Manual for T-pieces). (9) Tighten all three high pressure connection handwheels. AirMaXX classic... -
Page 21: Pressure Reducer With Alphaclick 2
In this case, support the pressure reducer with your hand. (8) Align the T-piece with the alphaCLICK 2 axially to the coupling and fit on the alphaCLICK 2 coupling. Attention! Never push the coupling system together using excessive force. AirMaXX classic... -
Page 22: Adjusting The Back Plate
(1) Check all components of the compressed air breathing apparatus for defects and malfunctions. (2) Don breathing apparatus with shoulder straps fully extended. (3) Close hip belt and tighten loose ends. (4) Tighten shoulder straps until back plate fits comfortably AirMaXX classic... -
Page 23: Donning The Full-Face Mask
Warning! When rescuing persons with the rescue set via the Second Connection, more air is consumed. Hence, the service time is considerably reduced. Always keep this in mind when using your apparatus. AirMaXX classic... -
Page 24: Removing The Compressed Air Breathing Apparatus
This could accidentally open the cylinder valve. (5) Lift compressed air cylinder(s) at the valve and pull out of cylinder strap. (6) Close high pressure connection cylinder valve (s) with protection plug(s). AirMaXX classic... -
Page 25: Pressure Reducer With Alphaclick 2
Do not remove the compressed air cylinder(s) from the cylinder strap or transport the compressed air cylinder(s) by the handwheel. This could accidentally open the cylinder valve. (5) Lift compressed air cylinder(s) at the valve and pull out of cylinder strap. AirMaXX classic... -
Page 26: Maintenance And Care Of The Scba
Always use original parts from MSA. Repairs and maintenance must be carried out only by authorised service centres or by MSA. Changes to devices or components are not permitted and could result in loss of approved status. -
Page 27: Maintenance Intervals
4.3.2. Cleaning, light Soiling (1) Remove compressed air cylinder(s) ( Section 3.11). (2) Clean compressed air breathing apparatus manually using a brush, damp cloth or similar. (3) Dry apparatus completely in a drying cabinet at max. 60°C. AirMaXX classic... -
Page 28: Cleaning, Heavy Soiling
U-Clip and hoses are not to be removed after removing the pressure reducer. (11) Set slide carrying plate to smallest position, push lock and take out the slide plate. (12) Clean back plate with cylinder strap at max. 60°C. AirMaXX classic... -
Page 29: Instruction For Assembling The Pressure Reducer
270 bar for 200 bar cylinders: minimum 180 bar (5) Close cylinder valves. • After 60 seconds the pressure drop in the pressure gauge must not exceed 10 bar. (6) Check warning device (signal whistle) ( Section 4.6). AirMaXX classic... -
Page 30: Warning Device Check
Visually check the O-ring of the cylinder connector in the pressure reducer. Replace if damaged. 4.8. Overhaul The overhaul of the pressure reducer may only be performed by MSA or an authorised service centre. Attention! Pressure reducers are completed with a lead seal. Where the lead seal is missing or damaged, it cannot be guaranteed that they are ready for use or that they correspond to the approval status. -
Page 31: Compressed Air Cylinders With Alphaclick 2
(1) Check that the cylinder valve is closed. (2) Screw the alphaCLICK 2 cylinder adaptor with a specific torque of 20-30 Nm into the cylinder valve. AirMaXX classic... -
Page 32: Filling Of Compressed Air Cylinders With Alphaclick 2
This can cause damage to persons and objects. (1) Release pressure from the filling panel. (2) Remove the blind plug from the alphaCLICK 2 coupling on the filling panel. (3) Attach the compressed air cylinder to the alphaCLICK 2 coupling and open the cylinder valve. AirMaXX classic... - Page 33 • The cylinder adaptor is released from the alphaCLICK 2 filling coupling. (8) Remove compressed air cylinder from the alphaCLICK 2 filling coupling. (9) Secure the alphaCLICK 2 filling coupling with blind plug. AirMaXX classic...
-
Page 34: Accessories
6.2. Lung Governed Demand Valve / Full Face Mask The base units of the AirMaXX series are provided for use with various MSA lung governed demand valves and full face masks. A list of compatible devices is given under Section 7.2. -
Page 35: Ordering Information
Ordering Information 7.1. Compressed Air Cylinders Description Part No. Compressed Air Cylinders, Steel Basic Apparatus AirMaXX classic 10084764 Basic Apparatus AirMaXX classic ATO code (assembly to order) 7.2. Lung Governed Demand Valve Description Part No. Normal Pressure AutoMaXX N 10023686... -
Page 36: Compressed Air Cylinders
10055167 6,9 l/300 bar, empty 10055168 6,9 l/300 bar, filled, with ratchet valve 10055169 6,9 l/300 bar, empty, with ratchet valve 10055170 6,9 l/300 bar, filled, with flow restrictor 10072889 6,9 l/300 bar, empty, with flow restrictor 10072888 AirMaXX classic... -
Page 37: Accessories
Lanyard 10151242 alphaFP basic, standard 10116510 alphaFP basic, large 10117620 alphaFP pro, standard 10116541 alphaFP pro, large 10117573 Small connector loop for SCBA harnesses 10151249 Adaptor quick release buckle to SCBA, 2x 10151248-SP Tri-Lock steel carabiner 10157585 AirMaXX classic... -
Page 38: Upgrading Options
(incl. alphaCLICK 2 coupling set 300 bar, pressure reducer, manifold & SingleLine in exchange for your old SCBA pneumatics Upgrade Set: alphaCLICK 2 300 bar In case you want to upgrade your existing MSA pneumatics with alphaCLICK 2. alphaCLICK 2 coupling set 300 bar... -
