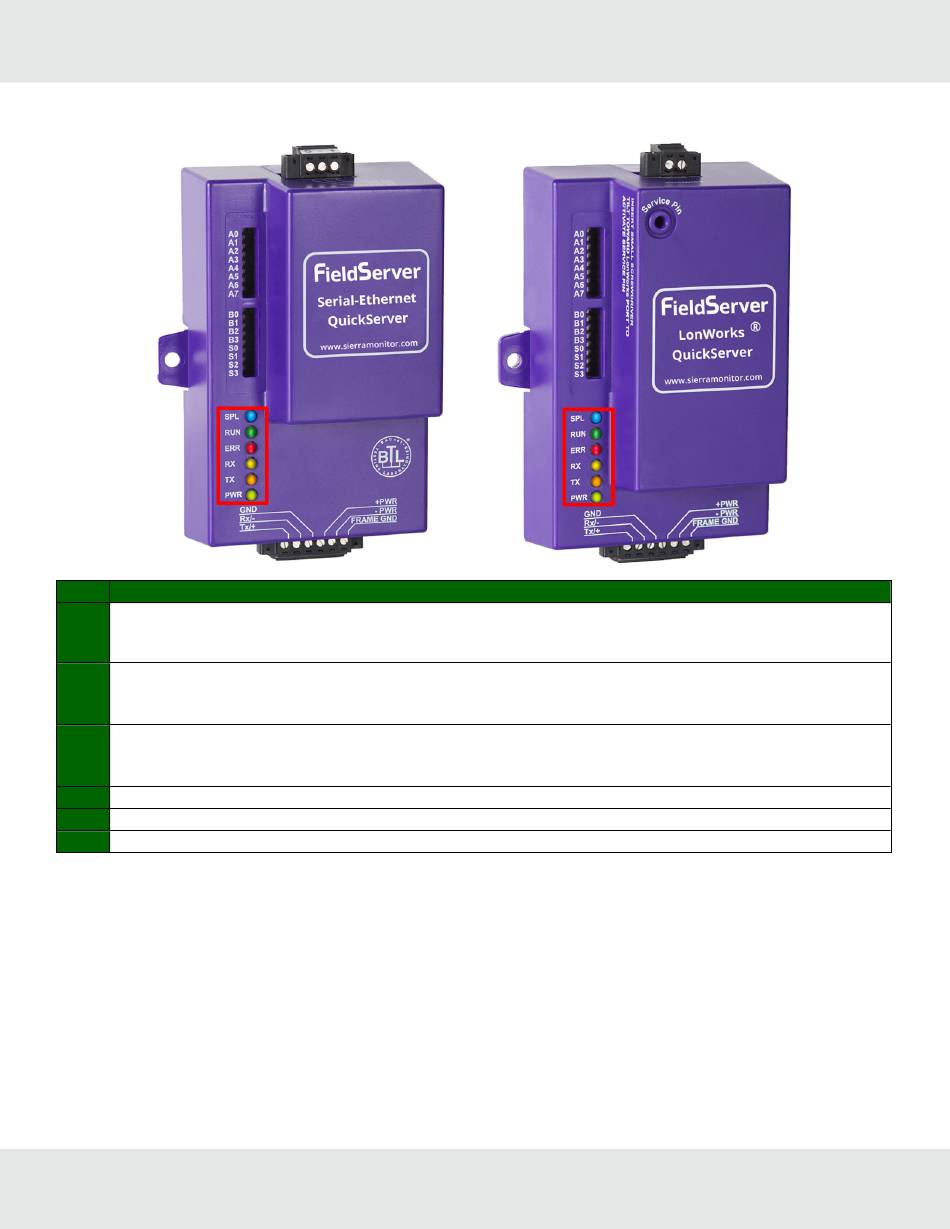

11.3 LED Functions

Light
SPL LED will be on when a configured node in the QuickServer is detected as being offline. For details, check the
SPL FS-GUI Node overview screen in FS-GUI (click "View" then "Nodes").
For LonWorks units, LED will light until the unit is commissioned on the LonWorks network.
RUN LED will flash 20 seconds after power up, signifying normal operation. The QuickServer will be able to access
RUN the FS- GUI (refer to Section
flashing. During the first 20 seconds, the LED should be off.
The ERR LED will go on solid 15 seconds after power up. It will turn off after 5 seconds. A steady red light will
ERR indicate there is a system error on the FieldServer. If this occurs, immediately report the related "system error"
shown in the error screen of the FS-GUI interface to FieldServer support for evaluation.
RX On normal operation, the RX LED will flash when a message is received on the field port.
TX On normal operation, the TX LED will flash when a message is sent on the field port.
PWR This is the power light. It should always show a steady green light when powered.
