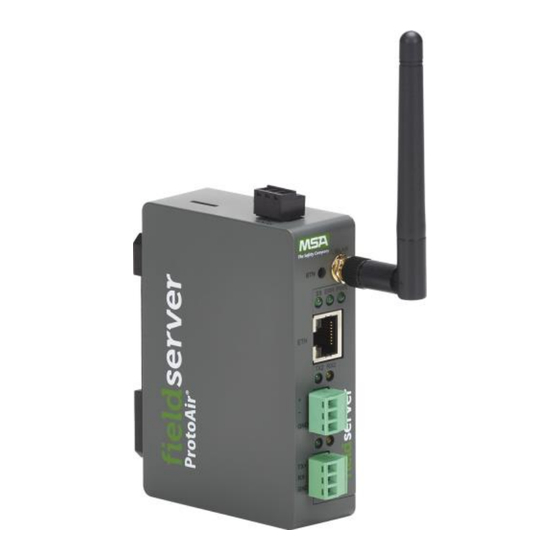

MSA fieldserver ProtoAir FPA-W44 Operating Manual

Hide thumbs Also See for fieldserver ProtoAir FPA-W44:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Manual
ProtoAir FPA-W44 for Interfacing Cooper Lighting Solutions
Products
Revision: 1.E
Document No.: CN1757
Print Spec: 10000005389 (F)
MSAsafety.com

Advertisement

Table of Contents
loading

Related Manuals for MSA fieldserver ProtoAir FPA-W44

Summary of Contents for MSA fieldserver ProtoAir FPA-W44

  • Page 1 Operating Manual ProtoAir FPA-W44 for Interfacing Cooper Lighting Solutions Products Revision: 1.E Document No.: CN1757 Print Spec: 10000005389 (F) MSAsafety.com...
  • Page 2 Thank you for purchasing the ProtoAir for Cooper Lighting Solutions. Please call Cooper Lighting Solutions for technical support of the ProtoAir product. MSA Safety does not provide direct support. If Cooper Lighting Solutions needs to escalate the concern, they will contact MSA Safety for assistance.
  • Page 3 Quick Start Guide 1. Record the information about the unit. (Section 2.1 Record Identification Data) 2. Check that the ProtoAir and customer device COM settings match. (Section 2.3 Configuring Device Communications) 3. If using a serial field protocol: Connect the ProtoAir 3 pin RS-485 R2 port to the field protocol cabling (Section 3.1 Wiring Field Port to RS-485 Serial Network).

  • Page 4: Table Of Contents

    Contents Introduction ProtoAir Gateway Setup for ProtoAir Record Identification Data Point Count Capacity and Registers per Device Configuring Device Communications Interfacing ProtoAir to Devices Wiring Field Port to RS-485 Serial Network Bias Resistors Termination Resistor Power up the Gateway Connect the PC to the Gateway Connecting to the Gateway via Ethernet 5.1.1 Changing the Subnet of the Connected PC Navigate to the Login Page...
  • Page 5 12.4 Internet Browser Software Support 12.5 Factory Reset Instructions 12.6 LED Functions 12.7 Taking a FieldServer Diagnostic Capture 12.8 Kaspersky Endpoint Security 10 Additional Information 13.1 Update Firmware 13.2 BACnet: Setting Network_Number for More Than One ProtoAir on the Subnet 13.3 Mounting 13.4...

  • Page 6: Introduction

    FPA-W44 Connectivity Diagram: The ProtoAir can connect with the MSA Grid – FieldServer Manager. The FieldServer Manager allows technicians, the OEM's support team and MSA Safety's support team to remotely connect to the ProtoAir. The FieldServer Manager provides the following capabilities for any registered devices in the field: •...

  • Page 7: Setup For Protoair

    Setup for ProtoAir Record Identification Data Each ProtoAir has a unique part number located on the side or the back of the unit. This number should be recorded, as it may be required for technical support. The numbers are as follows: Model Part Number ProtoAir FPA-W44-1757...

  • Page 8: Configuring Device Communications

    Configuring Device Communications • The device needs to be on the same IP subnet as the ProtoAir and the configuration PC. • Record the following device information for Greengate and WaveLinx Wired setup: ◦ IP Address ◦ IP port ◦ Panel Address (Greengate only) ◦...

  • Page 9: Interfacing Protoair To Devices

    Interfacing ProtoAir to Devices Wiring Field Port to RS-485 Serial Network • Connect the RS-485 network wires to the 3-pin RS-485 connector on the R2 port. ◦ RS-485 is part of the RS-485 interface and must be connected to the corresponding terminal on the BMS. If the cable is shielded, the shield must connected only at one end and to earth ground –...

  • Page 10: Bias Resistors

    Bias Resistors To enable Bias Resistors, move both the BIAS- and BIAS+ DIP switches to the right in the orientation shown above. The bias resistors are used to keep the RS-485 bus to a known state, when there is no transmission on the line (bus is idling), to help prevent false bits of data from being detected.

  • Page 11: Termination Resistor

    Termination Resistor If the gateway is the last device on the serial trunk, then the End-Of-Line Termination Switch needs to be enabled. To enable the termination resistor, move the TERM dip switch to the right in the orientation shown in above. The termination resistor is also used to reduce noise.

  • Page 12: Power Up The Gateway

    Power up the Gateway Check power requirements in the table below: Power Requirement for ProtoAir External Gateway Current Draw Type ProtoAir Family 12VDC 24VDC/AC FPA –W44 (Typical) 250mA 125mA NOTE: These values are ‘nominal’ and a safety margin should be added to the power supply of the host system. A safety margin of 25% is recommended.

  • Page 13: Connect The Pc To The Gateway

    Connect the PC to the Gateway Connecting to the Gateway via Ethernet Connect a Cat-5 Ethernet cable (straight through or cross-over) between the local PC and ProtoAir. 5.1.1 Changing the Subnet of the Connected PC The default IP Address for the ProtoAir is 192.168.1.24, Subnet Mask is 255.255.255.0. If the PC and ProtoAir are on different IP networks, assign a static IP Address to the PC on the 192.168.1.xxx network.

  • Page 14: Setup Web Server Security

    Setup Web Server Security Login to the FieldServer The first time the FieldServer GUI is opened in a browser, the IP Address for the gateway will appear as untrusted. This will cause the following pop-up windows to appear. • When the Web Server Security Unconfigured window appears, read the text and choose whether to move forward with HTTPS or HTTP.
  • Page 15 • Additional text will expand below the warning, click the underlined text to go to the IP Address. In the example below this text is “Proceed to <FieldServer IP> (unsafe)”. • When the login screen appears, put in the Username (default is “admin”) and the Password (found on the label of the FieldServer).

  • Page 16: Select The Security Mode

    Select the Security Mode On the first login to the FieldServer, the following screen will appear that allows the user to select which mode the FieldServer should use. NOTE:    Cookies are used for authentication. NOTE:    To change the web server security mode after initial setup, go to Section 13.6 Change Web Server Security Settings After Initial Setup.

  • Page 17: Https With Own Trusted Tls Certificate

    6.2.1 HTTPS with Own Trusted TLS Certificate This is the recommended selection and the most secure. Please contact your IT department to find out if you can obtain a TLS certificate from your company before proceeding with the Own Trusted TLS Certificate option. •...

  • Page 18: Setup Network

    Setup Network From the Web Configurator landing page, click the Network Settings tab to open the Network Settings page for the ProtoAir. Cooper Lighting Solutions ProtoAir Guide...

  • Page 19: Routing Settings

    Routing Settings The Routing settings make it possible to set up the IP routing rules for the FieldServer’s internet and network connections. • Click the Add Rule button to add a new row and set a new Destination Network, Netmask and Gateway IP Address as needed.

  • Page 20: Select System

    Select System The Select System Page will appear the first time the FieldServer is accessed. • Select the desired protocol. • The Web Configurator landing page will now appear. NOTE: If the wrong protocol was selected, click the Switch Product tab to reset the GUI and go back to the Select System Page.

  • Page 21: Configure The Protoair

    Configure the ProtoAir Select BMS Protocol and Configure Settings • Click back to the Discovery & Configuration tab, and click the BMS Settings button to view or edit the Building Management System (BMS) Settings. • Select the appropriate protocol and edit the settings as needed. •...

  • Page 22: Set Device Instance For Any Lighting Panel Attached To The Device

    9.1.1 Set Device Instance for Any Lighting Panel Attached to the Device The Device Instance can be set independently of the site administrator. As an example: • A Device Instance is a BACnet Node-ID which is obtained by the network administrator. •...

  • Page 23: Bacnet Ms/Tp: Setting The Mac Address Bacnet Network

    9.1.2 BACnet MS/TP: Setting the MAC Address BACnet Network • Only 1 MAC address is set for ProtoAir regardless of how many light panels are connected to ProtoAir. • Set the BACnet MS/TP MAC address of the ProtoAir to a value between 1 to 127 (MAC Master Addresses); this is so that the BMS Front End can find the ProtoAir via BACnet discovery.

  • Page 24: Greengate/Wavelinx: Discover And Configure Light Panels Connected To The Gateway

    Greengate/WaveLinx: Discover and Configure Light Panels Connected to the Gateway • For Greengate, click on the “Start Discovery” button to enter the port, network address, panel address and number of panels for the device. • For WaveLinx Wired, click on the “Start Discovery” button to enter the port, network address and Virtual Item file to load for the device.
  • Page 25 ◦ After entering the device details, click on the “Start Discovery” button and the discovery progress bar will display ◦ Discovering a device may take a few minutes depending on the number of items it contains • After the discovery process is complete, the device tree will appear. •...
  • Page 26 ◦ By clicking on a light panel, parameters for that panel will be shown ◦ Clicking on a light displays and allows editing of the preconfigured BACnet parameters • Once the items for configuration are chosen, click on the “Save Configuration” button. The save configuration progress bar will appear.
  • Page 27 • When this process is complete, the items on the tree will change to black to show that they have been configured. • In order to clear a configuration, click on the “Clear Configuration” button. An additional option to clear all other device configurations will appear.

  • Page 28: Fifth Light: System Status

    Fifth Light: System Status NOTE: Fifth Light configuration must be done on the Fifth Light panel. For Instructions, refer to the Cooper Lighting Solutions Fifth Light Panel manual. The ProtoAir allows BMS settings to be changed (BBMD settings, Public IP Address, Public IP Port, Router Network Number, Network Number and IP Port) and Fifth Light Panel system information to be reviewed.

  • Page 29: Bacnet: Setting Device Instance Offset To Assign Specific Device Instances

    BACnet: Setting Device Instance Offset to Assign Specific Device Instances • Follow the steps outlined in Section 6 Setup Web Server Security to access the ProtoAir Web Configurator. • The Device Instance Offset field shows the current value (default = 80,001). ◦...

  • Page 30: Using The Embedded Bacnet Explorer

    Using the Embedded BACnet Explorer The embedded BACnet Explorer allows installers to validate that their equipment is working on BACnet without having to ask the BMS integrator to test the unit. • To access the embedded BACnet Explorer, go to the FS-GUI page and click the Explorer button. NOTE:    For BACnet/IP, click on the Settings button on the left side of the landing page to ensure the ProtoAir is on the BACnet/IP network subnet to configure BBMD.

  • Page 31: Discover The Device List

    11.1 Discover the Device List • From the BACnet Explorer landing page, click on the BACnet Explorer tab on the left side of the screen to go to the BACnet Explorer page. • Find devices connected to the same subnet as the gateway by clicking the Discover button (binocular icon).

  • Page 32: View Device Details And Explore Points/Parameters

    Allow the devices to populate before interacting with the device list for optimal performance. Any discovery or explore process will cause a green message to appear in the upper right corner of the browser to confirm that the action is complete. 11.2 View Device Details and Explore Points/Parameters •...
  • Page 33 • To view the full details of a device, highlight the device directly (in the image below – “1991 WeatherLink_1”) and click the Explore button (  ) that appears to the right of the highlighted device as a magnifying glass icon or double-click the highlighted device.
  • Page 34 • Then click on the Explore button that appears or double-click the device object. A full list of the device details will appear on the right side window. If changes are expected since the last explore, simply press the Refresh button (  ) that appears to right of individual properties to refresh. NOTE:    The Gateway Search Bar will find devices based on their Device ID.

  • Page 35: Edit The Present Value Field

    11.2.1Edit the Present Value Field The only recommended field to edit is the device’s present value field. NOTE:    Other BACnet properties are editable (such as object name, object description, etc.); however, this is not recommended because the gateway is not a Building Management System (BMS). •...
  • Page 36 • Enter the appropriate change and click the Write button. The window will close. When the BACnet Explorer page appears, the present value will be changed as specified. Cooper Lighting Solutions ProtoAir Guide...

  • Page 37: Troubleshooting

    12.1 Lost or Incorrect IP Address • Ensure that FieldServer Toolbox is loaded onto the local PC. Otherwise, download the FieldServer-Toolbox.zip via the MSA Safety website. • Extract the executable file and complete the installation. • Connect a standard Cat-5 Ethernet cable between the user’s PC and ProtoAir.

  • Page 38: Viewing Diagnostic Information

    12.2 Viewing Diagnostic Information • Type the IP Address of the FieldServer into the web browser or use the FieldServer Toolbox to connect to the FieldServer. • Click on Diagnostics and Debugging Button, then click on view, and then on connections. •...

  • Page 39: Checking Wiring And Settings

    12.3 Checking Wiring and Settings No COMS on the Ethernet side. To fix this problem, check the following: • Visual observations of LEDs on the ProtoAir. (Section 12.6 LED Functions) • Check device address. • Verify wiring. • Verify the device was discovered (Section 9 Configure the ProtoAir).

  • Page 40: Led Functions

    12.6 LED Functions Description The SS LED will flash once a second to indicate that the bridge is in operation. The SYS ERR LED will go on solid indicating there is a system error. If this occurs, immediately report the related “system error”...

  • Page 41: Taking A Fieldserver Diagnostic Capture

    12.7 Taking a FieldServer Diagnostic Capture When there is a problem on-site that cannot easily be resolved, perform a Diagnostic Capture before contacting support. Once the Diagnostic Capture is complete, email it to technical support. The Diagnostic Capture will accelerate diagnosis of the problem. •...

  • Page 42: Kaspersky Endpoint Security

    12.8 Kaspersky Endpoint Security 10 If Kaspersky Endpoint Security 10 is installed on the user’s PC, the software needs to be modified to allow the PC to register bridges on the FieldServer Manager. NOTE:    This problem is specific to KES10, Kaspersky 2017 does not have this problem. To fix the problem, the ProtoAir (see http://192.168.100.85/* in the 2 image below) must be set as a trusted URL to the "Web Anti-Virus"->"Settings"...

  • Page 43: Additional Information

    Additional Information 13.1 Update Firmware To load a new version of the firmware, follow these instructions: 1. Extract and save the new file onto the local PC. 2. Open a web browser and type the IP Address of the FieldServer in the address bar. ◦...

  • Page 44: Mounting

    13.3 Mounting The gateway can be mounted using the DIN rail mounting bracket on the back of the unit. 13.4 Certification BTL Mark – BACnet Testing Laboratory The BTL Mark on the FieldServer is a symbol that indicates that a product has passed a series of rigorous tests conducted by an independent laboratory which verifies that the product correctly implements the BACnet features claimed in the listing.

  • Page 45: Physical Dimensions

    13.5 Physical Dimensions Cooper Lighting Solutions ProtoAir Guide...

  • Page 46: Change Web Server Security Settings After Initial Setup

    13.6 Change Web Server Security Settings After Initial Setup NOTE:    Any changes will require a FieldServer reboot to take effect. • Navigate to the FS-GUI page. • Click Setup in the Navigation panel. Cooper Lighting Solutions ProtoAir Guide...

  • Page 47: Change Security Mode

    13.6.1Change Security Mode • Click Security in the Navigation panel. • Click the Mode desired. ◦ If HTTPS with own trusted TLS certificate is selected, follow instructions in Section 6.2.1 HTTPS with Own Trusted TLS Certificate • Click the Save button. Cooper Lighting Solutions ProtoAir Guide...

  • Page 48: Edit The Certificate Loaded Onto The Fieldserver

    13.6.2Edit the Certificate Loaded onto the FieldServer NOTE:    A loaded certificate will only be available if the security mode was previously setup as HTTPS with own trusted TLS certificate. • Click Security in the Navigation panel. • Click the Edit Certificate button to open the certificate and key fields. •...

  • Page 49: Change User Management Settings

    13.7 Change User Management Settings • From the FS-GUI page, click Setup in the Navigation panel. • Click User Management in the navigation panel. NOTE:    If the passwords are lost, the unit can be reset to factory settings to reinstate the default unique password on the label.

  • Page 50: Create Users

    13.7.1Create Users • Click the Create User button. • Enter the new User fields: Name, Security Group and Password. ◦ User details are hashed and salted NOTE:    The password must meet the minimum complexity requirements. An algorithm automatically checks the password entered and notes the level of strength on the top right of the Password text field. •...

  • Page 51: Edit Users

    13.7.2Edit Users • Click the pencil icon next to the desired user to open the User Edit window. • Once the User Edit window opens, change the User Security Group and Password as needed. • Click Confirm. • Once the Success message appears, click OK. Cooper Lighting Solutions ProtoAir Guide...

  • Page 52: Delete Users

    13.7.3Delete Users • Click the trash can icon next to the desired user to delete the entry. • When the warning message appears, click Confirm. Cooper Lighting Solutions ProtoAir Guide...

  • Page 53: Change Fieldserver Password

    13.7.4Change FieldServer Password • Click the Password tab. • Change the general login password for the FieldServer as needed. NOTE:    The password must meet the minimum complexity requirements. An algorithm automatically checks the password entered and notes the level of strength on the top right of the Password text field. Cooper Lighting Solutions ProtoAir Guide...

  • Page 54: Structure Of The Device Tree

    13.8 Structure of the Device Tree The device tree is in the following structure: • Device IP Address ◦ Devices connected – Data points For example: Cooper Lighting Solutions ProtoAir Guide...

  • Page 55: Vendor Information - Cooper Lighting Solutions

    Vendor Information – Cooper Lighting Solutions Check the specific gateway start-up guide for the supported protocols for the gateway in use. NOTE: Cooper Lighting Solutions Fifth Light points determined by panel configuration. 14.1 ControlKeeper 2 & 4 (GreenGate) Mappings to Field Protocols Point Name BACnet Object Type BACnet Object ID Modbus Register Reset 1001...
  • Page 56 Point Name BACnet Object Type BACnet Object ID Modbus Register Remote07 Remote08 Remote09 Remote010 Remote011 Remote012 Remote013 Remote014 Remote015 Remote016 Remote017 Remote018 Remote019 Remote020 Remote021 Remote022 Remote023 Remote024 Remote025 Remote026 Remote027 Remote028 Remote029 Remote030 Remote031 Remote032 Remote033 Remote034 Remote035 Remote036 Remote037 Remote038 Remote039...
  • Page 57 Point Name BACnet Object Type BACnet Object ID Modbus Register Remote055 Remote056 Remote057 Remote058 Remote059 Remote060 Remote061 Remote062 Remote063 Remote064 Switch01 10001 Switch02 10002 Switch03 10003 Switch04 10004 Switch05 10005 Switch06 10006 Switch07 10007 Switch08 10008 Switch09 10009 Switch010 10010 Switch011 10011 Switch012...

  • Page 58: Controlkeeper T (Greengate) Mappings To Field Protocols

    Point Name BACnet Object Type BACnet Object ID Modbus Register Switch038 10038 Switch039 10039 Switch040 10040 Switch041 10041 Switch042 10042 Switch043 10043 Switch044 10044 Switch045 10045 Switch046 10046 Switch047 10047 Switch048 10048 Switch049 10049 Switch050 10050 Switch051 10051 Switch052 10052 Switch053 10053 Switch054...
  • Page 59 Point Name BACnet Object Type BACnet Object ID Modbus Register Relay017 Relay018 Relay019 Relay020 Relay021 Relay022 Relay023 Relay024 Relay025 Relay026 Relay027 Relay028 Relay029 Relay030 Relay031 Relay032 Relay033 Relay034 Relay035 Relay036 Relay037 Relay038 Relay039 Relay040 Relay041 Relay042 Relay043 Relay044 Relay045 Relay046 Relay047 Relay048 Remote01...
  • Page 60 Point Name BACnet Object Type BACnet Object ID Modbus Register Remote016 Remote017 Remote018 Remote019 Remote020 Remote021 Remote022 Remote023 Remote024 Remote025 Remote026 Remote027 Remote028 Remote029 Remote030 Remote031 Remote032 Remote033 Remote034 Remote035 Remote036 Remote037 Remote038 Remote039 Remote040 Remote041 Remote042 Remote043 Remote044 Remote045 Remote046 Remote047 Remote048...
  • Page 61 Point Name BACnet Object Type BACnet Object ID Modbus Register Remote064 Switch01 10001 Switch02 10002 Switch03 10003 Switch04 10004 Switch05 10005 Switch06 10006 Switch07 10007 Switch08 10008 Switch09 10009 Switch010 10010 Switch011 10011 Switch012 10012 Switch013 10013 Switch014 10014 Switch015 10015 Switch016 10016...
  • Page 62 Point Name BACnet Object Type BACnet Object ID Modbus Register Switch047 10047 Switch048 10048 Switch049 10049 Switch050 10050 Switch051 10051 Switch052 10052 Switch053 10053 Switch054 10054 Switch055 10055 Switch056 10056 Switch057 10057 Switch058 10058 Switch059 10059 Switch060 10060 Switch061 10061 Switch062 10062 Switch063...

  • Page 63: Room Controller (Greengate) Mappings To Field Protocols

    Point Name BACnet Object Type BACnet Object ID Modbus Register AI_State030 10130 AI_State031 10131 AI_State032 10132 AI01 30001 AI02 30002 AI03 30003 AI04 30004 14.3 Room Controller (GreenGate) Mappings to Field Protocols Point Name BACnet Object Type BACnet Object ID Modbus Register Reset 1001 Relay01...
  • Page 64 Point Name BACnet Object Type BACnet Object ID Modbus Register Remote032 Remote033 Remote034 Remote035 Remote036 Remote037 Remote038 Remote039 Remote040 Remote041 Remote042 Remote043 Remote044 Remote045 Remote046 Remote047 Remote048 Remote049 Remote050 Remote051 Remote052 Remote053 Remote054 Remote055 Remote056 Remote057 Remote058 Remote059 Remote060 Remote061 Remote062 Remote063 Remote064...

  • Page 65: Controlkeeper 4A (Greengate) Mappings To Field Protocols

    Point Name BACnet Object Type BACnet Object ID Modbus Register Switch015 10015 Switch016 10016 Switch017 10017 Switch018 10018 Switch019 10019 Switch020 10020 Switch021 10021 Switch022 10022 Switch023 10023 Switch024 10024 Switch025 10025 Switch026 10026 Switch027 10027 Switch028 10028 Switch029 10029 Switch030 10030 Switch031...
  • Page 66 Point Name BACnet Object Type BACnet Object ID Modbus Register Relay010 Relay011 Relay012 Relay013 Relay014 Relay015 Relay016 Remote01 Remote02 Remote03 Remote04 Remote05 Remote06 Remote07 Remote08 Remote09 Remote010 Remote011 Remote012 Remote013 Remote014 Remote015 Remote016 Remote017 Remote018 Remote019 Remote020 Remote021 Remote022 Remote023 Remote024 Remote025 Remote026...
  • Page 67 Point Name BACnet Object Type BACnet Object ID Modbus Register Remote041 Remote042 Remote043 Remote044 Remote045 Remote046 Remote047 Remote048 Remote049 Remote050 Remote051 Remote052 Remote053 Remote054 Remote055 Remote056 Remote057 Remote058 Remote059 Remote060 Remote061 Remote062 Remote063 Remote064 Switch01 10001 Switch02 10002 Switch03 10003 Switch04 10004 Switch05...
  • Page 68 Point Name BACnet Object Type BACnet Object ID Modbus Register Switch024 10024 Switch025 10025 Switch026 10026 Switch027 10027 Switch028 10028 Switch029 10029 Switch030 10030 Switch031 10031 Switch032 10032 Switch033 10033 Switch034 10034 Switch035 10035 Switch036 10036 Switch037 10037 Switch038 10038 Switch039 10039 Switch040...

  • Page 69: Controlkeeper M/Mb (Greengate) Mappings To Field Protocols

    Point Name BACnet Object Type BACnet Object ID Modbus Register AI_State07 10107 AI_State08 10108 AI_State09 10109 AI_State010 10110 AI_State011 10111 AI_State012 10112 AI_State013 10113 AI_State014 10114 AI_State015 10115 AI_State016 10116 AI_State017 10117 AI_State018 10118 AI_State019 10119 AI_State020 10120 AI_State021 10121 AI_State022 10122 AI_State023...
  • Page 70 Point Name BACnet Object Type BACnet Object ID Modbus Register Relay013 Relay014 Relay015 Relay016 Relay017 Relay018 Relay019 Relay020 Relay021 Relay022 Relay023 Relay024 Relay025 Relay026 Relay027 Relay028 Relay029 Relay030 Relay031 Relay032 Relay033 Relay034 Relay035 Relay036 Relay037 Relay038 Relay039 Relay040 Relay041 Relay042 Relay043 Relay044 Relay045...
  • Page 71 Point Name BACnet Object Type BACnet Object ID Modbus Register Relay061 Relay062 Relay063 Relay064 Remote01 Remote02 Remote03 Remote04 Remote05 Remote06 Remote07 Remote08 Remote09 Remote010 Remote011 Remote012 Remote013 Remote014 Remote015 Remote016 Remote017 Remote018 Remote019 Remote020 Remote021 Remote022 Remote023 Remote024 Remote025 Remote026 Remote027 Remote028 Remote029...
  • Page 72 Point Name BACnet Object Type BACnet Object ID Modbus Register Remote044 Remote045 Remote046 Remote047 Remote048 Remote049 Remote050 Remote051 Remote052 Remote053 Remote054 Remote055 Remote056 Remote057 Remote058 Remote059 Remote060 Remote061 Remote062 Remote063 Remote064 Switch01 10001 Switch02 10002 Switch03 10003 Switch04 10004 Switch05 10005 Switch06 10006...
  • Page 73 Point Name BACnet Object Type BACnet Object ID Modbus Register Switch027 10027 Switch028 10028 Switch029 10029 Switch030 10030 Switch031 10031 Switch032 10032 Switch033 10033 Switch034 10034 Switch035 10035 Switch036 10036 Switch037 10037 Switch038 10038 Switch039 10039 Switch040 10040 Switch041 10041 Switch042 10042 Switch043...

  • Page 74: Wavelinx Wired Scene Mappings To Field Protocols

    Point Name BACnet Object Type BACnet Object ID Modbus Register AI_State010 10110 AI_State011 10111 AI_State012 10112 AI_State013 10113 AI_State014 10114 AI_State015 10115 AI_State016 10116 AI_State017 10117 AI_State018 10118 AI_State019 10119 AI_State020 10120 AI_State021 10121 AI_State022 10122 AI_State023 10123 AI_State024 10124 AI_State025 10125 AI_State026...

  • Page 75: Specifications

    Specifications ProtoAir FPA-W44 One 3-pin Phoenix connector with: RS-485/RS-232 (Tx+ / Rx- / gnd) One 3-pin Phoenix connector with: RS-485 (+ / - / gnd) Electrical Connections One 3-pin Phoenix connector with: Power port (+ / - / Frame-gnd) One Ethernet 10/100 BaseT port Input Voltage:12-24VDC or 24VAC Current draw: 24VAC 0.125A Power Requirements...

  • Page 76: Warnings For Fcc And Ic

    15.2 Warnings for FCC and IC Waste Disposal It is recommended to disassemble the device before abandoning it in conformity with local regulations. Please ensure that the abandoned batteries are disposed according to local regulations on waste disposal. Do not throw batteries into fire (explosive) or put in common waste canister.
  • Page 77 • Consult the dealer or an experienced radio/TV technician for help. Any modification to the product is not permitted unless authorized by MSA Safety. It’s not allowed to disassemble the product; it is not allowed to replace the system or change components unless with permission and certification. Please contact the FieldServer technical support department or local branches for help.
  • Page 78 End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. For product compliance test FCC and IC, all the technical documentation is submitted by MSA Safety, who is the customer or importer of the ProtoAir.

  • Page 79: Limited 2 Year Warranty

    Limited 2 Year Warranty MSA Safety warrants its products to be free from defects in workmanship or material under normal use and service for two years after date of shipment. MSA Safety will repair or replace any equipment found to be defective during the warranty period.
