- Page 1 Operating Manual MSA Mobile HUB SCBA Telemetry Version Order No.: 10218651/01 MSAsafety.com...
- Page 2 The Declaration of Conformity can be found under the following link: https://MSAsafety.com/DoC. MSA is a registered trademark of MSA Technology, LLC in the US, Europe and other Countries. For all other trademarks visit https://us.msasafety.com/Trademarks. This product incorporates Bluetooth® wireless technology. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by MSA is under license.
-
Page 3: Table Of Contents
Contents Safety Regulations Correct Use Liability Information Warranty Description Scope of Delivery Overview 2.2.1 MSA Mobile HUB 2.2.2 LED Status Assembly and Installation MSA Mobile HUB Truck Charging Cable 3.2.1 Installation 3.2.2 Technical Data Battery Charger (Desktop Power Supply) 3.3.1 Technical Data... -
Page 4: Safety Regulations
Do not alter or modify the device. Repair or alteration of the device beyond the procedures described in this manual or by anyone other than a person authorized by MSA could cause the unit to fail to perform properly. Use only genuine MSA replacement parts when performing any maintenance procedures described in this manual. -
Page 5: Warranty
1 Safety Regulations Warranty Local rules apply. For any additional information relative to use or repair, call 1-877-MSA-FIRE (1-877-672-3473) during regular working hours or write an e-mail to fire.cs@msasafety.com. For additional contact information refer to the MSA website at www.MSAsafety.com. -
Page 6: Description
This package includes: • MSA Mobile HUB • Power supply • Power cable • Charging cable for truck installation • LRR antenna • Quick Start Guide The A2 Software can be downloaded via the MSA Software Product website at www.MSAsafety.com. -

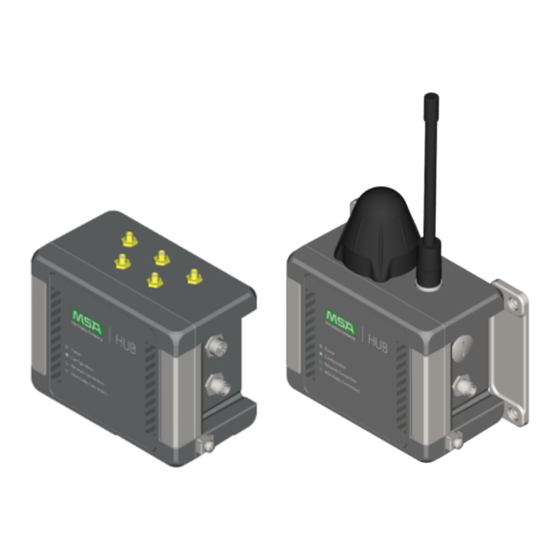

Page 7: Overview
The device consists of a compact housing with three antennas (multi, LRR and LTE diversity) and two connections (service access and charging port). When the device is installed and configured, it can connect MSA devices to the internet or intranet and transfer data. The status LEDs show the respective connection status. -
Page 8: Led Status
Default: off Default: off Network On / Off Connection Connection to Safety io FireGrid established Off - no user connected MSA Radio On / Off Connection On - at least one user connected 1+2+3+4 Error Case Blinking Any module is in error state (see 5.3 Error... - Page 9 2 Description Table 2 : Battery State LED Behaviour Device state Connection Charging LED behaviour state state The LEDs shows the charging state while the battery is Charging charging (seeTable 3 : Charging). DC power connected Switched off (power Charging The LEDs will be switched off if the battery is fully button LED is off) stopped charged.
-
Page 10: Assembly And Installation
3 Assembly and Installation Assembly and Installation WARNING! Do not assemble or operate damaged components. Failure to follow this warning can result in serious personal injury or death. CAUTION! Maintain at least 20 cm (8 in) between the user’s body and the device when powered on due to emissions. Do wear the device using the shoulder strap when the device is powered on. -
Page 11: Msa Mobile Hub
3 Assembly and Installation MSA Mobile HUB (1) Hand-screw LRR antenna. (2) Open housing by opening the right joints and removing the lid screws. NOTE: Do not open while powered. Do not open while charging. (3) Optional: Insert SIM card. -
Page 12: Truck Charging Cable
Installation of truck charging electronics must be done by personnel that are specially qualified and trained for such work on the subject vehicle. • Only use the battery charger and included cables provided by MSA for charging the battery. Do not use damaged cables. •... -
Page 13: Technical Data
WARNING! It is imperative to read and observe the following instructions when using the battery charger: • Only use the battery charger and included cables provided by MSA for charging the battery. Do not use damaged cables. • Risk of explosion! Do not charge the battery where an explosive atmosphere may be present. -
Page 14: Before Operation
Overheating may cause an explosion. • Do not drop, crush or puncture the Mobile HUB or charging system. Damage from such occurrences can lead to short-circuit and overheating of the equipment. - Page 15 4 Before Operation NOTICE • Do not open the device while charging. Otherwise, the device may be damaged. • Charge the battery in a temperature range between 0 °C to +40 °C. Otherwise, the device may be damaged. • Charge the battery completely before each use. The device is equipped with a safety temperature monitoring system, which enables charging only within a temperature range between 0 °C and +40 °C.
-
Page 16: Operation
• When radio connection is lost between the HUB and the BA set, the Entry Control Board displays estimated information. Follow local rules to interact with the monitored BA wearers for status updates. Failure to follow these warnings can result in serious personal injury or death. -
Page 17: Firmware Update
A2 Software Manual on the Software Product website at www.MSAsafety.com. Firmware Update Regularly check for new updates by using the A2 Software. Refer to the A2 Software Operating Manual on the MSA Software Product website at www.MSAsafety.com. Error Cases... - Page 18 5 Operation NOTICE The device contains electrostatically sensitive components. Adopt precautionary measures against electrostatic discharge during assembly. Otherwise, the device may be damaged. (1) Remove the device from incident scene. (2) Open housing by opening the right joints and unscrew the lid screws using a Torx T20.
- Page 19 Table 5 : Factory Reset Parameters Parameters Value Default dhcp true Ethernet disabled false Hostname ccimx6sbc Client WLAN configuration Hotspot Hotspot disabled WiFi client configuration previous connections to WLAN networks are deleted ssid MSA HUB <serial number> WiFi hotspot configuration <random on name plate>...
-
Page 20: Maintenance
Repair or alteration of the device beyond the procedures described in this manual or by anyone other than a person authorized by MSA could cause the unit to fail to perform properly. Use only genuine MSA replacement parts when performing any maintenance procedures described in this manual. Substitution of components can seriously impair performance of the unit or void agency approvals. -
Page 21: Replacing Antenna
6 Maintenance Replacing Antenna 3.1 MSA Mobile HUB. Replacing of Bumpers NOTICE • Do not open the device while powered. Otherwise, the device may be damaged. • Do not open the device while charging. Otherwise, the device may be damaged. -
Page 22: Attaching The Carrying Strap (Accessory)
6 Maintenance Attaching the Carrying Strap (Accessory) (1) Detach the carrying strap. (2) Attach the carrying strap. -
Page 23: Storage
7 Storage Storage • Do not store the device within or near an area where the device might be exposed to any substances and/or ambient conditions that might attack any part of the device, causing the device to not perform as designed and approved. -
Page 24: Disposal
8 Disposal Disposal Recycling of electrical and electronic equipment: The crossed-out trash can symbol indicates that after the end of life this product should not be thrown away with the normal trash. To prevent harm to the environment and human health from uncontrolled waste disposal, do not throw this product together with normal trash and dispose of it with the responsibility necessary to the use of material resources. -
Page 25: Certification
9 Certification Certification The Declaration of Conformity can be found under the following link: https://MSAsafety.com/DoC. -
Page 26: Technical Data
10 Technical Data Technical Data 188 mm x 115 mm x 199 mm Dimensions L x W x H (without antenna) (housing + bumpers) 188 mm x 115 mm x 405 mm (with antenna) Weight 2.2 kg Ambient temperature range –15 °C to +55 °C Storage temperature range –15 °C to +55 °C Charging temperature range... -
Page 27: Ordering Information
Part Number MSA Mobile HUB 10212582 11.1 Spare Parts Use only genuine MSA replacement parts when performing any maintenance procedures. Contact your local MSA sales representative: 1-877-MSA-FIRE (1-877-672-3473) or fire.cs@msasafety.com For additional contact information refer to the MSA website at www.MSAsafety.com. - Page 28 For local MSA contacts, please visit us at MSAsafety.com...
