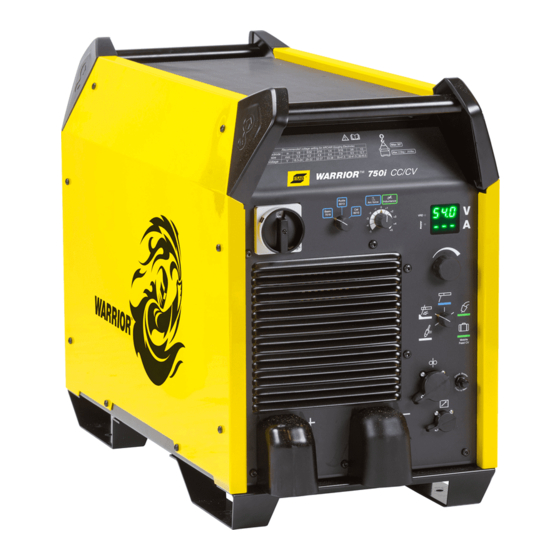

ESAB Warrior 750i CC/CV Instruction Manual

ESAB Warrior 750i CC/CV Instruction Manual

Hide thumbs Also See for Warrior 750i CC/CV:

Advertisement

Quick Links

Warrior
750i CC/CV
Instruction manual
Valid for: from serial no. 005-xxx-xxxx, 015-xxx-xxxx
0463 730 001 US 20210503

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Warrior 750i CC/CV and is the answer not in the manual?

Questions and answers

Summary of Contents for ESAB Warrior 750i CC/CV

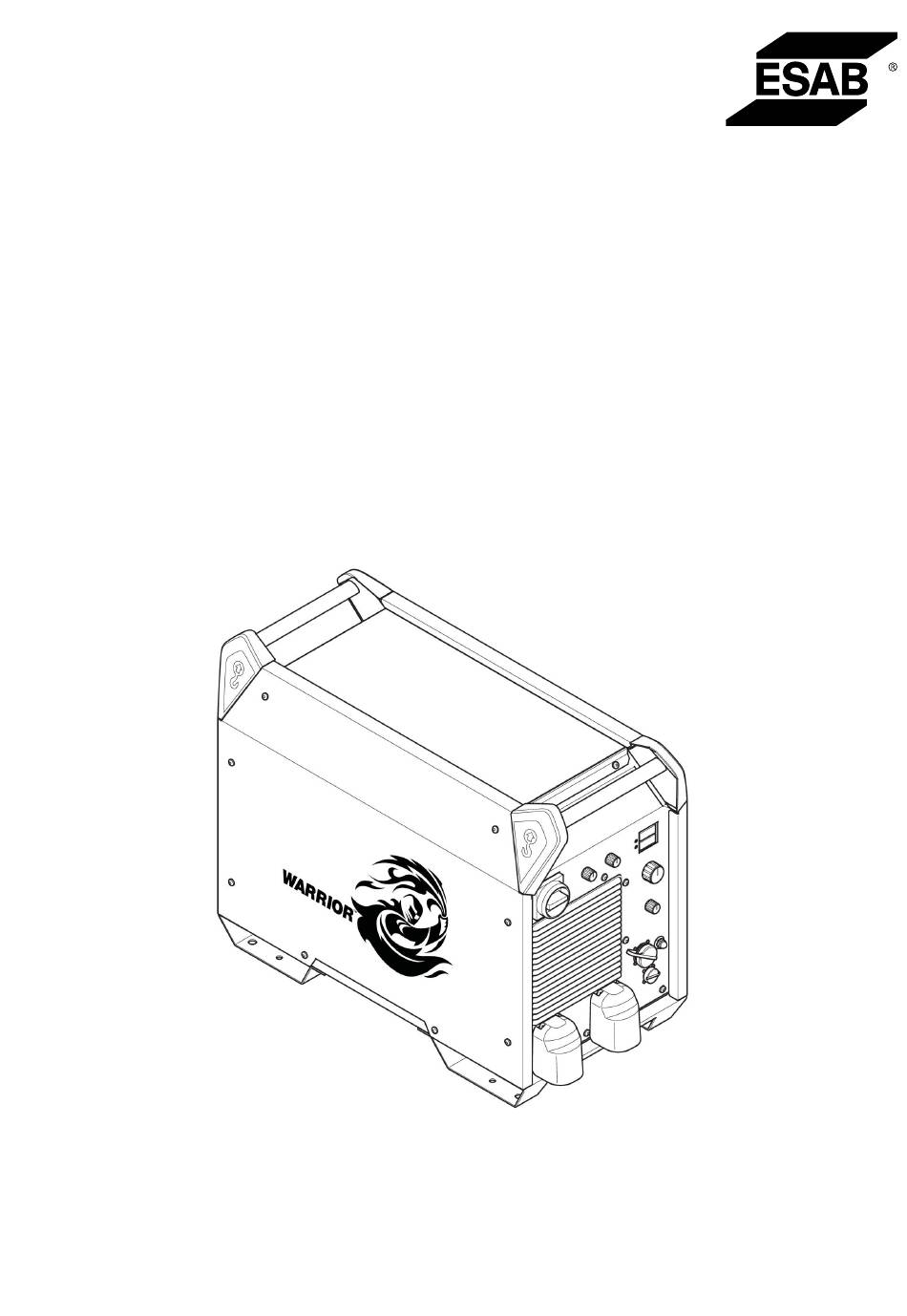

  • Page 1 Warrior 750i CC/CV ™ Instruction manual Valid for: from serial no. 005-xxx-xxxx, 015-xxx-xxxx 0463 730 001 US 20210503...
  • Page 2: Table Of Contents

    MAINTENANCE ................... Overview ....................Power source ..................Welding torch ..................TROUBLESHOOTING ................. ORDERING SPARE PARTS ................ BLOCK DIAGRAM ....................32 ORDERING NUMBERS ..................33 ACCESSORIES ....................34 Rights reserved to alter specifications without notice. 0463 730 001 © ESAB AB 2021...
  • Page 3: Safety

    A flameproof apron may also be desirable as protection against radiated heat and sparks. 0463 730 001 - 3 - © ESAB AB 2021...
  • Page 4 Put on dry, hole-free gloves before turning on the power. Turn off the power, before removing your gloves. 10. Refer to ANSI/ASC Standard Z49.1 for specific grounding recommendations. Do not mistake the work lead for a earth cable. 0463 730 001 - 4 - © ESAB AB 2021...
  • Page 5 Do not use adapters. Maintain hoses and fittings in good condition. Follow the manufacturer's operating instructions for mounting a regulator to a compressed gas cylinder. 0463 730 001 - 5 - © ESAB AB 2021...
  • Page 6 Keep all safety devices and cabinet covers in position and in good repair. Use equipment only for its intended purpose. Do not modify it in any manner. 0463 730 001 - 6 - © ESAB AB 2021...
  • Page 7: User Responsibility

    Protection Devices" User responsibility Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be observed, in addition to the standard regulations that apply to the workplace.
  • Page 8 If equipped with ESAB cooler Use ESAB approved coolant only. Non-approved coolant might damage the equipment and jeopardize product safety. In case of such damage, all warranty undertakings from ESAB cease to apply. Recommended ESAB coolant ordering number: 0465 720 002.
  • Page 9: California Proposition 65 Warning

    CAUTION! This product is solely intended for arc welding. ESAB has an assortment of welding accessories and personal protection equipment for purchase. For ordering information, contact your local ESAB dealer or visit us on our website. California Proposition 65 Warning...
  • Page 10 This product can expose you to chemicals including lead, which are known to the state of California to cause cancer and birth defects or other reproductive harm. Wash hands after use. For more information, go to www.P65Warnings.ca.gov. 0463 730 001 - 10 - © ESAB AB 2021...
  • Page 11: Introduction

    2 INTRODUCTION INTRODUCTION Overview The Warrior 750i CC/CV is a welding power source intended for arc air gouging, GMAW welding, as well as for welding with powder-filled cored wire (FCAW-S), for GTAW welding and welding with coated electrodes (SMAW). The power sources are intended for use with the following wire feed units: •...
  • Page 12: Technical Data

    3 TECHNICAL DATA TECHNICAL DATA Warrior 750i CC/CV Working voltage 380–575 V, ±10%, 3~ 50/60 Hz Mains supply S 5.4 MVA scmin Mains supply Z 0.0319 ohm Primary current 380 V 400 V 415 V 440 V 460 V 575 V GMAW - MIG 70 A...
  • Page 13 3 TECHNICAL DATA Warrior 750i CC/CV GMAW GTAW SMAW Gouging Open-circuit voltage without VRD function (RMS/Peak) 61/94 V DC Operating temperature 14 to 104 °F (-10 to 40 °C) Transport temperature -4 to 131°F (-20 to 55°C) Constant sound pressure when idling <70 dB (A) Dimensions l × w × h 33.5×16.3×25.1 in. (850×415×637 mm) Weight (welding power source) 231.5 lb (105 kg)
  • Page 14: Installation

    CAUTION! This product is intended for industrial use. In a domestic environment, this product may cause radio interference. It is the user's responsibility to take adequate precautions. Lifting instructions   0463 730 001 - 14 - © ESAB AB 2021...
  • Page 15: Location

    Make sure that the welding power source is connected to the correct supply voltage and that it is protected by the correct fuse rating. A protective ground connection must be made in accordance with regulations. Rating plate with supply connection data 0463 730 001 - 15 - © ESAB AB 2021...
  • Page 16: Recommended Fuse Sizes And Minimum Cable Area

    4 INSTALLATION 4.4.1 Recommended fuse sizes and minimum cable area Warrior 750i CC/CV Warrior 750i CC/CV Mains voltage 380 V 3~ 50/60 Hz 400 V 3~ 50/60 Hz Mains cable area 4x16 mm 4x16 mm Phase current I 65 A 62 A Fuse anti-surge 80 A 63 A type C MCB...
  • Page 17: Connection Instruction

    4 INSTALLATION 4.4.3 Connection instruction The power source Warrior 750i CC/CV (0445 555 881) for North America is connected to 460 V from the factory. If a different voltage is required, switch off the mains, then remove the cover plate, and the selector switch can be positioned for the required voltage.
  • Page 18 A mains cable needs to be installed. It is important that the ground connection to the bottom plate then be made in the correct way. See the picture above, for the placement order of the washers, nuts and screws. 0463 730 001 - 18 - © ESAB AB 2021...
  • Page 19: Operation

    Connection for mains power supply NOTE! Welding terminals, positive (+) and negative (-), are lug type connectors and adapter cables are required to connect lug to OKC for 70 mm and 95 mm cables. 0463 730 001 - 19 - © ESAB AB 2021...
  • Page 20: Connecting Welding And Return Cables

    620 A 0.16 V/100 A 740 A 860 A 1040 A 0.20 V/100 A 2×95 mm Use additional cables in parallel if the current-carrying capacity of the cable presented in the table is exceeded. 0463 730 001 - 20 - © ESAB AB 2021...
  • Page 21: Turning The Power On/Off

    Symbols and functions Location of lifting eye Voltage Reducing Device Overheating Basic electrode protection Rutile electrode Cellulosic electrode Arc force Inductance TIG welding (Live Arc air gouging TIG) 0463 730 001 - 21 - © ESAB AB 2021...
  • Page 22 Argon gas cylinder • Argon gas regulator • Tungsten electrode Arc air gouging For arc air gouging, a special electrode is used comprised of a carbon rod with a copper casing. 0463 730 001 - 22 - © ESAB AB 2021...
  • Page 23 For GMAW and self-shielded, cored wire welding, the power source must be supplemented with: • wire feed unit • welding torch • connection cable between power source and wire feed unit • gas cylinder • Return cable with clamp 0463 730 001 - 23 - © ESAB AB 2021...
  • Page 24: Shielding Gas Recommendation

    The general rule to be followed for shielding gas flow rate is 10 to 12 times of the wire size. It may increase for different welding applications where higher stick out and parameters are used. When using helium mixtures, the flow rate must be 1.5 to 3 times more than with argon. 0463 730 001 - 24 - © ESAB AB 2021...
  • Page 25: Procedure For Cag Process

    32–37 V 6.4 mm (1/4'') 3.2–8 mm 33–38 V 7.9 mm (5/16'') 4–9.5 mm 35–41.5 V 9.5 mm (3/8'') 4.8–12.7 mm 35–41.5 V 13 mm (1/2'') 6.4–19 mm 38–45.5 V 0463 730 001 - 25 - © ESAB AB 2021...
  • Page 26: Parallel Operation Of Cag Process

    Connect +ve terminal cable to the torch and -ve terminal cable to the work piece. Connect compressed gas to the torch. Set equal voltage on both power sources and start gouging. 0463 730 001 - 26 - © ESAB AB 2021...
  • Page 27: Maintenance

    Wait for 4 minutes to discharge the capacitors. Remove the side panels on the power source. Remove the top panel on the power source. Remove the plastic cover between the heat sink and fan (b). 0463 730 001 - 27 - © ESAB AB 2021...
  • Page 28: Welding Torch

    The wire end must not have sharp edges when inserted into the wire liner. For detailed information, see the instruction manuals for welding torches. 0463 730 001 - 28 - © ESAB AB 2021...
  • Page 29: Troubleshooting

    • Check that the correct wire or electrode is used. • Check the electrical power supply fuses. • Check the gas pressure in the equipment connected to the power source. 0463 730 001 - 29 - © ESAB AB 2021...
  • Page 30 Intermittent arc action resulting in an irregular • Check whether the voltage is set to the groove surface or copper deposition on the recommended value. metal plate. 0463 730 001 - 30 - © ESAB AB 2021...
  • Page 31: Ordering Spare Parts

    Repair and electrical work should be performed by an authorised ESAB service technician. Use only ESAB original spare and wear parts. Warrior 750i CC Warrior 750i CC/CV is designed and tested in accordance with the international standards IEC 60974-1, Canadian standards CAN/CSA E60974-1:11 and US standards ANSI/IEC 60974-1:2008.
  • Page 32: Block Diagram

    BLOCK DIAGRAM BLOCK DIAGRAM 0463 730 001 - 32 - © ESAB AB 2021...
  • Page 33: Ordering Numbers

    Welding power source Warrior 750i CC/CV Factory set voltage: 460 VAC 0463 734 001 Spare parts list 0463 733 001 Service manual Technical documentation is available on the Internet at: http://manuals.esab.com. 0463 730 001 - 33 - © ESAB AB 2021...
  • Page 34: Accessories

    5/8" (16 mm) half round • Maximum of 1250 A 6299 1417 Tri ARC • Heavy-duty general-purpose torch • Accepts 5/16" (7.9 mm) to 1" (25 mm) round electrodes • Maximum of 2200 A 0463 730 001 - 34 - © ESAB AB 2021...
  • Page 35 70 mm², liquid cooled, 10.0 m 0446 160 893 70 mm², liquid cooled, 15.0 m 0446 160 894 70 mm², liquid cooled, 25.0 m 0446 160 895 70 mm², liquid cooled, 35.0 m 0463 730 001 - 35 - © ESAB AB 2021...
  • Page 36 Lug to OKC adapter 0459 491 896 Remote control unit AT1 SMAW and GTAW current 0459 491 897 Remote control unit AT1 CF SMAW and GTAW: course and fine setting of current 0463 730 001 - 36 - © ESAB AB 2021...
  • Page 37 0446 398 880 Trolley (Air cooled) 0446 270 880 Trolley (Water cooled) 0465 427 881 Cool2 Standalone 0465 250 880 Warrior Feed 304 0465 250 881 Warrior Feed 304w with water cooling 0463 730 001 - 37 - © ESAB AB 2021...
  • Page 38 15 m 0459 836 994 25 m 0459 836 995 35 m GTAW torches 0700 025 530 TIG Torch SR-B 26V HD, 4 m 0700 025 531 TIG Torch SR-B 26V HD, 8 m 0463 730 001 - 38 - © ESAB AB 2021...
  • Page 39 ACCESSORIES 0463 730 001 - 39 - © ESAB AB 2021...
  • Page 40 For contact information visit esab.com ESAB AB, Lindholmsallén 9, Box 8004, 402 77 Gothenburg, Sweden, Phone +46 (0) 31 50 90 00 http://manuals.esab.com...
