Summary of Contents for ESAB Warrior 750i CC/CV

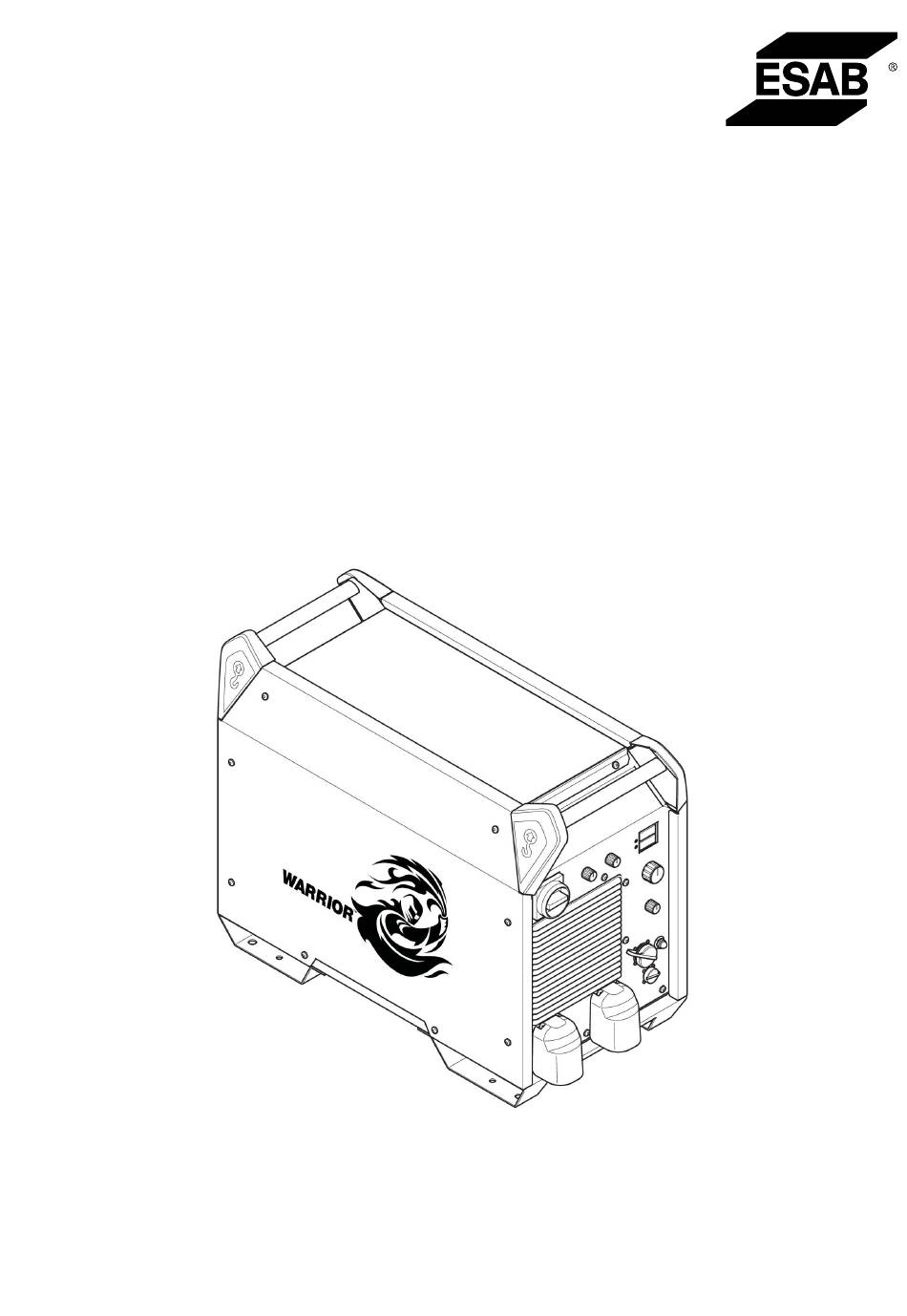

- Page 1 Warrior™ 750i CC/CV Instruction manual Valid for: from serial no. 053-, 110-, 246-xxx-xxxx 0463 730 231 GB 20221128...
-
Page 4: Table Of Contents
MAINTENANCE ................... Overview ....................Power source ..................Welding torch ..................TROUBLESHOOTING ................. ORDERING SPARE PARTS ................ BLOCK DIAGRAM ....................29 ORDERING NUMBERS ..................30 ACCESSORIES ....................31 Rights reserved to alter specifications without notice. 0463 730 231 © ESAB AB 2022... -
Page 5: Safety
Safety Data Sheets (SDSs). Safety precautions Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be observed in addition to the standard regulations that apply to the workplace. - Page 6 If equipped with ESAB cooler Use ESAB approved coolant only. Non-approved coolant might damage the equipment and jeopardize product safety. In case of such damage, all warranty undertakings from ESAB cease to apply. For ordering information, see the "ACCESSORIES" chapter in the instruction manual.
- Page 7 There may be potential difficulties in ensuring electromagnetic compatibility of class A equipment in those locations, due to conducted as well as radiated disturbances. 0463 730 231 - 7 - © ESAB AB 2022...
- Page 8 For further information contact the nearest ESAB dealer. ESAB has an assortment of welding accessories and personal protection equipment for purchase. For ordering information contact your local ESAB dealer or visit us on our website. 0463 730 231 - 8 - ©...
-
Page 9: Introduction

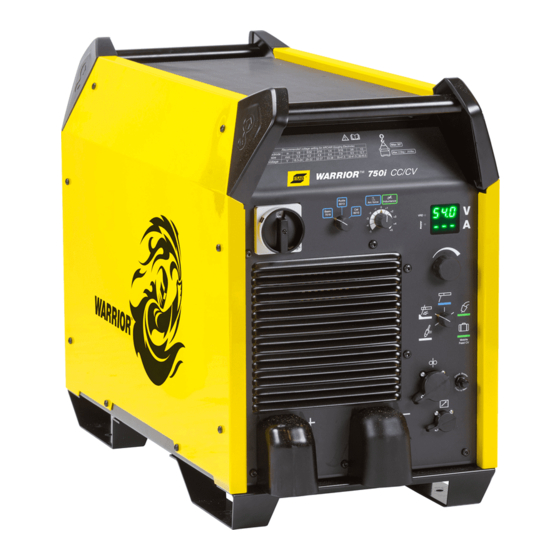

2 INTRODUCTION INTRODUCTION Overview The Warrior 750i CC/CV is a welding power source intended for arc air gouging, GMAW welding, as well as for welding with powder filled cored wire (FCAW-S), for TIG welding and welding with coated electrodes (MMA). -
Page 10: Technical Data
3 TECHNICAL DATA TECHNICAL DATA Warrior 750i CC/CV Working voltage 380 – 460 V, ±10%, 3~50/60 Hz Mains supply S 5.4 MVA scmin Mains supply Z 0.0319 ohm Primary current 380 V 400 V 415 V 440 V 460 V GMAW - MIG 67 A 63 A 61 A 57 A 54 A max. - Page 11 3 TECHNICAL DATA Warrior 750i CC/CV Insulation class Enclosure class IP23 Application class Mains supply, S sc min Minimum short circuit power on the network in accordance with IEC 61000-3-12. Duty cycle The duty cycle refers to the time as a percentage of a ten-minute period that you can weld or cut at a certain load without overloading.
-
Page 12: Installation
CAUTION! This product is intended for industrial use. In a domestic environment this product may cause radio interference. It is the user's responsibility to take adequate precautions. Lifting instructions 0463 730 231 - 12 - © ESAB AB 2022... -
Page 13: Location
Make sure that the welding power source is connected to the correct supply voltage and that it is protected by the correct fuse rating. A protective earth connection must be made in accordance with regulations. Rating plate with supply connection data 0463 730 231 - 13 - © ESAB AB 2022... -
Page 14: Recommended Fuse Sizes And Minimum Cable Area
4 INSTALLATION 4.4.1 Recommended fuse sizes and minimum cable area Warrior 750i CC/CV Warrior 750i CC/CV Mains voltage 380V 3~ 50/60 Hz 400V 3~ 50/60 Hz Mains cable area 4x16 mm 4x16 mm Phase current I 65 A 62 A Fuse anti-surge 80 A 63 A type C MCB Warrior 750i CC/CV Mains voltage 415V 3~ 50/60 Hz... -
Page 15: Connection Instruction
4.4.3 Connection instruction The power source Warrior 750i CC/CV (0445 555 880) for CE variant and (0445 555 882) for Australian variant is connected to 415 V from the factory. If a different voltage is required, switch off the mains, then remove the cover plate and the selector switch can be positioned for the required voltage. - Page 16 See the picture above for the order in which the washers, nuts and screws are placed. 0463 730 231 - 16 - © ESAB AB 2022...
-
Page 17: Operation
Connection for mains power supply NOTE! Welding terminals, positive (+) and negative (-), are lug type connectors and adapter cables are required to connect lug to OKC for 70 mm and 95 mm cables. 0463 730 231 - 17 - © ESAB AB 2022... -
Page 18: Connection Of Welding And Return Cables
CAUTION! Do not turn off the power source during welding (with load). 0463 730 231 - 18 - © ESAB AB 2022... -
Page 19: Fan Control
The arc force is important in determining how the current changes in response to a change in the arc length. A lower value gives a calmer arc with less spatter. It only applies to MMA welding. 0463 730 231 - 19 - © ESAB AB 2022... - Page 20 For GMAW and self shielded core wire welding, the power source shall be supplemented with: • wire feed unit • welding torch • connection cable between power source and wire feed unit • gas cylinder • return cable with clamp 0463 730 231 - 20 - © ESAB AB 2022...
-
Page 21: Shielding Gas Recommendation
A general rule to be followed for shielding gas flow rate is 10 to 12 times of wire size. It may increase for different welding applications where higher stick out and parameters are used. When using Helium mixtures, the flow rate must be 1.5 to 3 times more than with argon. 0463 730 231 - 21 - © ESAB AB 2022... -
Page 22: Procedure For Cag Process
32-37 V 6.4 mm (1/4'') 3.2-8 mm 33-38 V 7.9 mm (5/16'') 4-9.5 mm 35-41.5 V 9.5 mm (3/8'') 4.8-12.7 mm 35-41.5 V 13 mm (1/2'') 6.4-19 mm 38-45.5 V 0463 730 231 - 22 - © ESAB AB 2022... -
Page 23: Parallel Operation Of Cag Process
Connect +ve terminal cable to the torch and -ve terminal cable to the work piece. Connect compressed gas to the torch. Set equal voltage on both power sources and start gouging. 0463 730 231 - 23 - © ESAB AB 2022... -
Page 24: Maintenance
Wait for 4 minutes to discharge the capacitors. Remove the side panels on the power source. Remove the top panel on the power source. Remove the plastic cover between the heat sink and fan (b). 0463 730 231 - 24 - © ESAB AB 2022... -
Page 25: Welding Torch
The wire end must not have sharp edges when inserted into the wire liner. For detailed information see instruction manuals for welding torches. 0463 730 231 - 25 - © ESAB AB 2022... -
Page 26: Troubleshooting
Check that the voltage on the voltage selection label on the rear of the power source is equal to the nominal mains voltage. • Restart the power source with the main switch. 0463 730 231 - 26 - © ESAB AB 2022... - Page 27 Intermittent arc action resulting in an irregular • Check whether the voltage is set to resulting in an irregular groove surface or recommended value. copper deposition on the metal plate. 0463 730 231 - 27 - © ESAB AB 2022...
-
Page 28: Ordering Spare Parts
Repair and electrical work should be performed by an authorised ESAB service technician. Use only ESAB original spare and wear parts. Warrior 750i CC/CV is designed and tested in accordance with the international standards IEC 60974-1 and IEC 60974-10, European standards EN 60974-1:11 and Australian standard AS 60974-1:2008. -
Page 29: Block Diagram
BLOCK DIAGRAM BLOCK DIAGRAM 0463 730 231 - 29 - © ESAB AB 2022... -
Page 30: Ordering Numbers
Therefore they are replaced with * here. Make sure to use a manual with a serial number or software version that corresponds with the product, see the front page of the manual. Technical documentation is available on the Internet at: http://manuals.esab.com. 0463 730 231 - 30 - ©... -
Page 31: Accessories
5/8" (16 mm) half round • Maximum of 1250 A 6299 1417 Tri ARC • Heavy-duty general-purpose torch • Accepts 5/16" (7.9 mm) to 1" (25 mm) round electrodes • Maximum of 2200 A 0463 730 231 - 31 - © ESAB AB 2022... - Page 32 70 mm², liquid cooled, 10.0 m 0446 160 893 70 mm², liquid cooled, 15.0 m 0446 160 894 70 mm², liquid cooled, 25.0 m 0446 160 895 70 mm², liquid cooled, 35.0 m 0463 730 231 - 32 - © ESAB AB 2022...
- Page 33 Lug to OKC adapter 0459 491 896 Remote control unit AT1 MMA and TIG current 0459 491 897 Remote control unit AT1 CF MMA and TIG: course and fine setting of current 0463 730 231 - 33 - © ESAB AB 2022...
- Page 34 0446 398 880 Trolley (Air cooled) 0446 270 880 Trolley (Water cooled) 0465 427 881 Cool2 Standalone 0465 250 880 Warrior Feed 304 0465 250 881 Warrior Feed 304w with water cooling 0463 730 231 - 34 - © ESAB AB 2022...
- Page 35 15 m 0459 836 994 25 m 0459 836 995 35 m TIG torches 0700 025 530 TIG Torch SR-B 26V HD, 4 m 0700 025 531 TIG Torch SR-B 26V HD, 8 m 0463 730 231 - 35 - © ESAB AB 2022...
- Page 36 For contact information visit esab.com ESAB AB, Lindholmsallén 9, Box 8004, 402 77 Gothenburg, Sweden, Phone +46 (0) 31 50 90 00 manuals.esab.com...
