Summary of Contents for Cypress CP-295NN

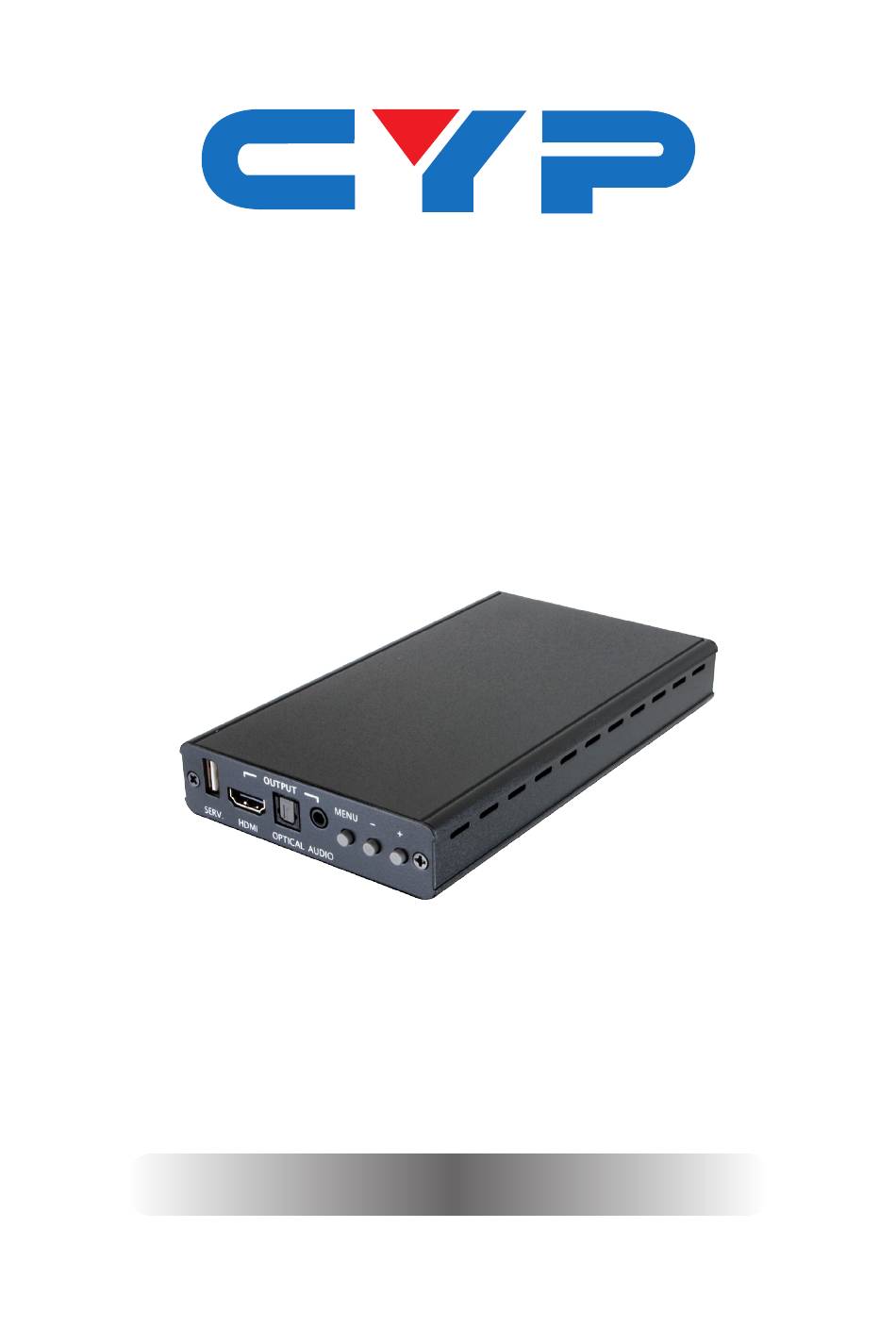

- Page 1 CP-295NN CV/SV to HDMI Scaler Operation Manual Operation Manual...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
- Page 3 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 OSD Menu .........5 7. -
Page 5: Introduction
1. INTRODUCTION This Scaler Box is designed to upscale analog video signal from CV/ SV input source to digital HDMI output of wide-range HDTV and PC resolutions, up to 1080p/WUXGA. Besides video upscaling, the scaler box also converts digital/analog audio signal to digital/analog formats, then output to HDMI combining with the video, Optical and phone jack (L/R audio) simultaneously. -
Page 6: Features
5. FEATURES • HDMI, HDCP and DVI compliant • Supports full range of video resolution from NTSC, NTSC4, PAL, PAL-M, PAL-N and SELCAM • Scales resolution to PC (VGA~WUXGA)/HD(480p~1080p) • Automatically detect the factory setting of the connected display and output the corresponding resolution with refresh rate, when the NATIVE output is selected •... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel INPUT DC 5V OPTICAL CV/SV INPUT: Connect from source equipment such as DVD/Video player with composite or S-video cable or DVD player with D-Sub to RCA adaptor. L/R INUPT: Connect from the audio source equipment such as DVD/PC with stereo audio jack for analog audio signal input. -

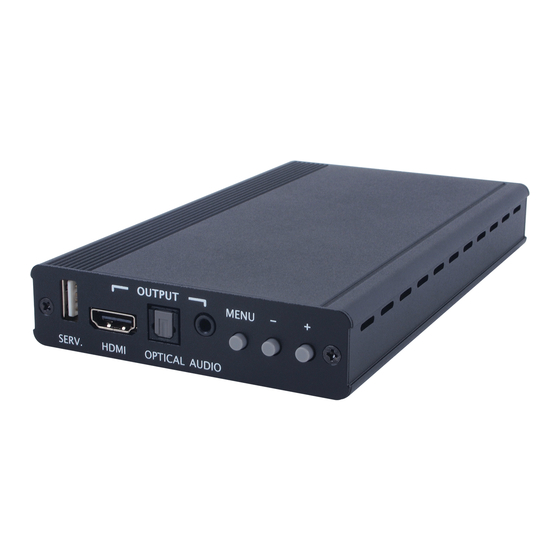

Page 8: Rear Panel
6.2 Rear Panel OUTPUT MENU SERV. HDMI OPTICAL AUDIO SERV.: This port is reserved for firmware update only. HDMI OUTPUT: This slot is to connect with HDMI TV/Monitor for output image display. OPTICAL OUTPUT: Connect to an amplifier or active speaker with optical cable for PCM 2 channel audio output. -
Page 9: Osd Menu
6.3 OSD Menu Main Menu Layer Layer CONTRAST 0~100 (50) PICTURE BRIGHTNESS 0~100 (50) SETTING EXIT 0~100 (50) SATURATION 0~100 (50) FINETUEN SHARPNESS 0~100 (50) OFF/LOW/MIDDLE/HIGH (OFF) EXIT 0~100 (50) GREEN 0~100 (50) COLOR SETTING BLUE 0~100 (50) EXIT FULL/OVERSCAN/UNDERSCAN/ SIZE LETTER BOX/ PANSCAN/ASPECT (FULL) -
Page 10: Connection Diagram
Main Menu Layer Layer H-POSITION 0~100 (10) V-POSITION 0~100 (90) TIMER 0~100 (50) SETTING BACKGROUND 0~100 (50) DISPLAY INFO/ON/OFF (INFO) EXIT 7. CONNECTION DIAGRAM DVD or Blu-ray Player INPUT DC 5V Power Supply OPTICAL OUTPUT MENU SERV. HDMI OPTICAL AUDIO HDMI Amplifier... -
Page 11: Specifications
8. SPECIFICATIONS Video Bandwidth 225MHz / 6.75Gbps Input Ports 1 x CV, 1x SV, 1 x L/R, 1 x Optical, 1 x USB (service only) Output Ports 1x HDMI, 1 x Optical, 1 x 3.5mm Phone Jack HDMI output Resolution Up to 1080p &... -
Page 12: Acronyms
Optical 0dB~-1dB <0.15% ±3 dBFS >80dB <-70dB HDMI 0dB~-1dB <0.15% ±3 dBFS >80dB <-70dB 9. ACRONYMS ACRONYM COMPLETE TERM HDMI High-Definition Multimedia Interface WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduce blanking) CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CP295NN...
