Summary of Contents for Cypress CPT-386

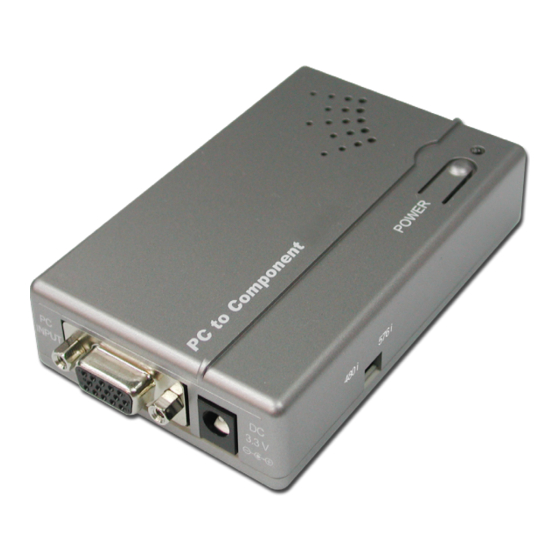

- Page 1 CPT-386 PC to Component Scan Converter Operation Manual CPT-386...
- Page 3 TABLE OF CONTENTS 1. Introduction..................2. Main Features................3. Hardware Description..............3.1 Top Panel................. 3.2 Front Panel................3.3 Rear Panel................3.4 Side Panel................. 4. Connection and Installation............5. Specifications.................
-
Page 4: Main Features
1. Introduction This is a scan converter box to convert a variety of PC resolutions (from VGA to UXGA) to TV resolutions (Component Y/Cb/Cr of 480i or 576i). With its good performance of conversion and flexibility of TV system selection (480i and 576i), the product becomes an ideal solution to video conference, home theater, business presentation, lecturing room, and different personal applications. -
Page 5: Hardware Description
3. Hardware Description The following sections describe the hardware components. 3.1. Top Panel PC to Component POWER 1 Power switch and LED Indicator: When power is turned on the LED will illuminate in green color. When press power switch once to turn the system in standby mode and the LED will illuminate in red color. -
Page 6: Connection And Installation
3.4. Side Panel Switch between 480i and 576i resolution output. 480 i 576 i 4. Connection and Installation Y/Cb/Cr LCD TV 5. Specifications Input resolutions VGA up to 140Hz refresh rate SVGA up to 120Hz refresh rate XGA up to 85Hz refresh rate SXGA up to 60Hz refresh rate UXGA at 60Hz refresh rate Output resolutions... - Page 7 2008.3.7 MPM-CPT386...
- Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw...
