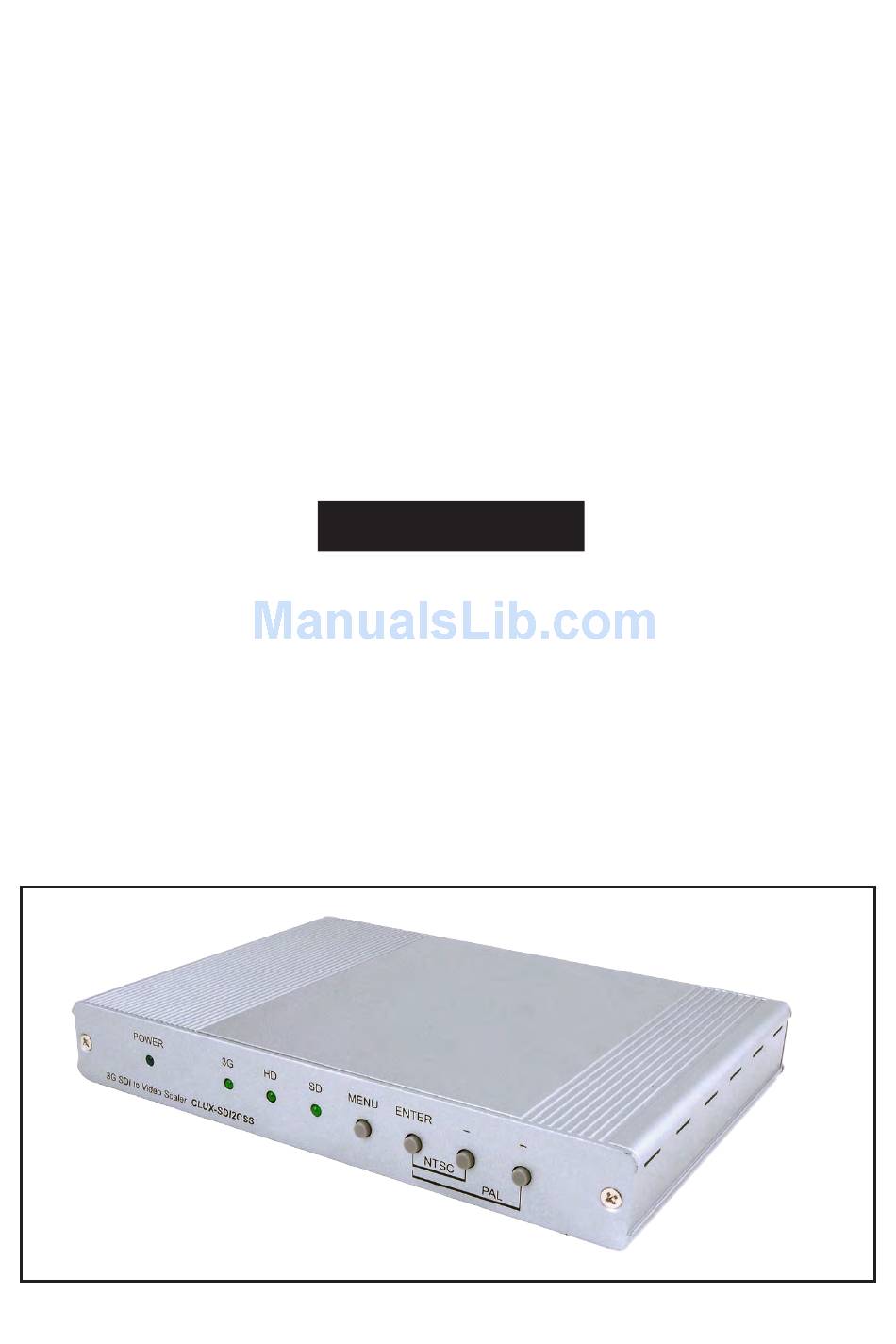

- Page 1 CLUX-SDI2CSS SDI to CV/SV Scaler with Audio Operation Manual CLUX-SDI2CSS...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Front Panel ................Rear Panel .…………………………………..……..…...….… OSD Menu and Function List ....………..…..…..…... 7.1 Display ....…......……………..…..…..…. 7.2 Color ..…..…..............…. 7.3 SDI Audio ..............…..…..…. 7.4 Factory Reset ............…..…..…. -
Page 5: Introduction
1. Introduction The SDI to CV/SV Scaler with Audio allows SD, HD and 3G-SDI signals to be display on CV/SV displays while ensuring high bit rates of 2.970 Gbps gives you fast signal transmission without signal loss. For professional this means that it is now easier to distribute and extend your SDI signal while giving you the ability to display your work on the existing CV/SV displays. -
Page 6: Features
4. Features Operation at 2.970Gbps, 2.970/1.001Gbps, 1.485Gbps, 1.485/1.001Gbps and 270Mbps Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C Equalized and re-clocked loop output Alternative audio output to coaxial and analog 2CH ... -
Page 7: Specifications
5. Specifications SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C 2.970 Gbps and 2.970/1.001 Gbps, 1.485Gbps, SDI Transmission Rates 1.485/1.001Gbps, and 270Mbps Input Port 1 x BNC (SD/HD/3G-SDI) Output Port 1 x BNC (SD/HD/3G-SDI), 1 x CV, 1 x SV, 1 x Coaxial, 1 x R/L RCA Jack Video Output Support NTSC/PAL SDI In/Out Support Timing 480i, 576i, 720p@50/59.94/60, 1080i@50/59.94/... -
Page 8: Operation Controls And Functions
6. Operation Controls and Functions 6.1 Front Panel POWER MENU ENTER NTSC 3G SDI to Video Scaler CLUX-SDI2CSS ① ② ③ ④ ⑤ ⑥ ⑦ ① Power LED: This blue LED will illuminate when the device is connected with power supply. -
Page 9: Rear Panel
6.2 Rear Panel AUDIO OUT S VIDEO VIDEO DC 5V SDI IN SDI OUT COAXIAL ① ② ③ ④ ⑤ ⑥ ① SDI IN: This slot is where you connect the SDI source output for SDI signal sending to be display on screen. ②... -
Page 10: Osd Menu And Function List
7. OSD Menu and Function List 1st Layer 2nd Layer 3rd Layer NTSC Output Full Over Scan Display Under 1 Size Under 2 Letter Box Pan Scan Exit Contrast 0~255(105) Brightness 0~192(96) 0~255(128) 0~255(128) Color 0~255(128) R Offset 0~64(32) G Offset 0~64(32) B Offset 0~64(32) -
Page 11: Display
7.1 Display Output: There are NTSC & PAL available for user’s selection. Size: Adjust the display’s screen size from Full, Over Scan, Under Scan, Letter box or Pan scan to fit the different timing’s display and make the viewing become more pleasure. -
Page 12: Factory Reset
Select SDI audio output from 4 different group and each group contents 2CH. If no audio output is require the audio can also be mute by selecting off. 7.4 Factory Reset Select YES to return to the factory setting. Factory setting on display is at ... -
Page 13: Connection And Installation
8. Connection and Installation Camcorder SDI Monitor/Display TV/Display with CV/SV... -
Page 14: Acronyms
Acronyms Acronym Complete Term Bandwidth 2.97G bps ≈ 3G Serial Digital Interface... - Page 16 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20110127 MPM-CLUXSDI2CSS...
