Summary of Contents for Cypress CLUX-UCEC

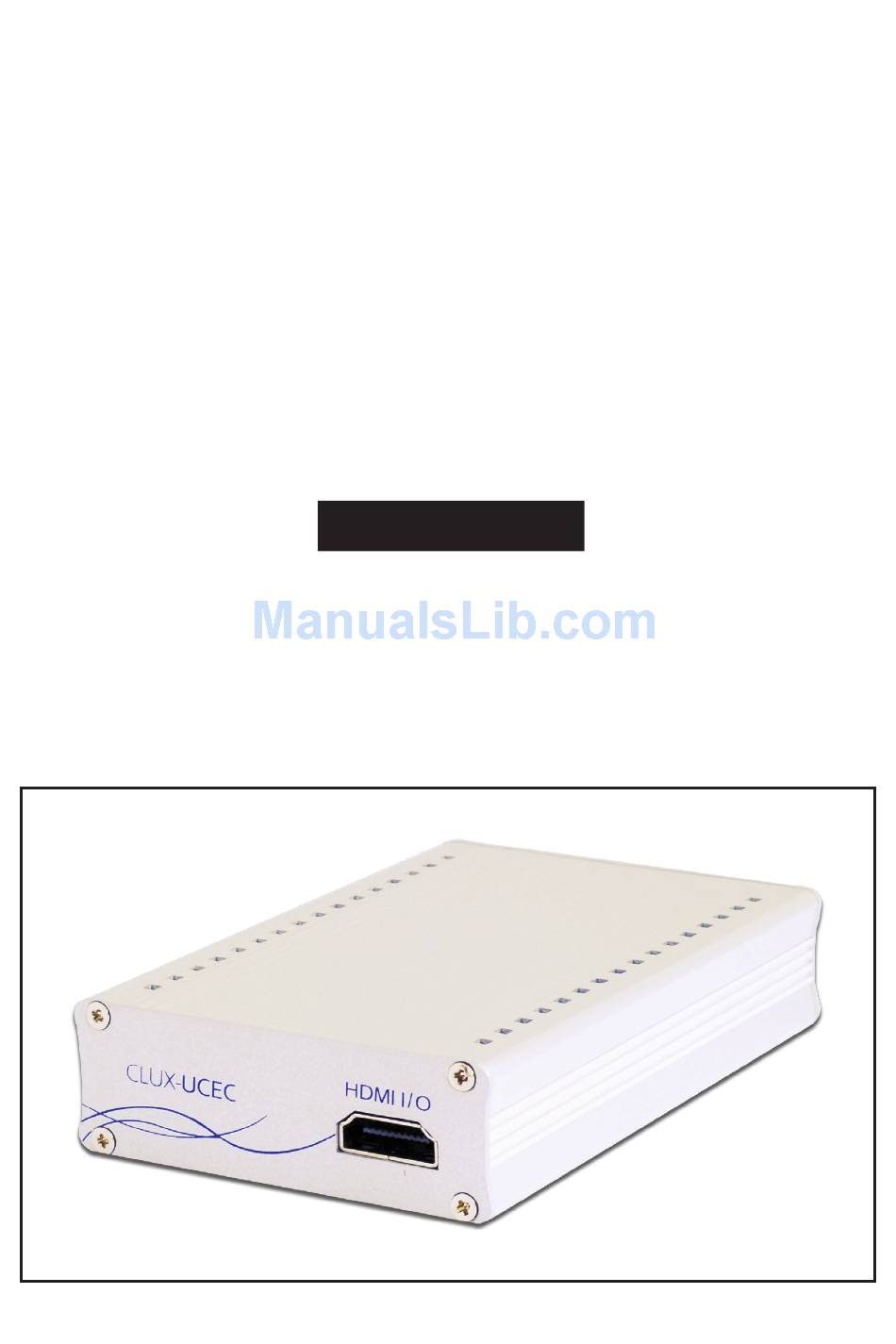

- Page 1 CLUX-UCEC HDMI CEC Control Box Operation Manual CLUX-UCEC...
-
Page 2: Copyright Notice
Cypress also makes no commitment to update or to keep current the information contained in this document. Cypress Technology reserves the right to make improvements to this document and/or product at any time and without notice. Copyright Notice... -
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Front Panel ................Rear Panel .…………………………………..……..…...….… 8. Software installation ……………...……........…… RS-232 Driver Installation ............Hardware Application .………........….… Software Application ............… CEC OP Code .......…..……………..…..…..…... -
Page 5: Introduction
1. Introduction The HDMI CEC Control Box is a convenient USB device allowing users to control various HDMI devices through their PC. Both sources and displays can be controlled, either with a PC or remote control. This device connects to the PC using a mini USB port, allowing plug and play simplicity and providing power for the device itself, so you don ’... -
Page 6: Features
5. Features HDMI v1.3, HDCP v1.1 & DVI v1.0 compliance Supports full CEC functions Plug and play RS-232 over mini USB Power supplied through the mini USB port Supports EDID bypass Compact and stylish design ... -
Page 7: Operation Controls And Functions

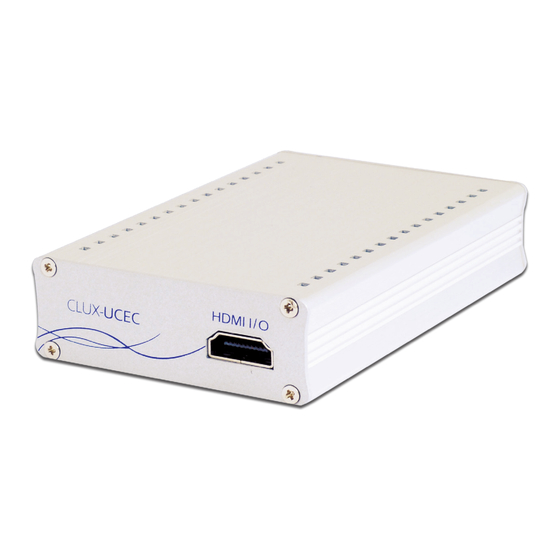

7. Operation Controls and Functions 7.1 Front Panel HDMI I/ O CLUX-UCEC ① ① HDMI input/output: This slot is where you can connect the output port of your HDMI / DVI source (i.e., DVD, set-top box) or the input ports of an HDMI display using a HDMI / HDMI to DVI adaptor cable. -
Page 8: Software Installation
8. Software installation 8.1 RS-232 Driver Installation Step 1: Insert the provided driver CD into your CD-ROM driver, then execute the FIDIBUS file. Follow the on screen instructions to complete the instillation. NOTE: It is not necessary to install this application if users already have existing RS-232 software. - Page 9 Choose “ No, not this time ” and Click “ Next ” . Click “ Browse ” and find “ USB TO RS232 SOFTWAVE ” and click “ Nest> ” .
- Page 10 Click “ Continue Anyway ” button. Click “ Finish ” button Now the PC will show “ Found New Hardware ” with USB Serial Port. This means your device has been detected.
- Page 11 Your PC will re-run the Found New Hardware Wizard, please repeat the same steps for a full installation. Choose “ No, not this time ” and click “ Next ” button.
- Page 12 Choose “ Install from a list or specific location (Advanced) and click “ Next> ” button. Click “ Browse ” and find “ USB TO RS232 SOFTWAVE ” and click “ Next> ” button.
- Page 13 Click the “ Finish ” button and the PC screen will show a confirmation message that advise a complete installation as shown below.
-
Page 14: Software Application
Step 2: Click START from the left bottom window and select Settings → Control panel → Performance and maintenance → System → System Properties → Hardware → Device Manager → Ports (COM & LPT) → USB Serial Port (COM) 8.3 Software Application Step 1: To install this program, please insert the included CD and double click CLUX_UCED_AP.exe. -
Page 15: Cec Op Code
Step 2: When the application launches (see below image) the user can select the following features. 1.RS-232 setting: ComPort designated for the CEC control with its BaudRate transmission, click connect to confirm this setting 2. CEC setting: i.e. DVD player sends active commands to a TV, Data Length would include Data Type (CEC), CEC Header (4F), CEC OPCode (82) and 5bytes of data. - Page 16 0x0D <Text View On> 0x0F <Record TV Screen> 0x1A <Give Deck Status> 0x1B <Deck Status> 0x32 <Set Menu Language> 0x36 <Standby> 0x41 <Play> 0x42 <Deck Control> 0x44 <User Control Pressed> 0x46 <Give OSD Name> 0x47 <Set OSD Name> 0x64 <Set OSD String> 0x80 <Routing Change>...
-
Page 17: Cec Logical Address
10. CEC Logical Address Address Device Recording Device 1 Recording Device 2 STB1 DVD1 Audio System STB2 STB3 DVD2 Recording Device 3 Reserved Reserved Reserved Reserved Free Use Unregistered (as initiator address) Broadcast (as destination address) RS-232 transmission format: Baud Rate: 115200 bps Data Bit: 8 bits Parity: None... -
Page 18: Connection And Installation
11. Connection and Installation Notebook HDMI OUT LCD TV Monitor HDMI IN Blu-ray CLUX-UCEC... -
Page 19: Acronyms
Acronyms Acronym Complete Term Consumer Electronics Control Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Video Graphics Array WUXGA Wide Ultra Extended Graphics Array... - Page 20 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20100108 MPM-CLUXUCEC...
