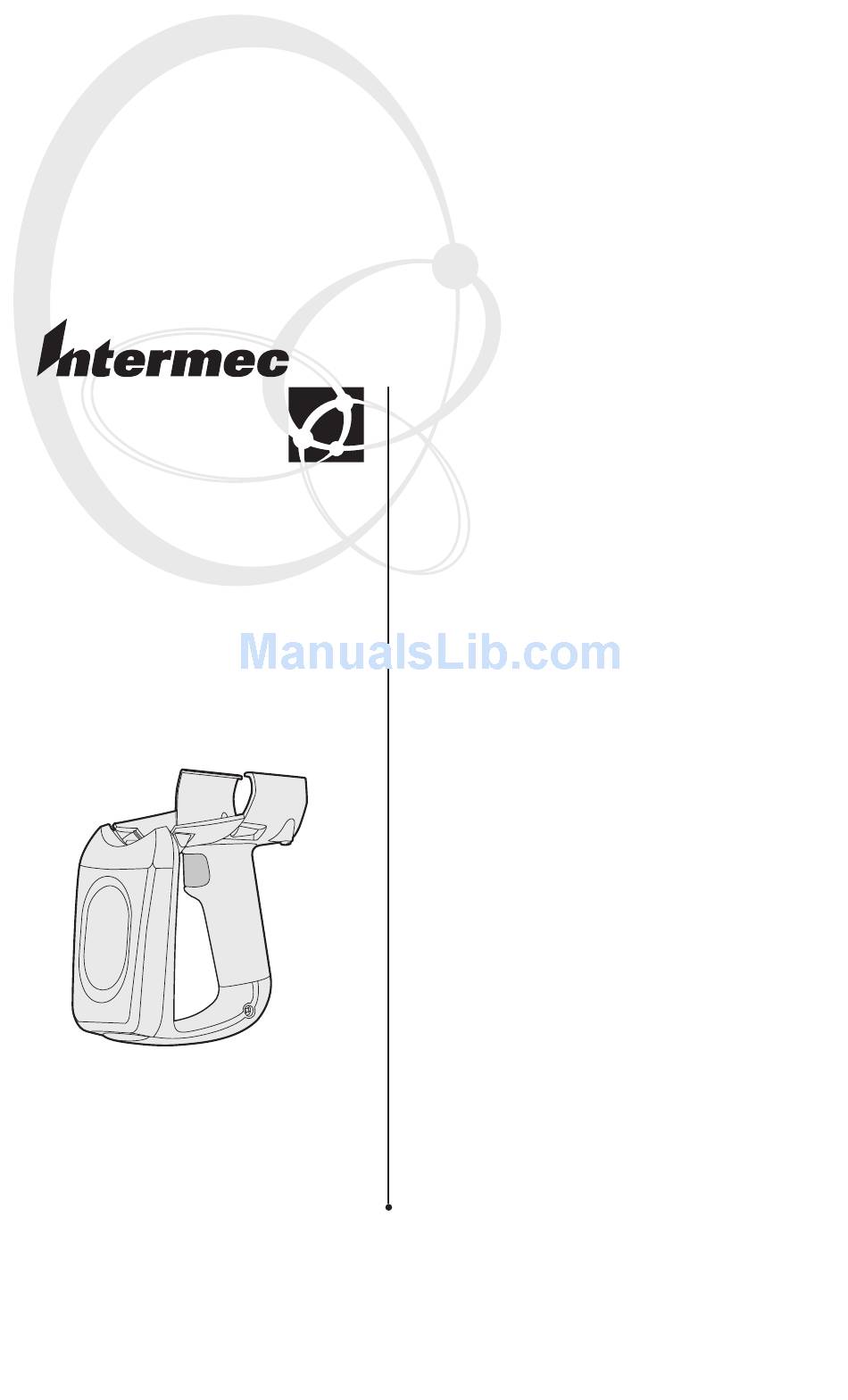

  • Page 1 Instructions IP4 Portable RFID Reader...

  • Page 2: Table Of Contents

    Using the IP4 ........3...

  • Page 3: Introducing The Ip4 Portable Rfid Reader

    Introducing the IP4 Portable RFID Reader The IP4 Portable RFID Reader is an accessory handle for the 700 Series Color mobile computers. Together, the IP4 and 700 Color provide a high-performance mobile RFID solution that allows you to bring the read/write device to the tagged product rather than moving tagged products past a fixed reader.
  • Page 4 To install the battery 1 Insert the battery tab on the top of the battery into the IP4. Battery tab 2 Firmly press the bottom of the battery onto the IP4 until the battery snaps into place. To remove the battery •...

  • Page 5: Attaching Your Ip4 To A 700 Color

    IrDA signal between the 700 Color and your IP4. Lightpipe Note: Do not remove the lightpipe from the IP4. To attach your IP4 to a 700 Color 1 Slide the 700 Color into the IP4 until it clicks into place. IP4 Portable RFID Reader Instructions...

  • Page 6: (Optional) Configuring Your Ip4 As A Keyboard Wedge

    1 Remove the two retaining screws. 2 Hold the 700 Color at the display. 3 While lifting the 700 Color up (away from the IP4), pull the 700 Color forward and out of the IP4. (Optional) Configuring Your IP4 as a Keyboard Wedge You can configure your IP4 as a keyboard wedge to allow the 700 Color to receive data from your IP4 as it would from a keyboard.
  • Page 7 700 Color. For help, see the user’s manual for the 700 Color. To configure your IP4 as a keyboard wedge 1 Fully charge your IP4 battery and attach your IP4 to a 700 Color. 2 On the 700 Color, start Intermec Settings.

  • Page 8: Reading An Rfid Tag

    (yeux, mains, tête) de l'opérateur doivent être à au moins 20 cm du couvercle de l'antenne. To read an RFID tag 1 Position the front of the IP4 within 91 cm (3 ft) of an RFID tag. 2 Pull the trigger.

  • Page 9: Understanding The Ip4 Leds

    Understanding the IP4 LEDs Your IP4 uses LEDs to indicate the status of certain operations. IP4 LEDs: The IP4 LEDs are located on the back of the IP4. IP4 LED Descriptions Icon LED Power (PWR) Host Communications (HOST COMM) RF Power On (RF ON) This LED is green when RF power is...

  • Page 10: Specifications

    Specifications This section contains specifications for the IP4. Environmental Specifications Specification Operating temperature 0°C to 50°C (32°F to 122°F) Storage temperature Relative humidity 869 MHz Frequency Specification Source type Frequency band EIRP/ERP Output power 1 W maximum Modulation Data Rate...
  • Page 11 IP4 Portable RFID Reader Instructions Value At least six tags per second with one to ten tags in the RF field, located at half the maximum reading distances from the IP4 front panel. Read a tag containing 8 bytes of data within 50 ms.

  • Page 12: Patent Information

    There may be other U.S. and foreign patents pending. Worldwide Headquarters 6001 36th Avenue West Everett, Washington 98203 U.S.A. tel 425.348.2600 fax 425.355.9551 www.intermec.com © 2007 Intermec Technologies Corporation. All rights reserved. IP4 Portable RFID Reader Instructions *943-002-004* P/N 943-002-004...
