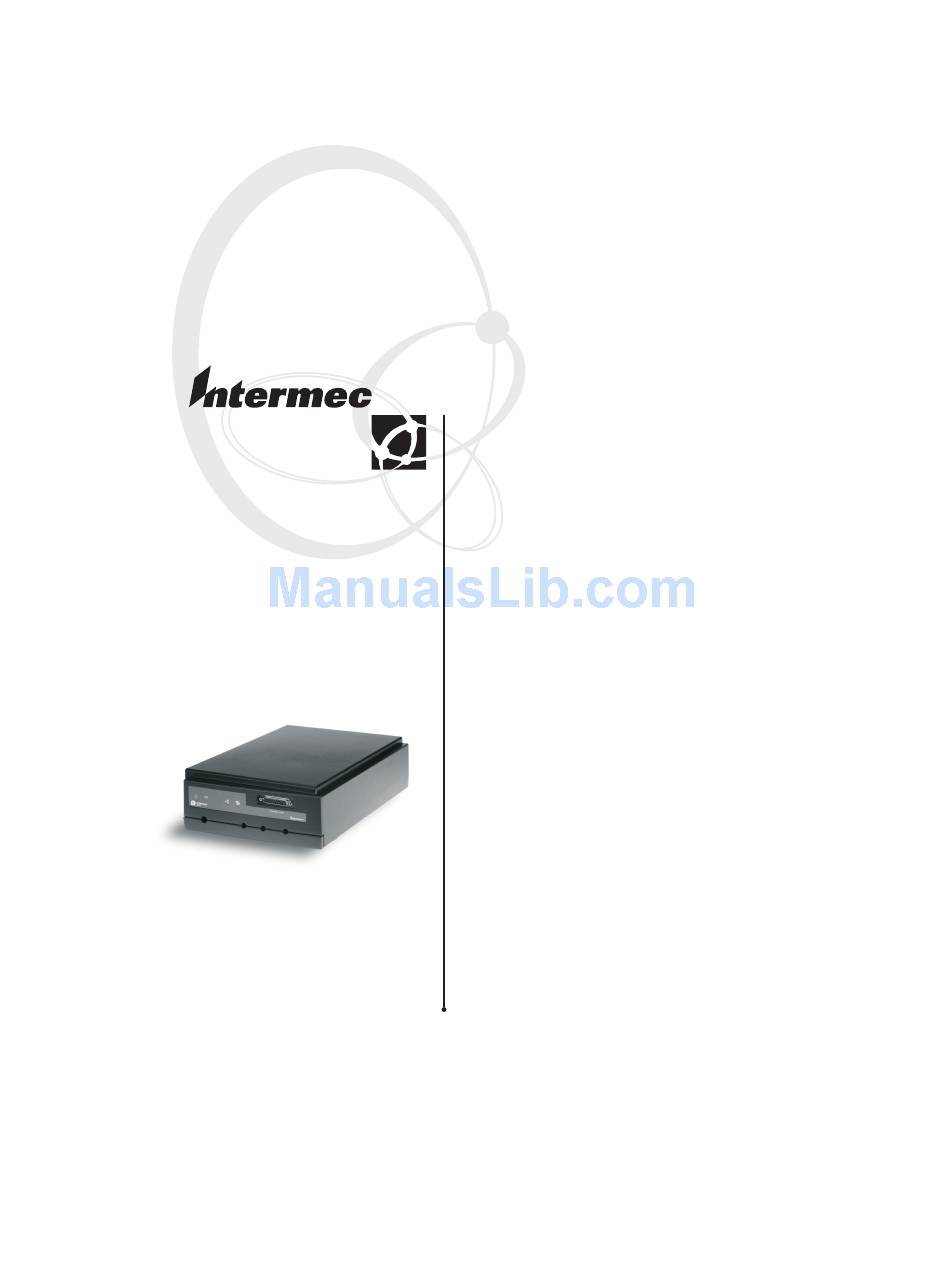

- Page 1 Quick Start Guide IF5 Fixed Reader...
- Page 2 Intermec Technologies Corporation. © 2004-2006 by Intermec Technologies Corporation. All rights reserved. The word Intermec, the Intermec logo, Norand, ArciTech, Beverage Routebook, CrossBar, dcBrowser, Duratherm, EasyADC, EasyCoder, EasySet, Fingerprint, i-gistics, INCA (under license), Intellitag, Intellitag Gen2, JANUS, LabelShop, MobileLAN, Picolink, Ready-to-...
-
Page 3: Table Of Contents
Contents What Is the IF5? ... 5 Unpacking the IF5 ... 6 What You Need ... 6 Learning About the IF5 ... 7 Understanding the Front Panel Ports... 7 Understanding the Rear Panel Ports ... 8 Understanding the LEDs... 9 Configuring the IF5... - Page 4 IF5 Fixed Reader Quick Start Guide...
-

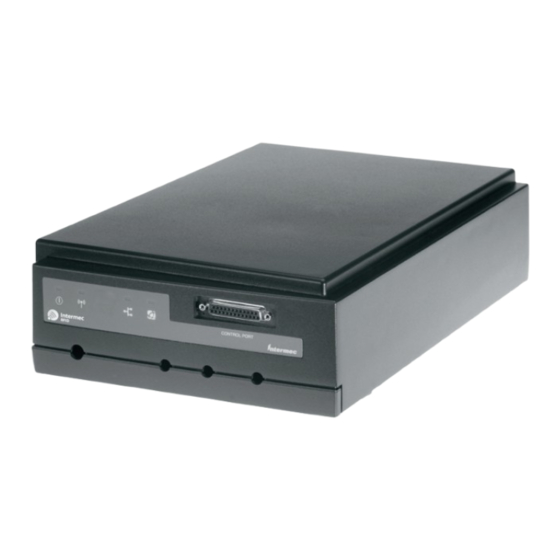

Page 5: What Is The If5
The embedded controller can be configured to connect the IF5 to your Ethernet or wireless network. This quick start guide explains the IF5 ports and LEDs and how to connect the IF5 to your network. IF5 Fixed Reader... -
Page 6: Unpacking The If5
Unpacking the IF5 Save the IF5 box and shipping material in case you need to ship or store the IF5. The IF5 documentation packet includes radio safety compliance statements and this quick start guide. What You Need To install and connect the IF5, you need these items: •... -
Page 7: Learning About The If5
To access the AC power, Ethernet, and serial ports, unscrew the two thumbscrews on the underside of the cable access door to remove the door. Cable access door Ethernet port AC power port IF5 Front Panel IF5 Fixed Reader Quick Start Guide Control port Serial port... -
Page 8: Understanding The Rear Panel Ports
Ethernet port. Use a standard Ethernet cable to connect the IF5 to your wired network. Serial RS-232 serial port. Use a DB9 null-modem cable (P/N 059167) to connect the IF5 to a desktop PC for configuration or maintenance. Control General purpose input/output (GPIO) interface. Use a standard DB25 cable (P/N 236-057-001) to connect the IF5 to the GPIO Terminal Block accessory. -
Page 9: Understanding The Leds
Understanding the LEDs The front panel of the IF5 includes four LEDs that indicate status. LEDs LED Descriptions Icon LED Name Description Power Remains on after the IF5 boots. Wireless Flashes when a frame is transmitted or communication received on the 802.11g radio port. -
Page 10: Configuring The If5
DHCP server. For help, follow the next procedure. You also need to configure the IF5 if: • you need to assign a static IP address to the IF5 for a wired or wireless network connection. • you need to connect to a secure network. - Page 11 4 Press Enter. At the username prompt, type 5 Press Enter. At the password prompt, type 6 Press Enter. The IF5 RFID Reader Configuration menu appears. 7 Press the down arrow key to select 802.11g Radio, and then press Enter. The 802.11g Radio settings list appears with Node Type set to Disabled.
-
Page 12: Connecting The If5
HyperTerminal window. 15 Disconnect the null-modem cable and AC power cable from the IF5. The IF5 is now ready to be connected to your network. Continue with the next section, "Connecting the IF5." Connecting the IF5 After you have made any necessary configuration settings, you can connect the IF5 to your network. -
Page 13: Using A Web Browser Interface
6 For an Ethernet network, connect the Ethernet cable to your network. For a wireless network, continue with the next step. 7 Connect the IF5’s AC power cord to an AC outlet. As soon as you apply power, the IF5 boots and the green Power LED turns on. -
Page 14: Where To Go From Here
To view the IF5 web page 1 On your desktop PC, open a web browser. 2 Type the IF5’s IP address in the Address field and press Enter. The IF5 login screen appears. 3 Enter your username and password in the entry fields. The... -
Page 15: Specifications
You may need additional information when working with the IF5 in your data collection system. Please visit our web site at www.intermec.com to download PDF files of our current manuals. To order printed versions of Intermec manuals, contact your local Intermec representative or distributor. - Page 16 Worldwide Headquarters 6001 36th Avenue West Everett, Washington 98203 U.S.A. tel 425.348.2600 fax 425.355.9551 www.intermec.com IF5 Fixed Reader Quick Start Guide *930-069-004* P/N 930-069-004...
