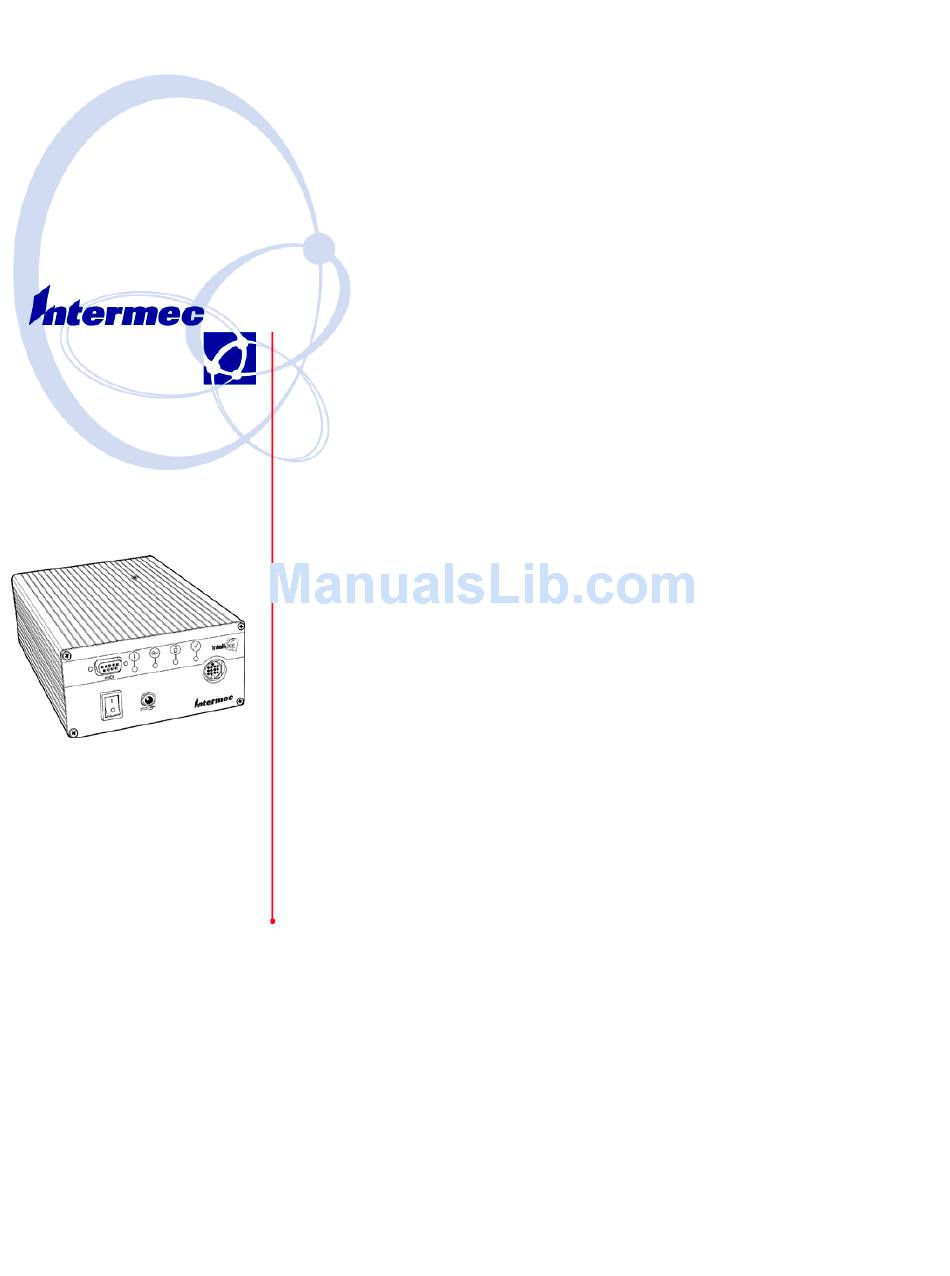

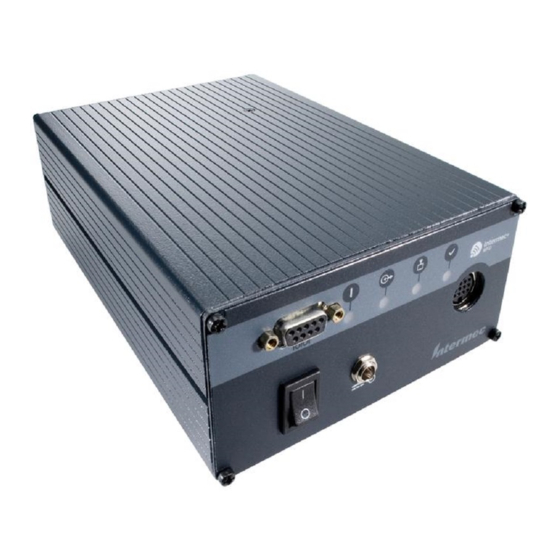

- Page 1 Quick Start Guide IF4 865-868 MHz Reader...
-
Page 2: Packing List
Pin Number Power Requirements Power comes in from 8 to 10 volts DC. Your 865-868 MHz Reader uses less than 2.4 amps. Intermec supplies 9 volts DC at 2.4 amps from Intermec power supply, p/n: 851-067-002. User I/O A general purpose I/O (Input/Output) connector provides sig- nal lines in and out of the reader allowing monitoring and/or control of external devices or functions. - Page 3 1 μA is used un- til the input exceeds the 0 to +5 volt input range. There is also a weak (100 kohm) pull-up to +5 volt on each input. IF4 865-868 MHz Reader Quick Start Guide Definition GPIO IN0...
- Page 4 RF exposures beyond the limits established for this equipment. Antenna Installation Ensure that you read the above warning before installing the antennas and using your Reader product. Reader to antenna cable IF4 865-868 MHz Reader Quick Start Guide Mounting bracket...
- Page 5 20 cm. (8 inches) or farther from the cover of the antenna assembly. Shipping Door #1 A single antenna in a portal may be sufficient in applications where there is a known tag orientation. IF4 865-868 MHz Reader Quick Start Guide Shipping Door #2...
- Page 6 Connecting the Antenna to the Reader 1 Connect the antenna cable to a port. 2 Connect an SMA terminator (Intermec p/n 345-005-001) to any port that does not have an antenna attached. Each port must have either an antenna or a terminator connected.
- Page 7 Reader communicating with host, LED flashes as data transfer occurs. Reader searching for tags Reader communicating with a tag, LED flashes as transfer occurs. IF4 865-868 MHz Reader Quick Start Guide LEDs position (left to right) 0, 1, 2, 3 Auxiliary I/O connector...
-
Page 8: Troubleshooting
2. Ensure reader is connected to your computer. 3. Ensure computer is plugged into AC outlet and computer is On. 4. Ensure tag is within range of antenna. 5. Call Intermec Technical Support 1-800-755-5505 (option 2). Product Specifications Dependent upon operating conditions and demands expected. If used in a normal office environment with good read conditions, you could expect to read up to 50 tags per second. -
Page 9: Environmental Specifications
Dispatch Rates RFID tag identification rate RFID tag data exchange rates Write Range Write range IF4 865-868 MHz Reader Quick Start Guide Spec Detail 8.25 in. x 5.30 in. x 2.9 in. 38.4 oz. (1.1 kg) Spec Detail 865.7-867.5 MHz Spec Detail 2.0 W (e.r.p.) -
Page 10: Global Services And Support
Serial Reader Global Services and Support Warranty Information To understand the warranty for your Intermec product, visit the Intermec web site at http://www.intermec.com and click Service & Support. The Intermec Global Sales & Service page appears. From the Service & Support menu, move your pointer over Support, and then click Warranty. -
Page 11: Telephone Support
Intermec manuals, contact your local Intermec representative or distributor. Visit the Intermec technical knowledge base (Knowledge Cen- tral) at http://intermec.custhelp.com to review technical infor- mation or to request technical support for your Intermec prod- uct. Telephone Support These services are available from Intermec Technologies Corpo- ration. - Page 12 Worldwide Headquarters 6001 36th Avenue West Everett, Washington 98203 U.S.A. tel 425.348.2600 fax 425.355.9551 www.intermec.com e 2004 by Intermec Technologies Corporation. All rights reserved. IF4 866-868 MHz Reader Quick Start Guide *962-054-118B* P/N 962-054-118B...
