IP3/IP4 Lightpipe Kit Instructions

The Lightpipe improves the IrDA communication reliability and

speed between your reader and the mobile device. This kit

includes the following contents:

• IP3/IP4 Reader Lightpipe with pre-applied adhesive

• IP3/IP4 Reader Lightpipe Instructions

1 Remove the existing gold reflector tape from your Reader. It is

recommended that you use rubbing alcohol to remove any

remaining reflector tape residue. However, do not use any sol-

vent remover that will harm the Reader plastic.

2 Remove the existing IR Reflector label on your mobile device

(if applicable). Ensure all label residue is removed from that

location.

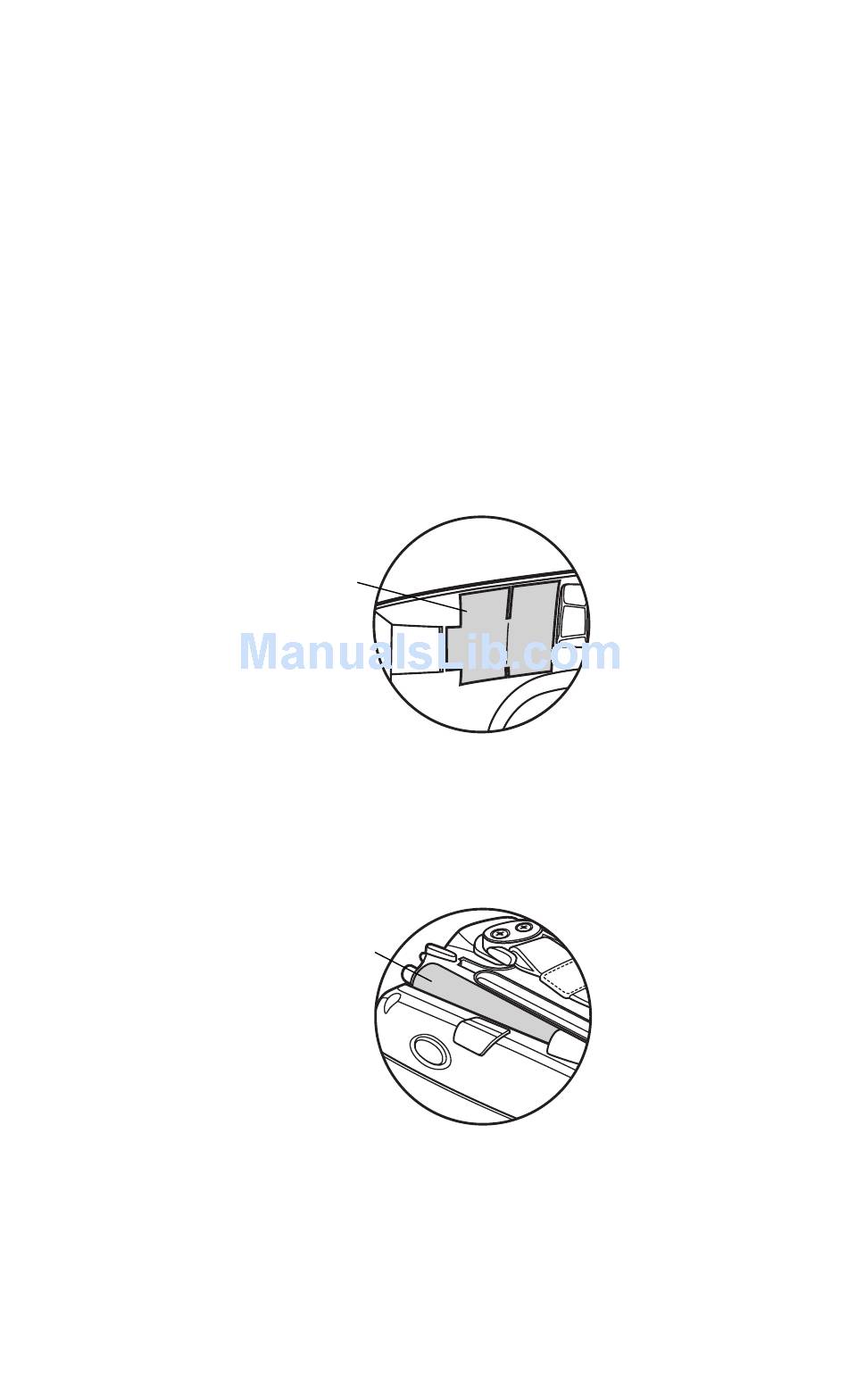

Reader gold

reflector tape

Mobile device

reflector label

Table of Contents

Do you have a question about the IP3 and is the answer not in the manual?

Page 1 The Lightpipe improves the IrDA communication reliability and speed between your reader and the mobile device. This kit includes the following contents: • IP3/IP4 Reader Lightpipe with pre-applied adhesive • IP3/IP4 Reader Lightpipe Instructions Reader and Mobile Device Surface Preparation 1 Remove the existing gold reflector tape from your Reader.
Page 2 Lightpipe Installation Note: It is very important that the new Lightpipe is positioned exactly as shown in the following illustra- tion. This helps ensure proper reflecting of the Infrared signals between your mobile device and your reader. 1 Remove the backing from the adhesive on the Lightpipe assembly.
