HOOKE ROAD BXG.4009-1 Manual

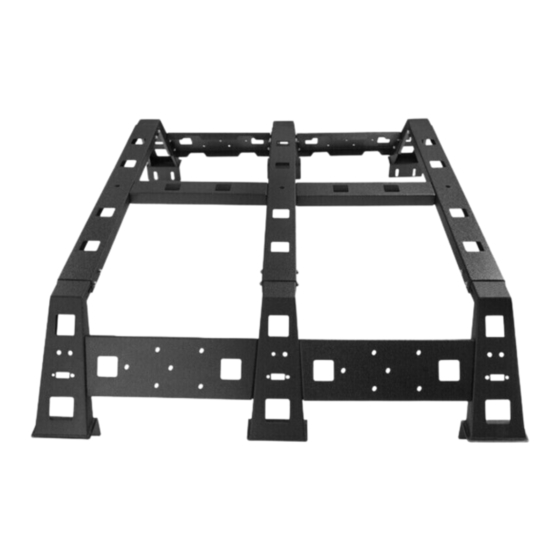

Tacoma bed rack
Hide thumbs

Advertisement

Quick Links

Download this manual
Tacoma Bed Rack
(1)Contents:
(2)Tools required:
A.12mm Wrench；
B.5mm Hex Socket Wrench;
C.19mm Socket Wrench;
BXG.4009-1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BXG.4009-1 and is the answer not in the manual?

Questions and answers

Related Manuals for HOOKE ROAD BXG.4009-1

Summary of Contents for HOOKE ROAD BXG.4009-1

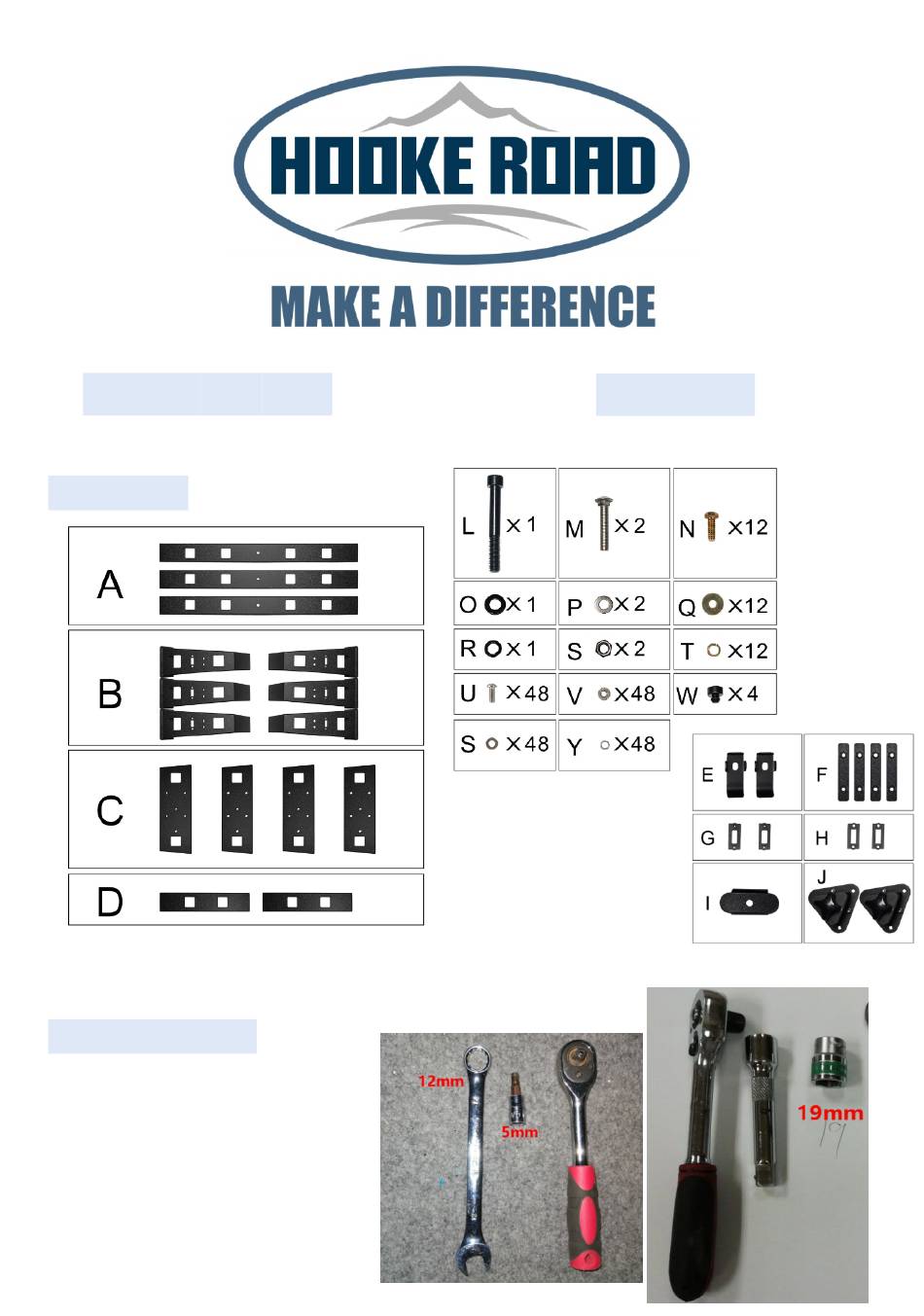

  • Page 1 Tacoma Bed Rack BXG.4009-1 (1)Contents: (2)Tools required: A.12mm Wrench； B.5mm Hex Socket Wrench; C.19mm Socket Wrench;...
  • Page 2 About 1.5 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.4009-1), please scan the QR code...

  • Page 3: Installation Instruction

    (4)Installation instruction: Step 1: Install the PART”A” & PART”B” with PART”I”,PART”J”,PART”Q”, PART”L”.As shown below. (1)Install the PART”A” & PART”B”. (2)Tighten it with PART”I”,PART”J”,PART”Q”, PART”L”.
  • Page 4 Step 2: Install the PART”A” & PART”B” again.Then we got 3 of PART”A” & PART”B”.
  • Page 5 Step 3: Install the PART”C” & PART”D” on the PART”A” & PART”B” with PART”I”, PART”J”,PART”Q”, PART”L”. And tighten it by the wrench. PART”D” PART”C” PART”D”...
  • Page 6 Step 4: Repeat “Step 3” to install the another PART”C” & PART”D” on the PART”A” & PART”B”.As shown below.
  • Page 7 Step 5: Install the PART”E” on the vehicle.Both side is the same.As shown below. Driver side Passenger side Step 6: After ”Step 5”,then install the Bed Rack on the vehicle.
  • Page 8 Attention 1: Install the Bed Rack on the vehicle more back or more front is up to you.
  • Page 9 Step 7: Install the PART”H” with PART”Q” & PART”R” to tighten the Bed Rack. Step 8: Install the passenger side in the same method.
  • Page 10 Step 9: Installation completed. Attention 2: The PART”M”,PART”T”, PART”U” are use for install the spare tire.
  • Page 11 Attention 3: The PART”N”,PART”O”, PART”P” & PART”S” are use for install the JACK. As shown below.And if no need to install the JACK.Then just forget it or keep it in somewhere.
  • Page 12 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase. Hooke Road to find your parts...
