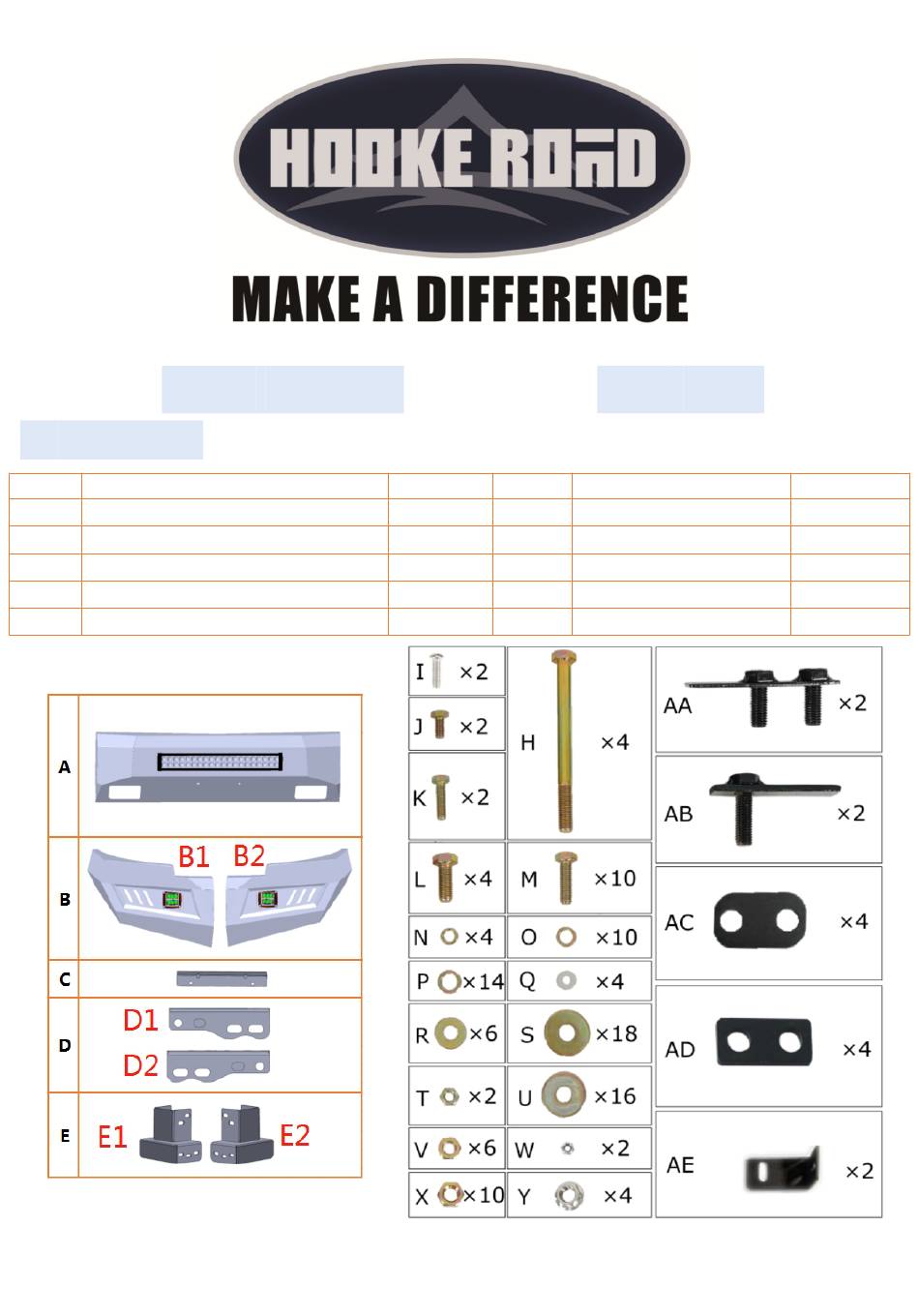

Front Bumper
(1) Contents:
Qty
Part Name
1
Front Bumper Assembly
C
License Plate Bracket
D1/D2
Tow Hook Extension
E1
Drive/Left Frame Mounting Bracket
E2
Passenger/Right Frame Bracket
Size(mm)
Qty
AA×2
AB×2
AC×4
AD×4
AE×2
BXG.9021
Part Name
12mm Double Bolt Plates
12mm Single Bolt Plates
Frame Bracket Spacers
Tow Hook Spacers
Left Bar Light "L" Bracket
Size(mm)
Advertisement
Related Manuals for HOOKE ROAD BXG.9021
Summary of Contents for HOOKE ROAD BXG.9021
- Page 1 Front Bumper BXG.9021 (1) Contents: Part Name Size(mm) Part Name Size(mm) Front Bumper Assembly AA×2 12mm Double Bolt Plates License Plate Bracket AB×2 12mm Single Bolt Plates D1/D2 Tow Hook Extension AC×4 Frame Bracket Spacers Drive/Left Frame Mounting Bracket AD×4...
-
Page 2: Tools Required
Part Name Size(mm) Part Name Size(mm) H×4 Hex Bolt M12*140 Q×4 Flat Washer M6*20*1 I×2 Button Head Socket Cap Bolts Screws M6*20 R×14 Flat Washer M8*24*2 J×2 Hex Bolt M8*16 S×18 Flat Washer M12*32*3 K×2 Hex Bolt M8*25 T×2 Hex Nuts L×4 Hex Bolt M12*30... - Page 3 Driver Side Installation Step 2: Unplug fog lights and move the wiring harness away from bumper before the bumper removal.
- Page 4 Step 3: From behind the bumper, remove the hex nuts, (see arrow), attaching the bumper bracket to the double bolt plate. Step4: Slide bumper assembly off of end of frame. Remove tow hooks if equipped. Warning: Do not crawl under-bumper unless bumper unless the bumper is properly supported on blocks or stands or the bumper may fall.
- Page 5 On models without tow hooks, skip to Step 8. Step 5: 12mm Single Bolt Plate and 12mm Double Bolt Plate. Step 6: Insert long end on Bolt Plates into open end of frame first then attach the Tow Hook Bracket (If equipped) to the frame and Bolt Plates. Single Bolt Plate Double Bolt Plate 12mm Flat Washers...
- Page 6 Step 7: Slide Spacer between each side of tow hook. Attach tow hook to Bracket with factory hardware. Step 8: Slide driver/left Frame Bracket over end of frame. Insert Bracket Spacer between Bracket and inner side of frame.
- Page 7 Step 9: Slide driver/left Frame Bracket over end of frame. Insert Bracket Spacer between Bracket and inner side of frame. Step 10: Driver/left complete bracket installation.
- Page 8 Step 11: Attach Bumper to Frame Brackets. Driver/left side illustrated. 10mm × 35mm Hex Bolts 10mm Flat Washers 10mm Lock Washers 10mm Hex Nuts Warning: Do not crawl under bumper unless the bumper is properly supported on blocks or stands or the bumper may fall. 10mm ×...
- Page 9 Step 13: Attach License Plate Bracket to Bumper. 6mm×20mm Button Head Screws 6mm Flat Washers 6mm Nylon Lock Nuts Step 14: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product!
- Page 10 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase. Hooke Road to find your parts...
