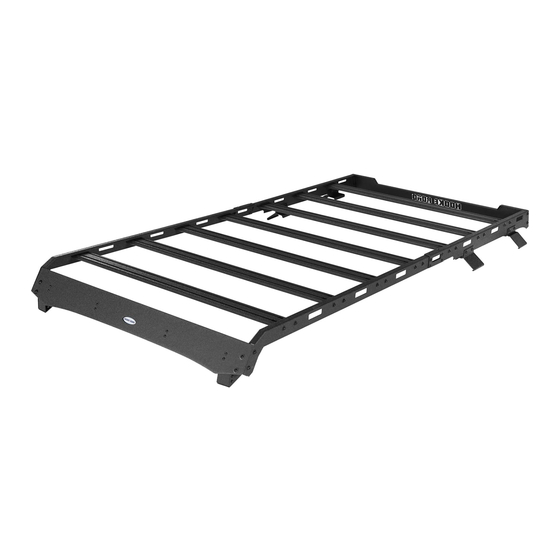

Roof Rack

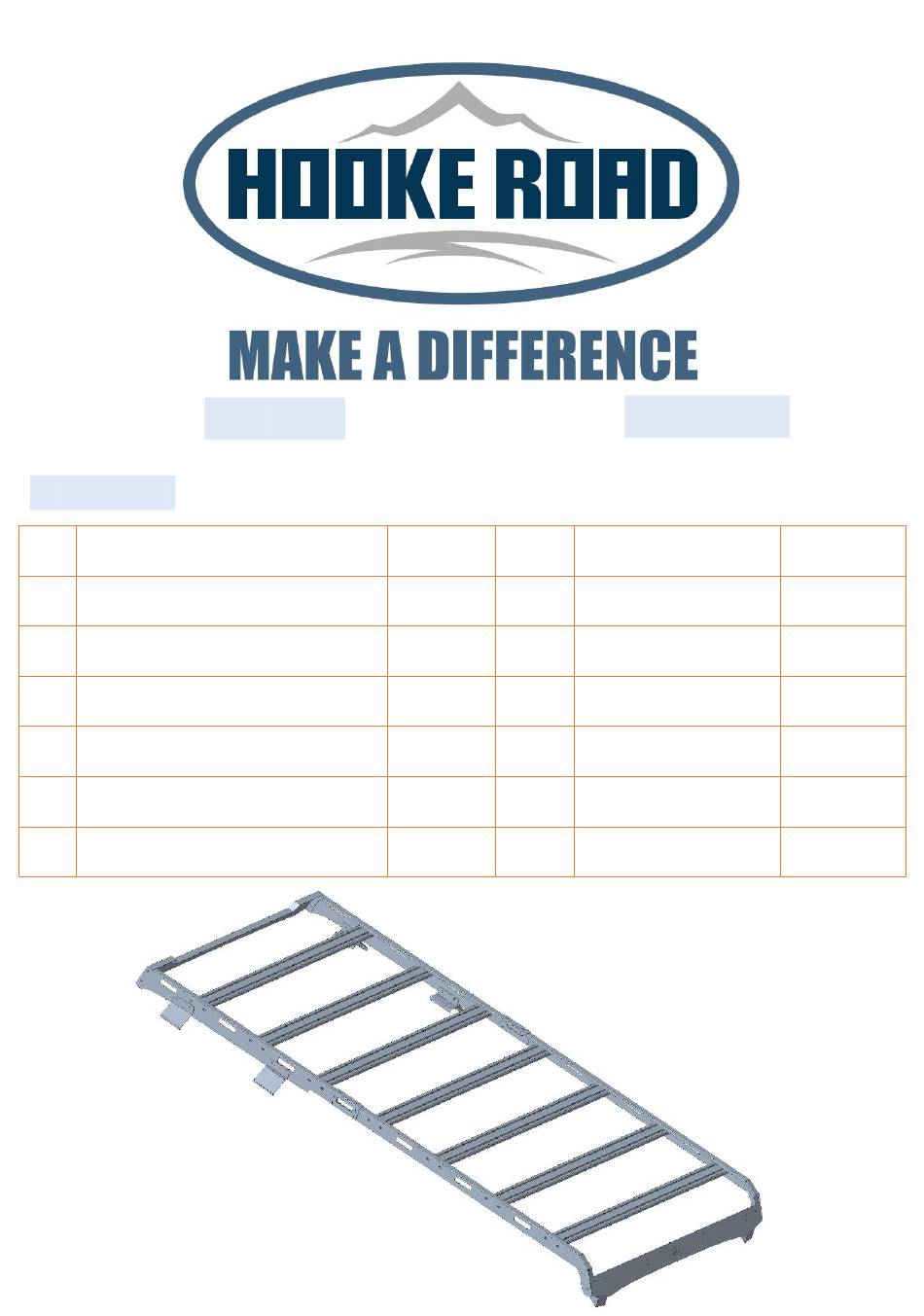

(1) Contents:
Qty
Part Name
1
Roof Rack Assembly
40
Button Head Socket Cap Bolts Screws
8
Button Head Socket Cap Bolts Screws
12
Button Head Socket Cap Bolts Screws
8
Button Head Socket Cap Bolts Screws
4
Button Head Socket Cap Bolts Screws
Size(mm)
Qty
48
M8*16
12
M8*25
8
M6*16
20
M6*10
16
M5*8
8
BXG.8906-S
Part Name
Flat Washer
Flat Washer
Flat Washer
Flange Hex Lock Nuts
Flange Hex Lock Nuts
Tee Sliding Slot Nuts
Size(mm)
M8*20*1
M6*16*1
M6*12*1
M8
M6
M6
Advertisement
Related Manuals for HOOKE ROAD BXG.8906-S
Summary of Contents for HOOKE ROAD BXG.8906-S
- Page 1 BXG.8906-S Roof Rack (1) Contents: Part Name Size(mm) Part Name Size(mm) Roof Rack Assembly Flat Washer M8*20*1 Button Head Socket Cap Bolts Screws M8*16 Flat Washer M6*16*1 Button Head Socket Cap Bolts Screws M8*25 Flat Washer M6*12*1 Button Head Socket Cap Bolts Screws...
- Page 3 About 2 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.8906-S), please scan the QR code.
-
Page 4: Installation Instruction
(4) Installation instruction: Step 1: Assemble the rack on the ground. Start by mounting the Rear Fairing & the Rear Side Side Rails. For this, use the Button Head Socket Cap Bolts Screws (M8*16), Flat Washer (M8*20*1), Flange Hex Lock Nuts (M8). Step 2: Install the three Crossbars. - Page 5 Step 3: Distinguish the mounting brackets from the back. As the picture shown. Step 4: Before installing half of luggage rack on the car, please install those brackets into the roof rack with the Button Head Socket Cap Bolts Screws (M8*25), Flat Washer (M8*20*1) , Flange Hex Lock Nuts (M8).
- Page 6 Step 5: Put half of luggage rack into your vehicle. Snap the bracket into the groove.
- Page 7 Step 6: Assemble the rack on the ground. Mounting the short crossbar into the Front Fairing. For this, use the Button Head Socket Cap Bolts Screws (M6*10), Flat Washer (M6*12*1), Tee Sliding Slot Nuts (M6). Make sure the machined slot in the rail of the crossbar is facing the front fairing. Step 7: Assemble the Front Roof Mount Brackets with the Button Head Socket Cap Bolts Screws (M5*8), and then install the Front Roof Mount Brackets into the front fairing with the Button Head Socket Cap Bolts Screws (M8*16), Flat...
- Page 8 Step 8: Remove the cover above the front glass of the original vehicle, Put the front fairing into your vehicle. Install it into your vehicle with the Flange Hex Lock Nuts (M6). Step 9: Assemble the front rack in your vehicle front roof. Install the front side side rails into the front fairing.
- Page 9 Step 10: Install the four Crossbars. For this, use the Button Head Socket Cap Bolts Screws (M8*16), Flat Washer (M8*20*1). Step 11: Install the roof rack (Front Part + Rear Part) . Use the connecting brackets with the Button Head Socket Cap Bolts Screws (M6*16), Flat Washer (M6*16*1), Flange Hex Lock Nuts (M6).
- Page 10 Step 12: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
Need help?
Do you have a question about the BXG.8906-S and is the answer not in the manual?
Questions and answers

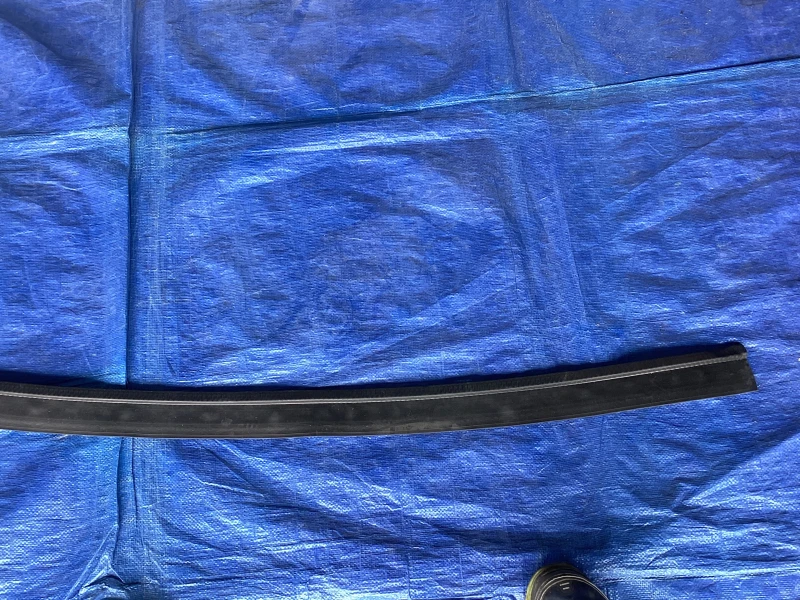

Where does the rubber band that probably hooks on some edge’ go?
