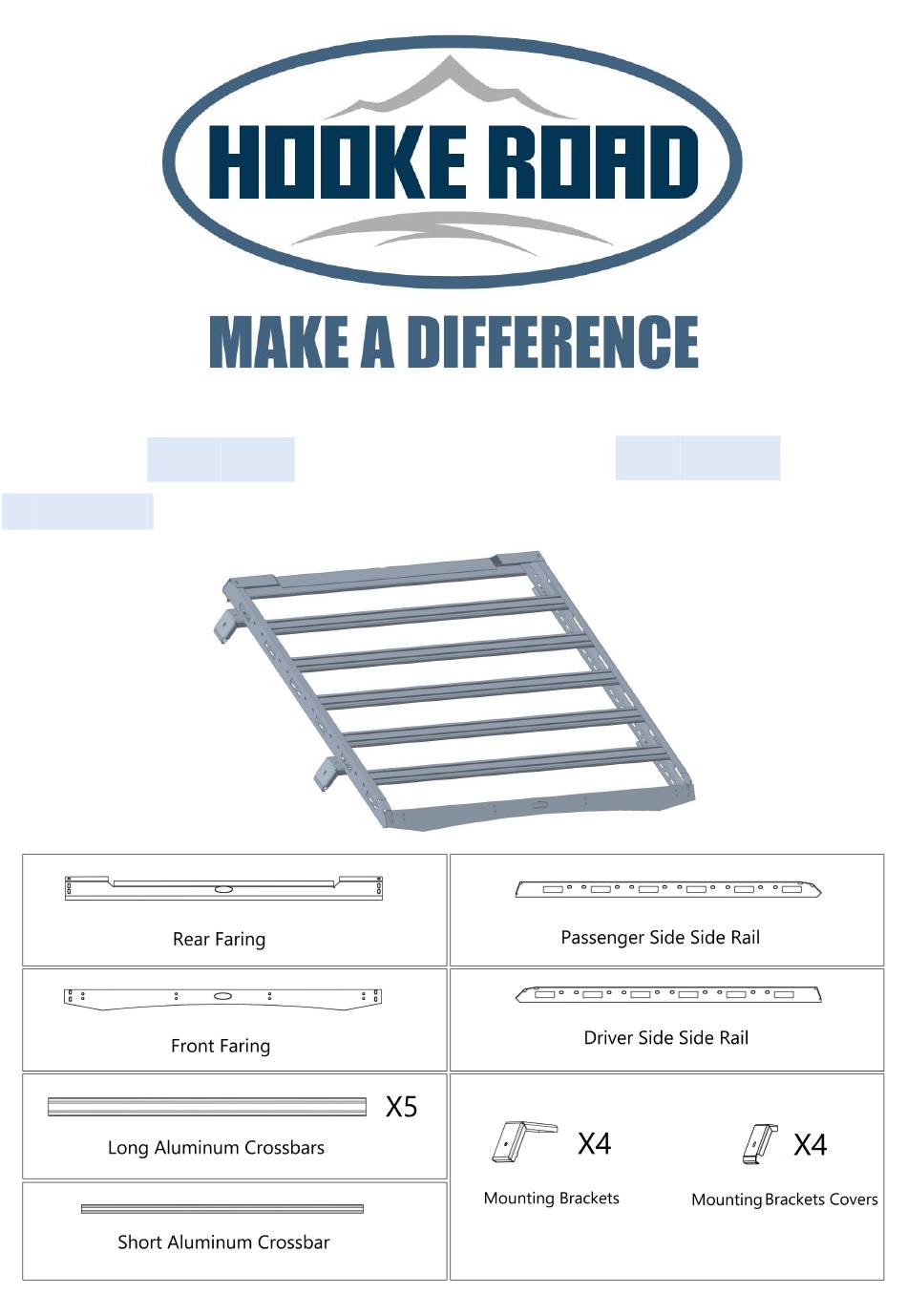

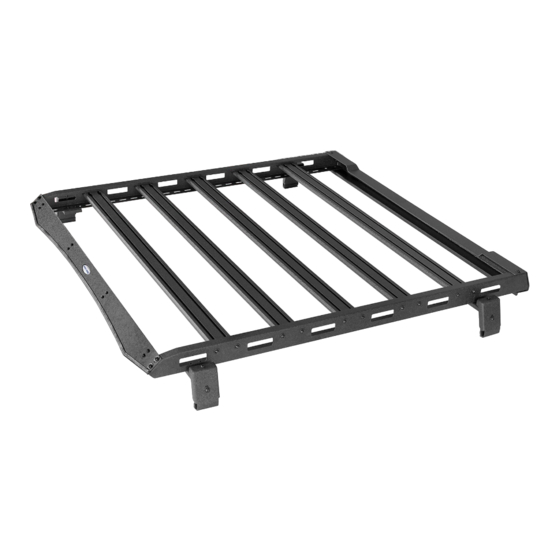

- Page 1 BXG.3047-S Roof Rack (1) Contents:...
- Page 2 Part Name Size(mm) Picture Button Head Socket Cap Bolts Screws M8*25 Button Head Socket Cap Bolts Screws M8*20 Button Head Socket Cap Bolts Screws M6*10 Flat Washer M8*20*1.5 Flat Washer M6*12*1 Flange Hex Lock Nuts Tee Sliding Slot Nuts Mounting Brackets Rubber Mat 79*15*6 Mounting Brackets Covers Rubber Mat 75*15*6...
- Page 3 About 1.5 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.3047-S), please scan the QR code.
- Page 4 (4) Installation instruction: Step 1: Assemble the rack on the ground. Start by mounting the short aluminum crossbar into the Front Faring. For this, use the Button Head Socket Cap Bolts Screws (M6*10), Flat Washer (M6*20*1), Tee Sliding Slot Nuts (M6). Make sure the machined slot in the rail of the crossbar is facing the front faring.
- Page 5 Step 3: Next, mount the front and rear fairings. To do this, use the Button Head Socket Cap Bolts Screws (M8*20), Flat Washer (M8*20*1.5), Flange Hex Lock Nuts (M8). When mounting the front fairing, adjust it all the way up to avoid contact with the roof and leave the bolts loose enough to be able to make adjustments once it is on the roof of the vehicle.
- Page 6 Step 4: Next, Snap the Rubber Mat (the covers length is shorter than the inside brackets covers) into the mounting brackets & the mounting brackets covers. Step 5: Next, install the front mounting brackets. For this use the Rivet Nut Plate (M8), the Button Head Socket Cap Bolts Screws (M8*25), Flat Washer (M8*20*1.5).
- Page 7 Step 6: Finally, install the the mounting brackets covers. Please adjust the position of the mounting bracket first, so that it can be smoothly stuck in the roof rain groove. Install the mounting bracket covers. Use the Button Head Socket Cap Bolts Screws (M8*25), Nylon Round Spacer (20*20*7) in the upper hole and the Button Head Socket Cap Bolts Screws (M8*25), Flat Washer (M8*20*1.5) in the side hole.
- Page 8 Step 7: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
