height-adjustable bench
Section:
HEIGHT ADJUSTABLE BENCH
Description:
WIRE BRIDGE
NOTE: Mounting Plate- A is assembled to the Frame link Assembly (N07-7481), refer HABH_120 install guide
Wire Bridge (HWBEWT)
A
B
Installation Guides
Oct 2022
Date:
HABH_122

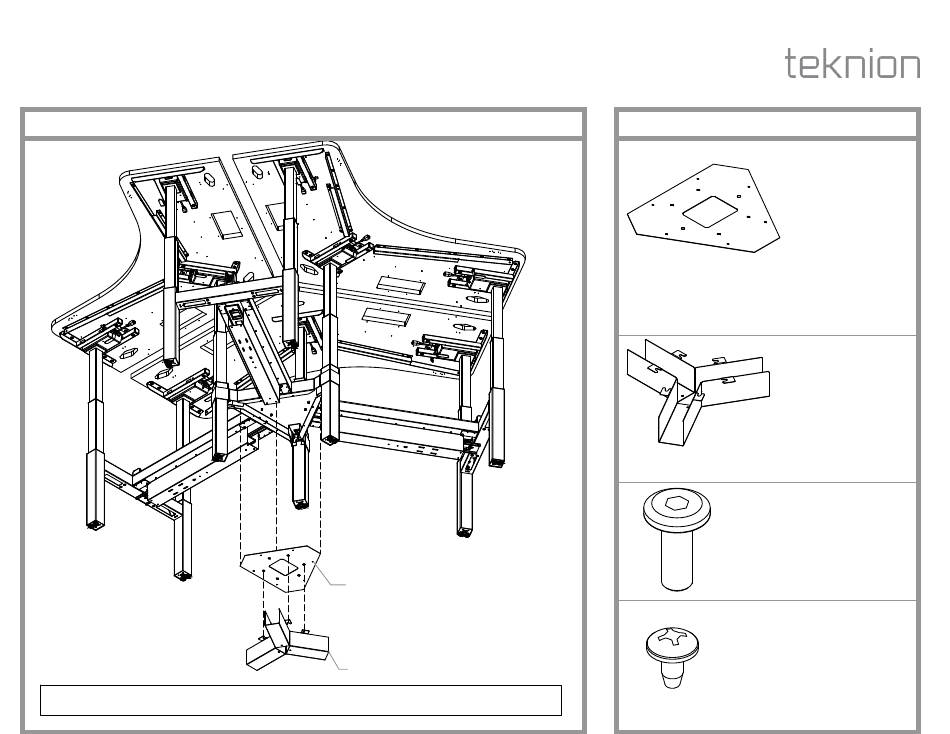

Part and Product Identification
A - Wire Bridge Mounting Plate
Assy, 120
(N01-7566) x 1
B - Wire Bridge, 120
(A16-10909) x 1
C - MK_M6x1.0x16mm_ST_ZN
_MH_SK
(E01-1409) x 6
D - ST-#10-32x0.375_NI_TS_QD
(E07-0084) x 6
Page No:
1 of 4
Rev. No: 0
Advertisement
Table of Contents
Related Manuals for Teknion HWBEWT
Summary of Contents for Teknion HWBEWT
- Page 1 Date: Page No: 1 of 4 Description: WIRE BRIDGE HABH_122 Rev. No: 0 Wire Bridge (HWBEWT) Part and Product Identification A - Wire Bridge Mounting Plate Assy, 120 (N01-7566) x 1 B - Wire Bridge, 120 (A16-10909) x 1 C - MK_M6x1.0x16mm_ST_ZN...
- Page 2 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 2 of 4 Description: WIRE BRIDGE HABH_122 ATTACH WIRE BRIDGE MOUNTING PLATE STEP 1: Attach Wire Bridge Mounting Plate to Frame Link Assembly (N01-7481). NOTE: Similar step can be used for both Fixed (HWBFYT2F) and Height Adjustable Bench (HWBFYT9E)
- Page 3 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 3 of 4 Description: WIRE BRIDGE HABH_122 ATTACH WIRE BRIDGE, 120 NOTE: Shown only one Wire Bridge, 120 for illustration, follow the same steps for other 2 Wire Bridge, 120. NOTE: Don't tighten the Fastner (E01-1409) Double-Sided Spine Tray STEP 2A: Insert the Wire Bridge into the Double-Sided Spine tray and place fastener (E01-1409) in the Mounting Plate (N01-7566)
- Page 4 height-adjustable bench Installation Guides Section: HEIGHT ADJUSTABLE BENCH Oct 2022 Date: Page No: 4 of 4 Description: WIRE BRIDGE HABH_122 SECURE WIRE BRIDGE NOTE: Shown only one Wire Bridge, 120 for illustration, follow the same steps for other 2 Wire Bridge, 120. STEP 2A: Slide the Wire Bridge into the Fastner (E01-1409) using the groove provided in the Wire bridge and secure the Wire bridge NOTE: Similar step can be used for both Fixed (HWBFYT2F) and Height Adjustable Bench (HWBFYT9E)
