Chapter 1— Installation

Memory Cartridge

The EasyCoder C4 is fi tted with a built-in fl ash memory where 214K
is available to the user for storing forms, graphics, and fonts (see
Appendix 1 for details). The built-in memory can be expanded using an
exchangeable memory cartridge with 1MB fl ash memory and/or 256K
SRAM.
When fi tting or removing a memory cartridge, the power to
the printer must be off!

Installation of Memory Cartridge

Ensure that the On/Off switch on the printer is off (0).
1
Open the top cover by pressing the two locks on either side.
2
Remove the cartridge slot cover located to the left of the media roll.
3
Be careful not to drop it inside the printer.
Ensure that the switch at the front short side of the cartridge is in its
4
lower position.

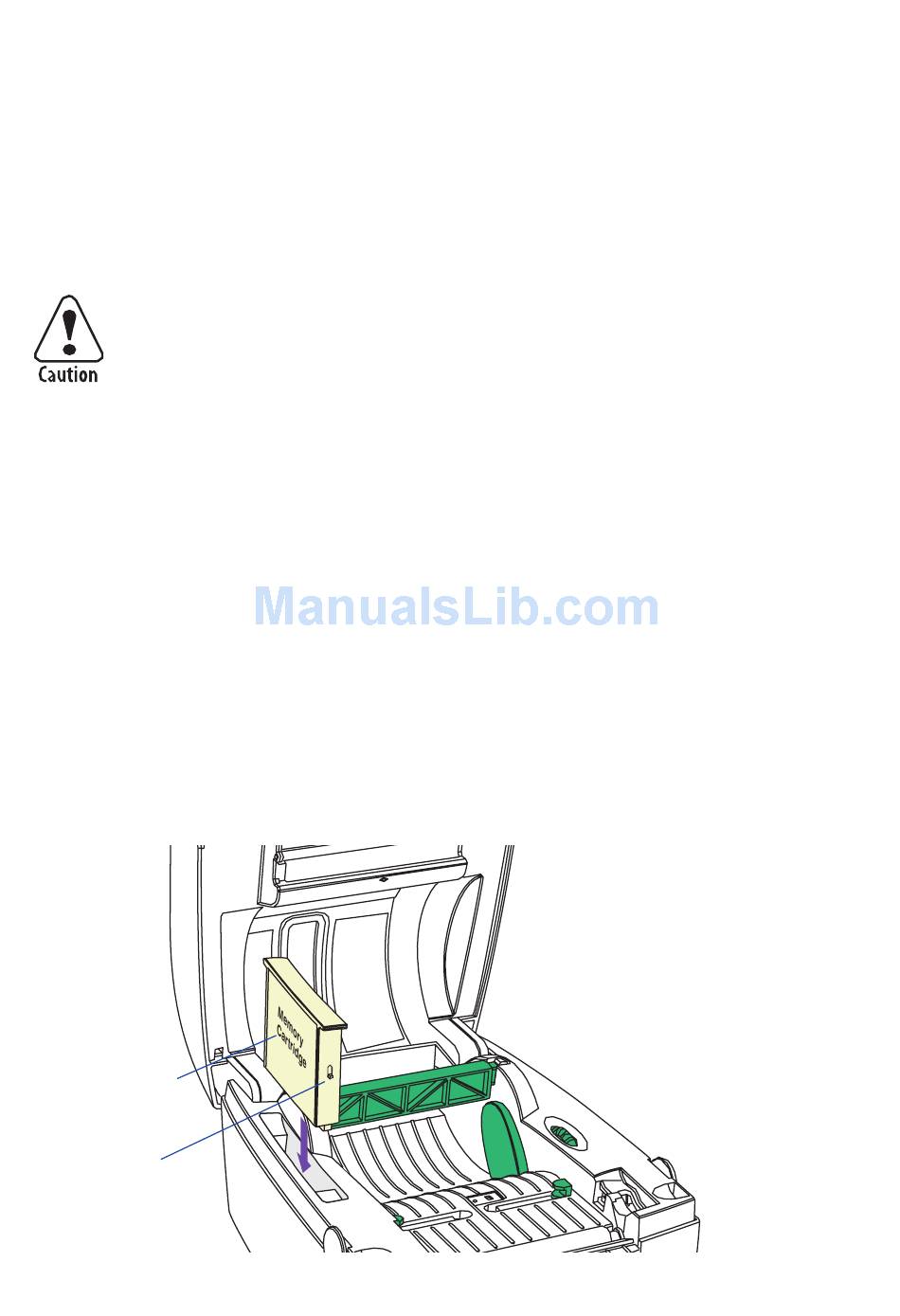

Insert the memory cartridge into the cartridge slot. Its slightly curved
5
shape ensures that the cartridge can only be fi tted correctly. Push
fi rmly to seat the cartridge.
Firmly close the top cover and switch on the power.
6
Insert memory
cartridge
Switch down
4 Intermec EasyCoder C4—User's Guide
