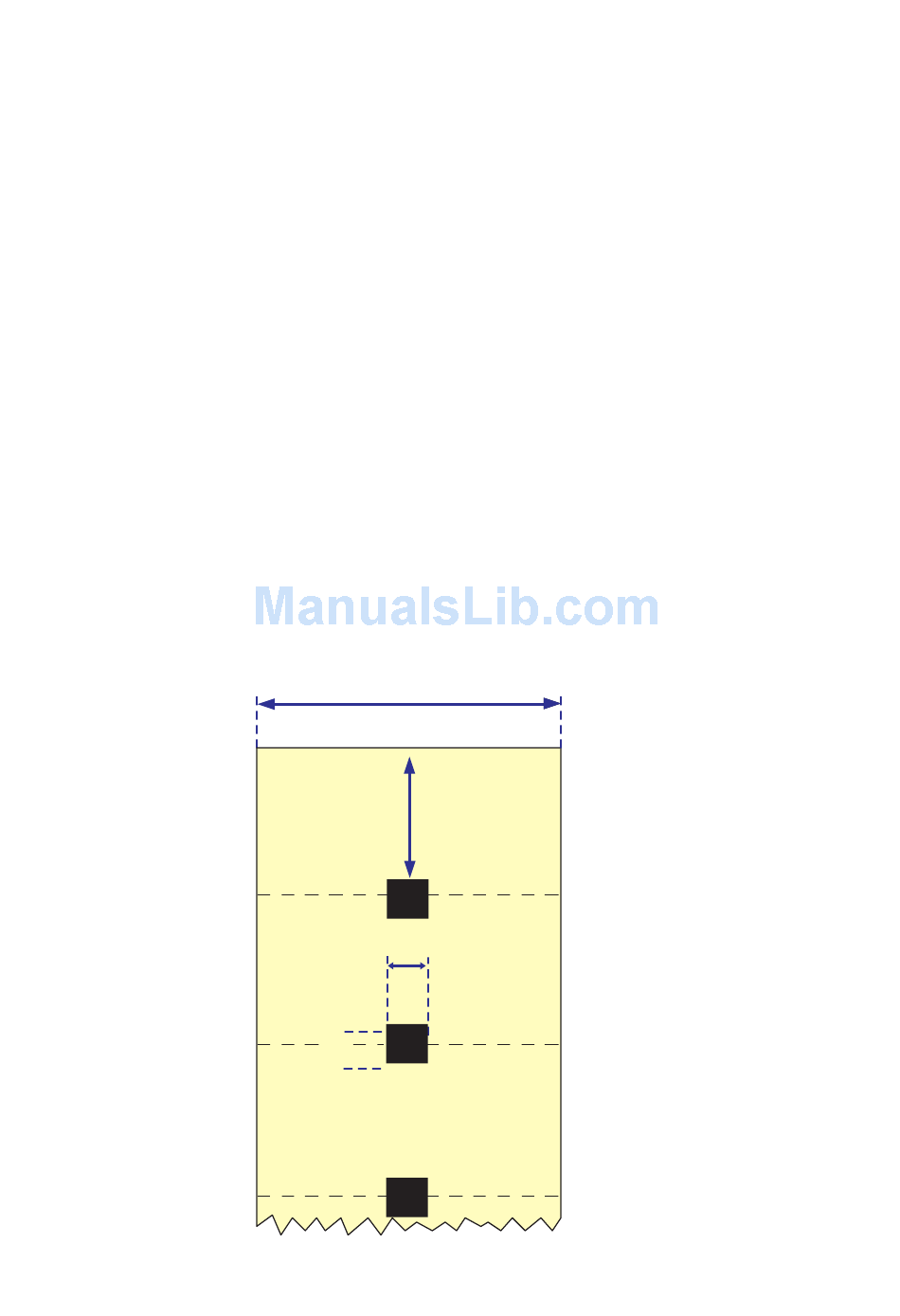

Tags and Strip with Black Marks

← a → Tag or strip width:
Maximum:
Minimum:
← b → Tag length:
Minimum:
← c → Detection slot width:
← c → Black mark width:
Minimum:
← d → Black mark height:
Maximum:
Minimum:
The black mark sensor is offset 10 mm (0.394 inches) to the right of the center of the
media path.
Max. refl ectance 5% at 940 nanometer. Carbon black.
42
116.0 mm
25.0 mm
6.35 mm
28 mm
10 mm
3 mm
a
b
c
d
TICKETS,TAGS, &
CONTINUOUS STRIP
Intermec EasyCoder C4—User's Guide
(4.57 inches)
(1.00 inches)
(0.25 inches)
(1.10 inches)
(0.39 inches)
0.012 inches)
