Chapter 2— Operation
Media Compartment

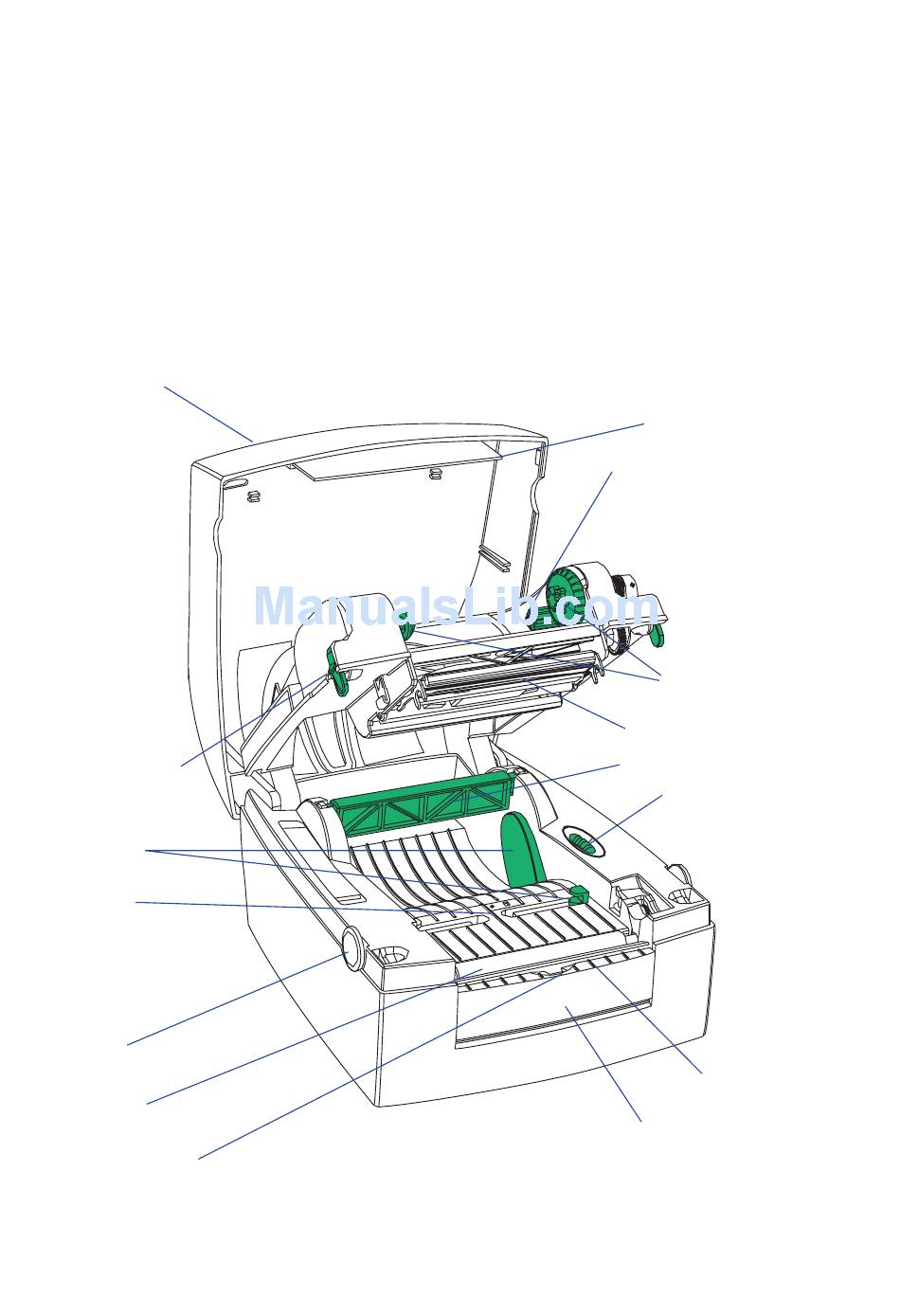

The media compartment accommodates the media supply and, in case
of thermal transfer capable printers, also the transfer ribbon supply (see
illustration below).
In dedicated direct thermal printers, the top cover and the print
mechanism are combined into a single unit.
Top cover
Ribbon compart-
ment release
Adjustable
edge guides
Label gap/
black mark
sensor
Top cover
release
Platen roller
Label taken sensor
12
Intermec EasyCoder C4—User's Guide
Tear bar
Ribbon supply hub
Ribbon
rewind hub
Print mechanism
Media roll spindle
Edge guide
adjustment
wheel
Peel-off bar
Peel-off
mechanism
or paper cutter
