Tear-Off Operation
Open the printer's top cover by pressing the release buttons on both
1
sides and folding the cover upwards/rearwards.
Pull up the spindle and remove possible remaining media or empty
2
label roll core.
Place the spindle into the core of a fresh media roll. Rotate the
3
spindle according to the inner diameter of the media roll core (see
markings on the spindle).
Wind the green edge guide wheel towards the front of the printer so
4
you can fi t the media roll between the guides.

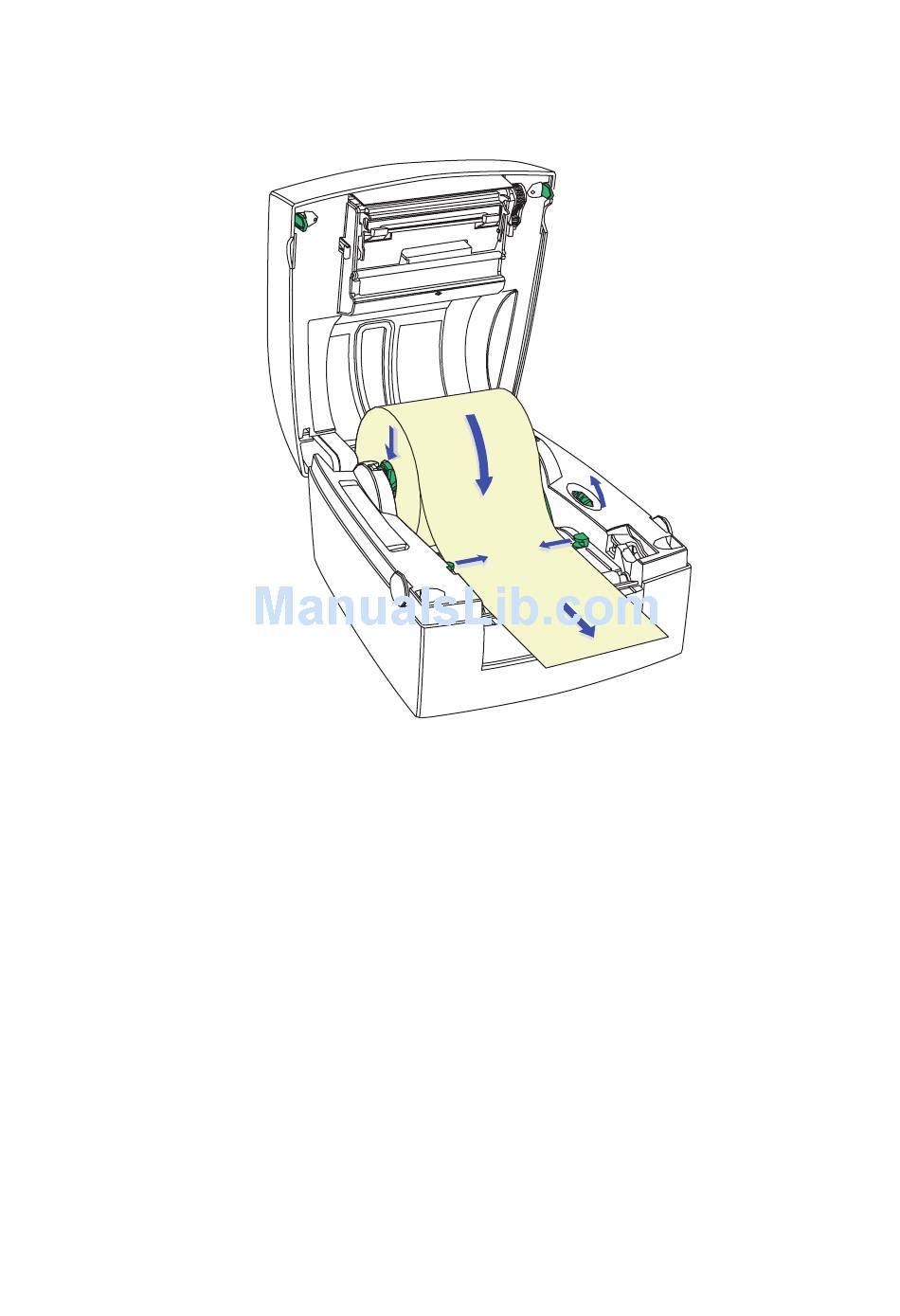

Place the media roll and spindle in the media compartment and snap
5
the spindle into the slots on either side.
Wind the green edge guide wheel towards the rear of the printer so
6
the rear edge guides just touch the roll without actually breaking its
rotation.
