Chapter 2— Operation
Wind the green edge guide wheel towards the rear of the printer so the
7
rear edge guides just touch the label roll without actually breaking its
rotation.
Thread the labels through the slits in the front edge guides.
8
Peel away the labels from the fi rst 10 cm (4 inches) or so of the liner.
9

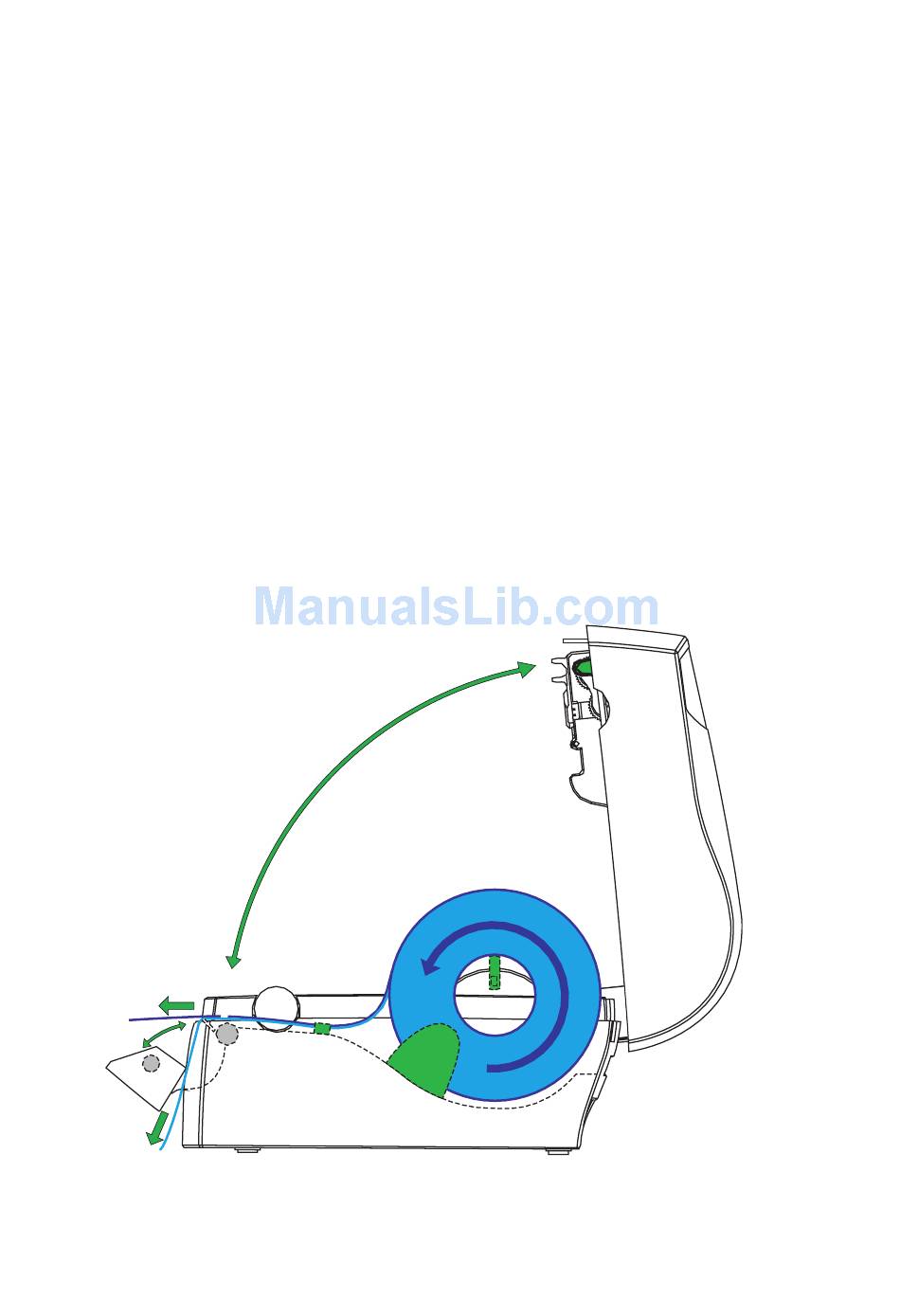

Thread the liner around the peel-off bar and insert it inside the peel-
10
off mechanism so it protrudes from the slot below the mechanism.
Hold the labels while pulling at the liner so it becomes tight, then
11
close the peel-off mechanism.
Firmly close the top cover.
12
If loading labels for the fi rst time or if changing from another type or
13
size of media, perform a Label Gap Sensor Adjustment as described
on page 24. Else, tap the Feed key either 4 times or until the indicator
lamp glows green.
If the printer did run out of labels while printing, the printing will
14
automatically be resumed.
