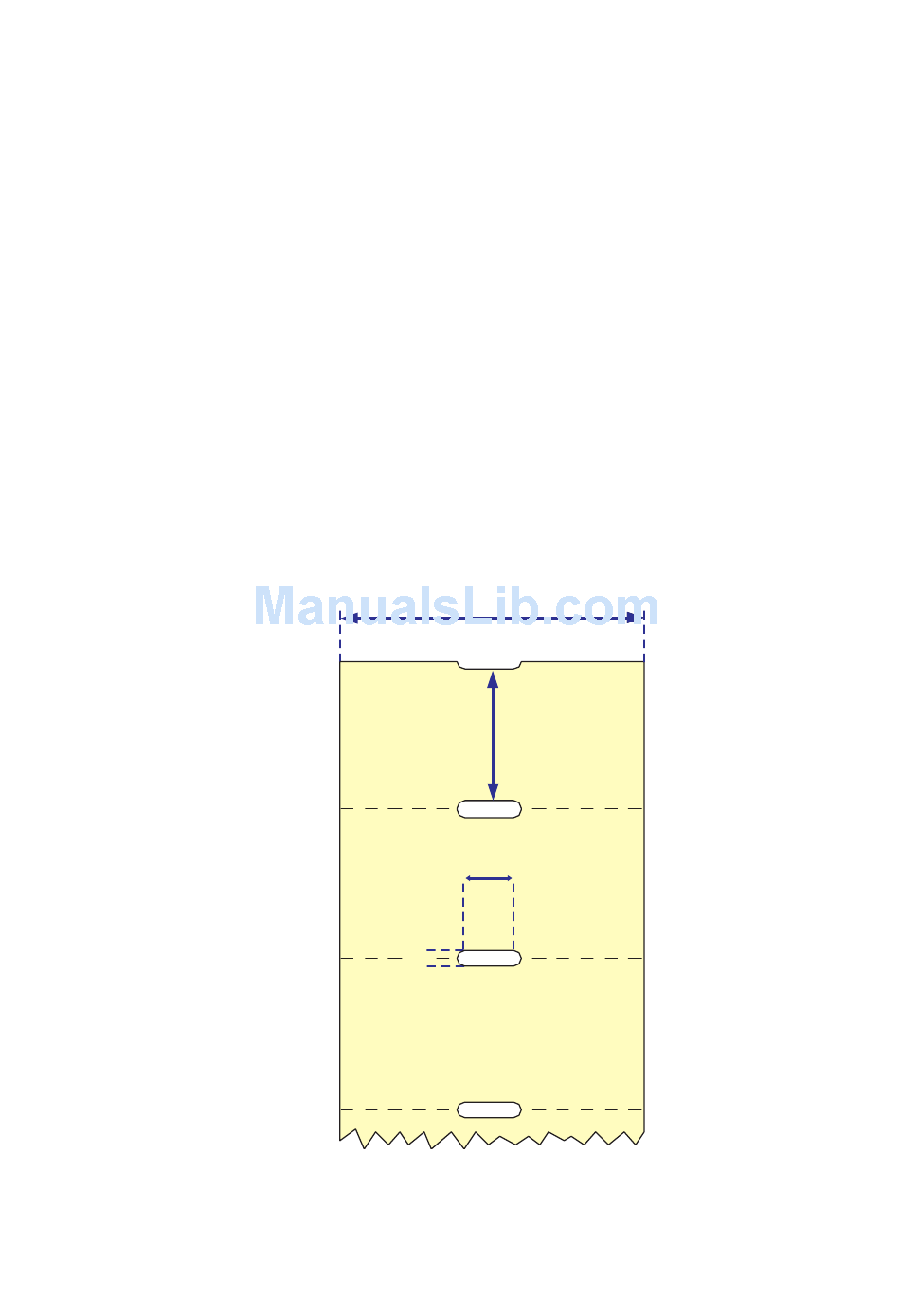

Tags and Strip with Slots

← a → Tag or strip width:
Maximum:
Minimum:
← b → Tag length:
Minimum:
← c → Detection slot width:
Minimum:
← d → Detection slot height:
Maximum:
Minimum:
The label gap sensor is offset 4.5 mm (0.177 inches) to the right of the center of the
media path.
Intermec EasyCoder C4—User's Guide
Appendix B— Media Specifi cations
116.0 mm
25.0 mm
6.35 mm
14 mm
10 mm
1 mm
a
b
c
d
TICKETS,TAGS, &
CONTINUOUS STRIP
(4.57 inches)
(1.00 inches)
(0.25 inches)
(0.55 inches)
(0.39 inches)
(0.08 inches)
