Intermec EasyCoder C4 User Manual page 30

Chapter 2— Operation

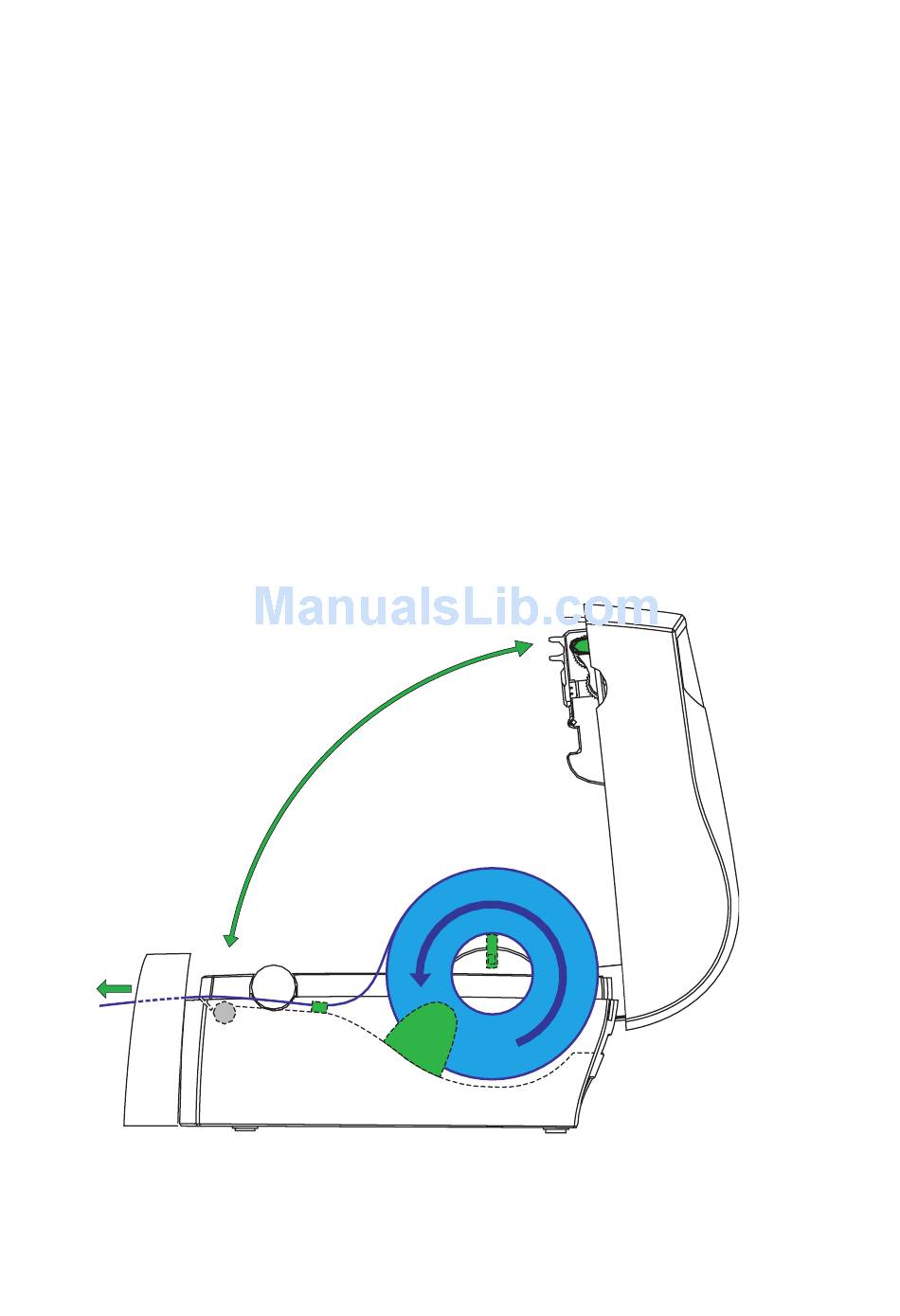

Place the roll and spindle in the media compartment and snap the
5
spindle into the slots on either side.
Wind the green edge guide wheel towards the rear of the printer so the
6
rear edge guides just touch the media roll without actually breaking its
rotation.
Thread the labels through the slits in the front edge guides.
7
Route the media through the slot in the optional cutter mechanism
8
just in front of the tear bar.
Firmly close the top cover.
9
If loading media for the fi rst time or if changing from another type or
10
size of media, perform a Label Gap Sensor Adjustment as described
on page 24. Else, tap the Feed key either 4 times or until the indicator
lamp glows green.
If the printer did run out of media while printing, the printing will
11
automatically be resumed.
20 Intermec EasyCoder C4—User's Guide
