EasyCoder 4420 and 4440 Bar Code Label Printer User's Manual
C d
Empty ribbon
roll
Thermal transfer
ribbon
F e e
d /P
a u s
e
P o
w e
r/ D
a ta
A le
rt
E m
p ty
/P a
u s e
TTR assist
roller
8 Engage the printhead by rotating the head lift lever counterclockwise
until it locks.
9 Enable thermal transfer printing by setting DIP switch 8 on the bottom
bank of switches to the on position. Refer to "Configuring the Serial
Port for Communications" in Chapter 2 for DIP switch settings.
10 Press the Feed/Pause button to advance the ribbon through the printer.
The printer is now ready to print the hardware configuration test label.
Note: When replacing the thermal transfer ribbon roll in the future, use
the empty ribbon supply core as the new rewinder core.
39
Helvetica CondenseChapter 1 — Getting Started

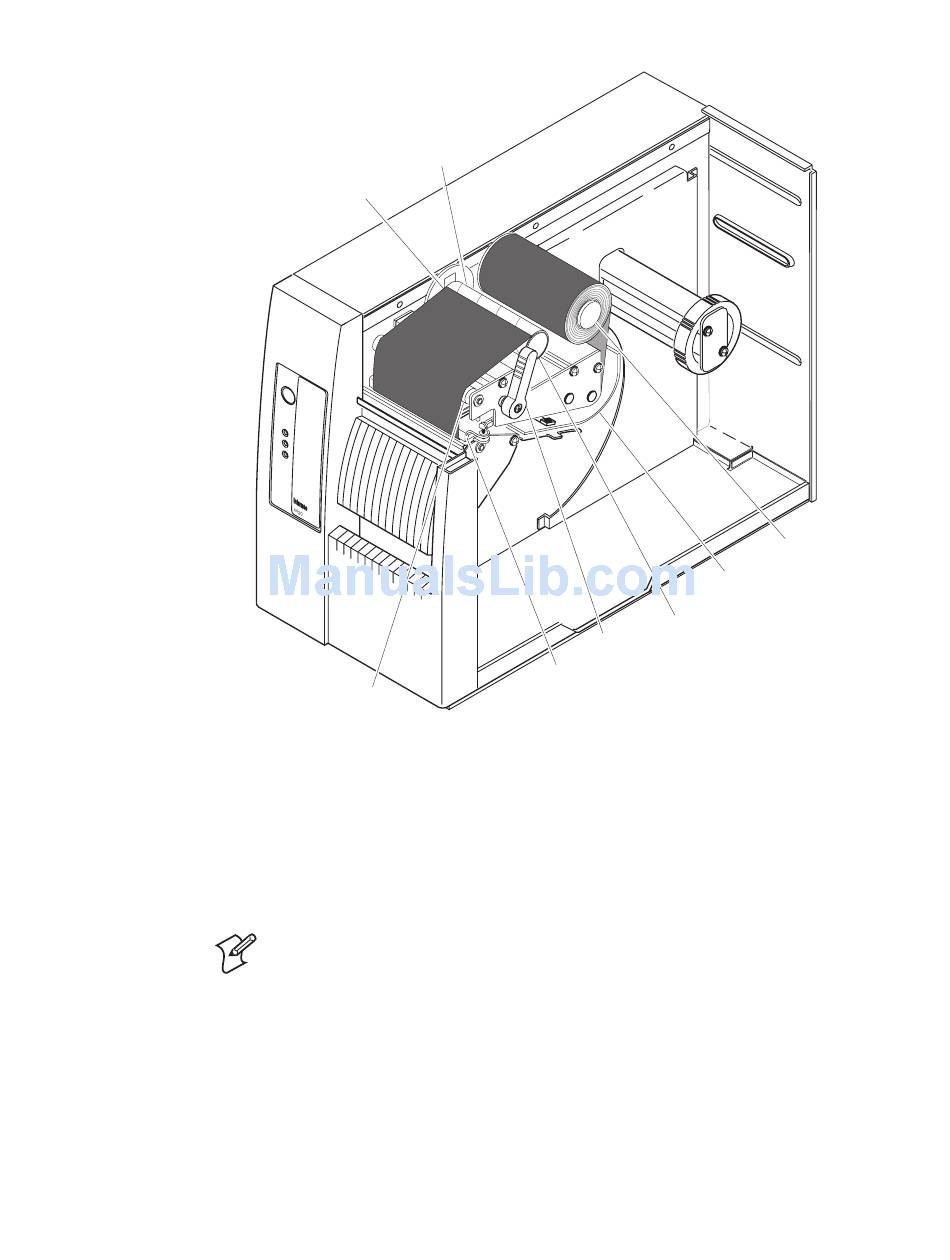

Head
lift lever
Printhead
Ribbon supply
hub
Upper media
guide
Ribbon rewind
hub
44XXU028.eps
