Chapter 6 — Using Test and Service Mode

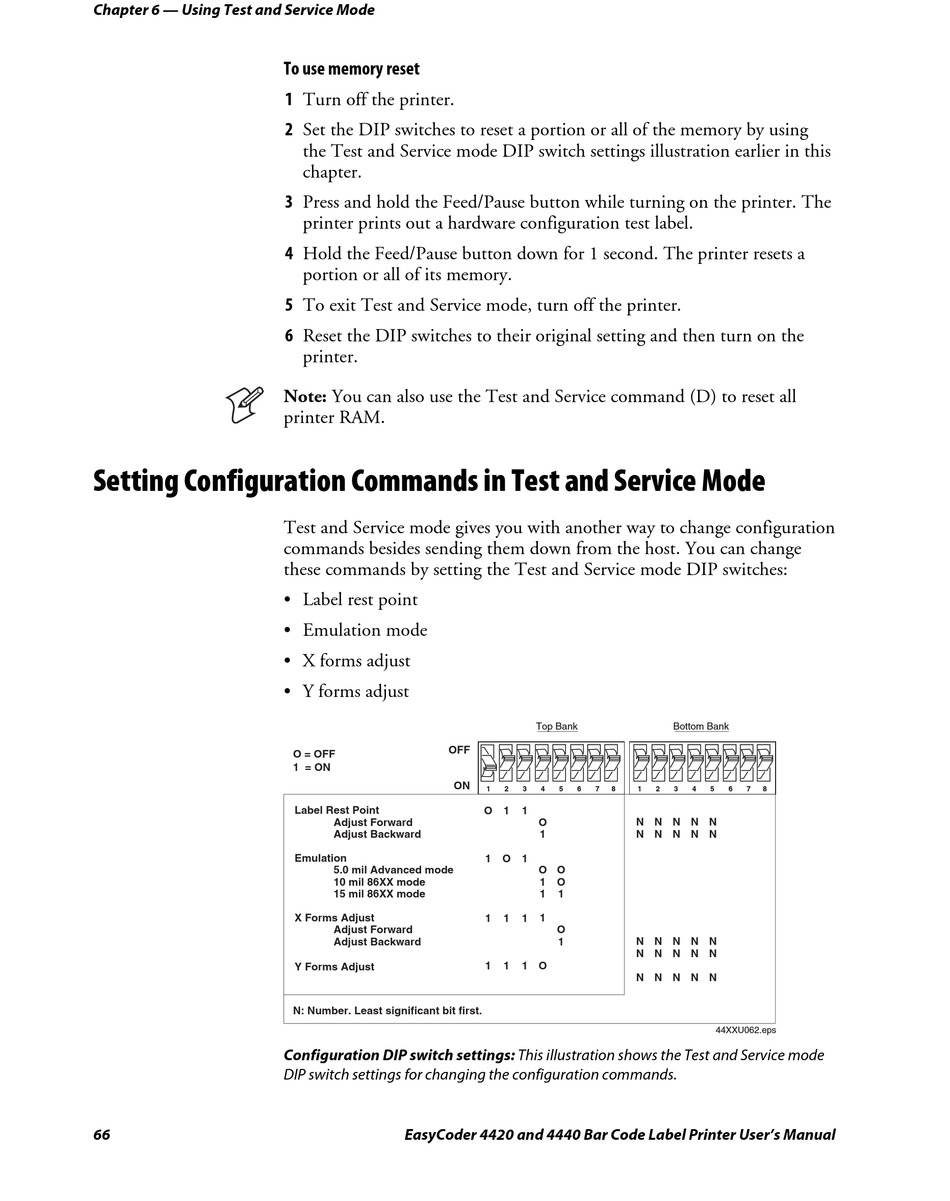

Setting Configuration Commands in Test and Service Mode

66
C d
To use memory reset
1 Turn off the printer.
2 Set the DIP switches to reset a portion or all of the memory by using
the Test and Service mode DIP switch settings illustration earlier in this
chapter.
3 Press and hold the Feed/Pause button while turning on the printer. The
printer prints out a hardware configuration test label.
4 Hold the Feed/Pause button down for 1 second. The printer resets a
portion or all of its memory.
5 To exit Test and Service mode, turn off the printer.
6 Reset the DIP switches to their original setting and then turn on the
printer.
Note: You can also use the Test and Service command (D) to reset all
printer RAM.
Test and Service mode gives you with another way to change configuration
commands besides sending them down from the host. You can change
these commands by setting the Test and Service mode DIP switches:
• Label rest point
• Emulation mode
• X forms adjust
• Y forms adjust
OFF
O = OFF
1 = ON
Label Rest Point
Adjust Forward
Adjust Backward
Emulation
5.0 mil Advanced mode
10 mil 86XX mode
15 mil 86XX mode
X Forms Adjust
Adjust Forward
Adjust Backward
Y Forms Adjust
N: Number. Least significant bit first.
Configuration DIP switch settings: This illustration shows the Test and Service mode
DIP switch settings for changing the configuration commands.
EasyCoder 4420 and 4440 Bar Code Label Printer User's Manual
39
Helvetica Condensed Helvetica
Top Bank
ON
1 2 3 4 5 6 7 8
O 1 1
O
1
1 O 1
O O
1 O
1 1
1
1 1 1
O
1
O
1 1 1
Bottom Bank
1 2 3 4 5 6 7 8
N N N N N
N N N N N
N N N N N
N N N N N
N N N N N
44XXU062.eps
