Adjusting the Print Darkness

EasyCoder 4420 and 4440 Bar Code Label Printer User's Manual

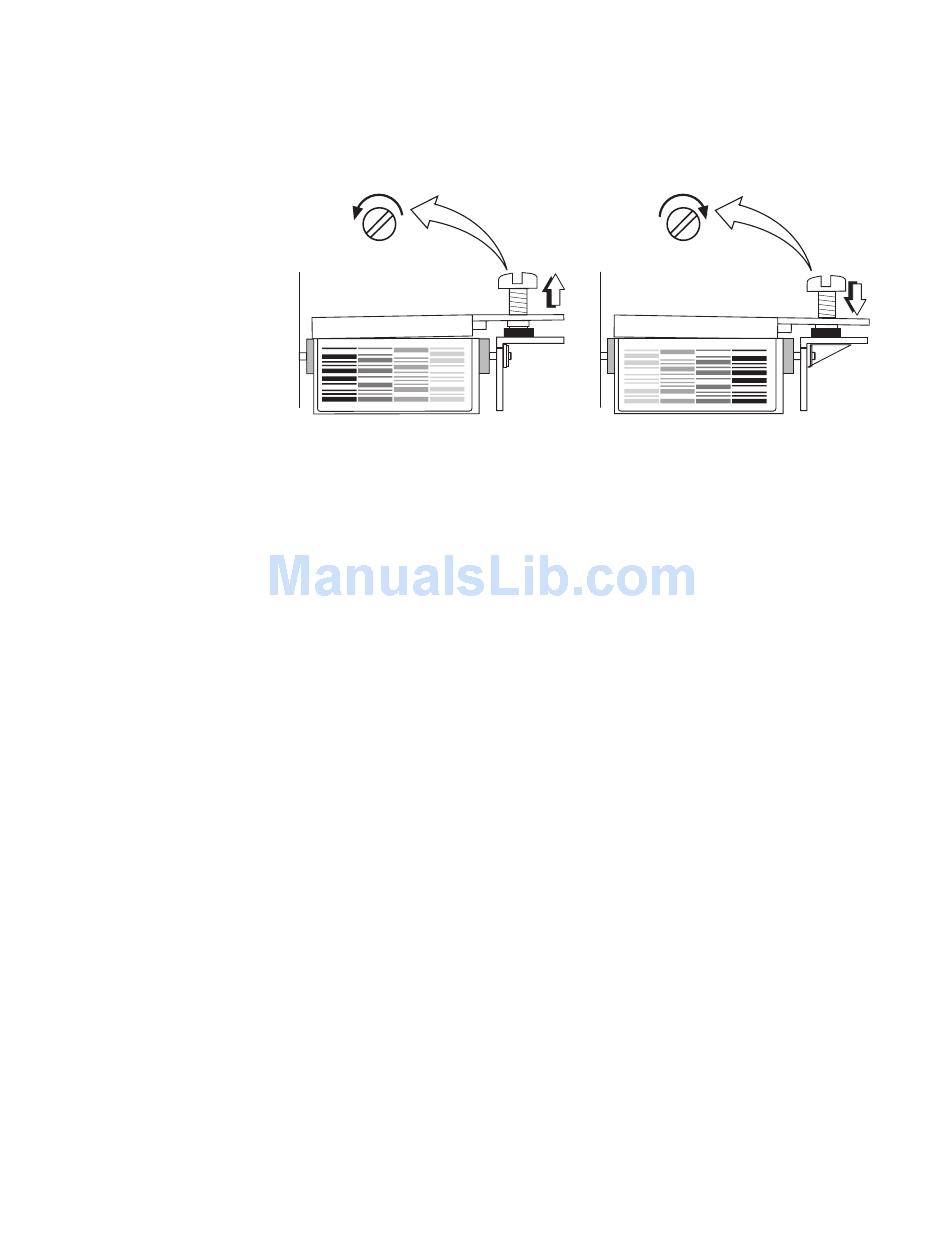

2 To compensate for uneven print quality, use a straight-slot screwdriver
to turn the bias adjust screw as shown.
Adjusting the bias adjust causes the printhead to rest evenly on the drive
roller and results in even print quality.
If printing is light on
the right side of label,
turn the bias adjust screw
counterclockwise.
3 Replace the media cover.
Use the darkness adjust control in combination with the Print Darkness
adjustment in PrintSet to fine-tune the darkness of print on the labels. The
fine adjustments compensate for variations in the media ("lot to lot"), the
printhead, or the printer. Set the darkness adjust control after you enter
the media sensitivity number.
For the best results in adjusting the print darkness (energy to the
printhead), perform these procedures in order:
1 Set the correct sensitivity number.
2 Adjust the manual darkness adjust control on the back of the printer.
3 Adjust the Print Darkness setting in PrintSet.
To adjust the manual darkness adjust control
1 Locate the darkness adjust control on the back of the printer.
2 Use a small straight-slot screwdriver to adjust the print darkness:
• To increase the print darkness, turn the control clockwise.
• To decrease the print darkness, turn the control counterclockwise.
Chapter 5 — Optimizing Printer Performance
If printing is light on the
left side of label, turn the
bias adjust screw clockwise.
44XXU044 .eps
49
