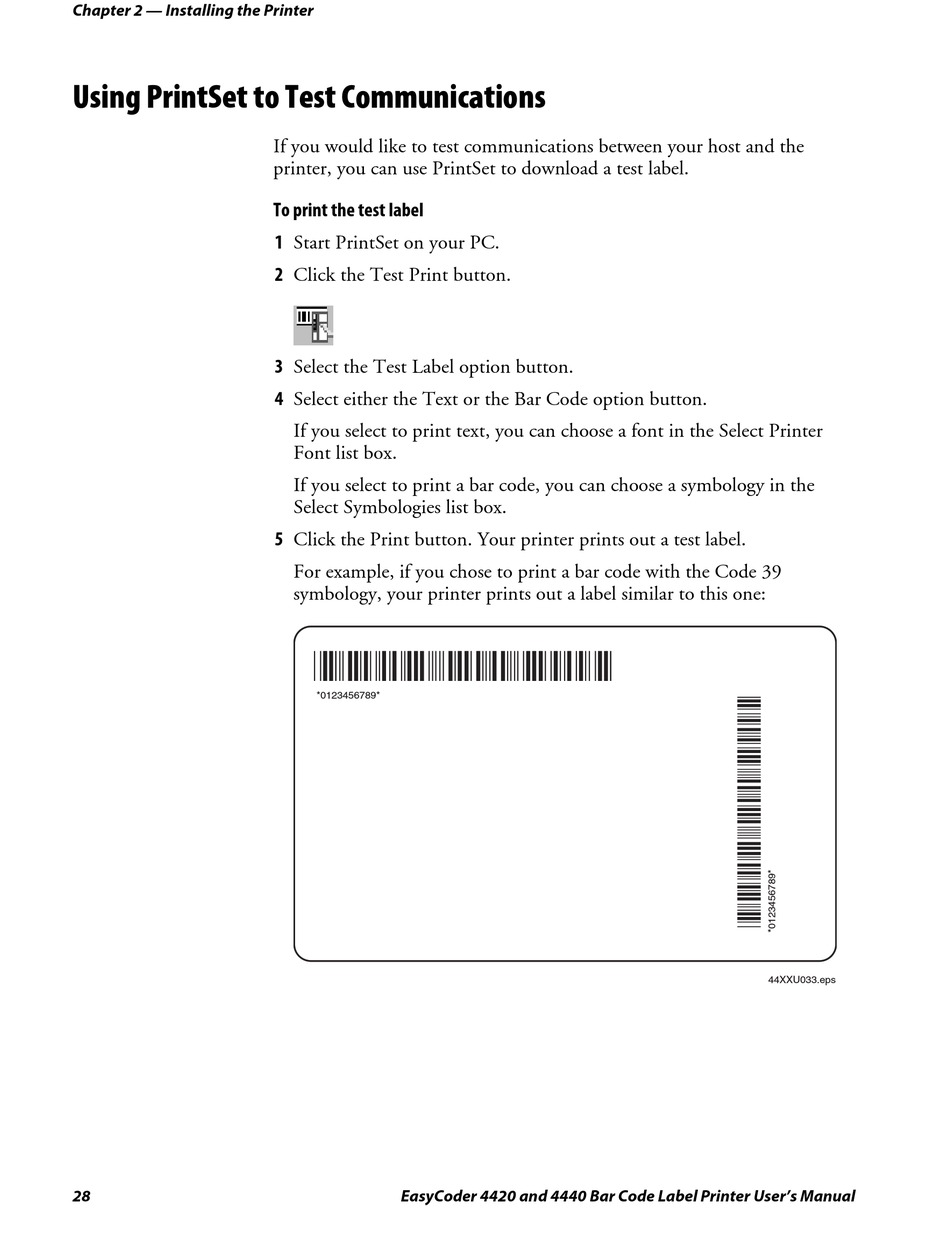

Using Printset To Test Communications - Intermec EasyCoder 4420 User Manual

Chapter 2 — Installing the Printer

Using PrintSet to Test Communications

28
C d
If you would like to test communications between your host and the
printer, you can use PrintSet to download a test label.
To print the test label
1 Start PrintSet on your PC.
2 Click the Test Print button.
3 Select the Test Label option button.
4 Select either the Text or the Bar Code option button.
If you select to print text, you can choose a font in the Select Printer
Font list box.
If you select to print a bar code, you can choose a symbology in the
Select Symbologies list box.
5 Click the Print button. Your printer prints out a test label.
For example, if you chose to print a bar code with the Code 39
symbology, your printer prints out a label similar to this one:
*0123456789*
*0123456789*
EasyCoder 4420 and 4440 Bar Code Label Printer User's Manual
39
Helvetica Condensed
44XXU033.eps
