Chapter 3 — Maintaining the Printer
38
C d

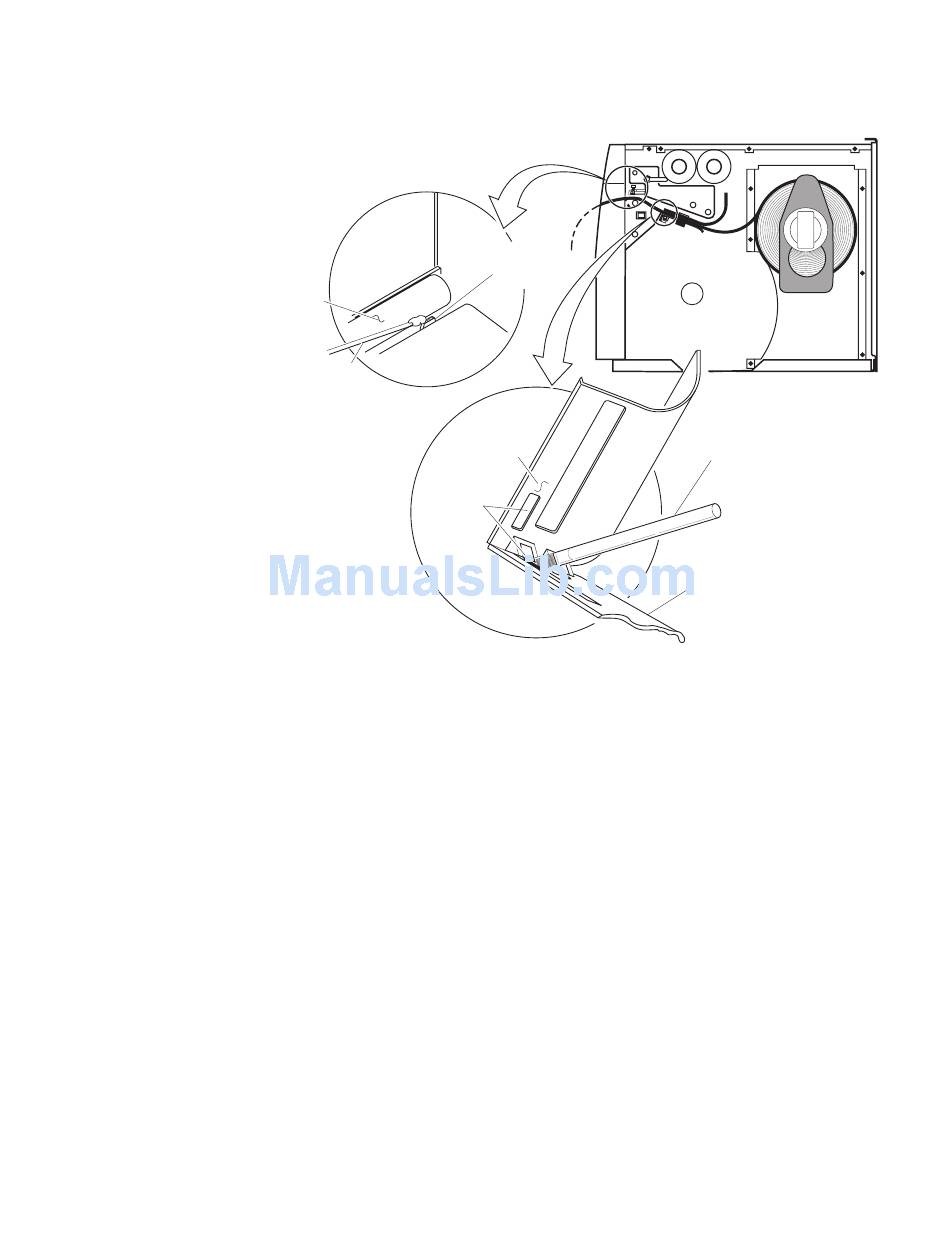

5 Clean the label mark sensor with a cotton swab moistened with
isopropyl alcohol.
Drive
roller
Cotton
swab
Upper media
guide
(underside)
Label gap
sensor
6 Pull down on the lower media guide to expose the label gap sensor.
Using a cleaning brush or vacuum, remove all debris and dust from the
label gap sensor.
7 Clean the upper and lower label gap sensor with a cotton swab and
alcohol.
8 Replace the media and ribbon.
9 Engage the printhead by rotating the head lift lever counterclockwise
until it locks in place.
10 If you are finished cleaning, replace the media cover.
EasyCoder 4420 and 4440 Bar Code Label Printer User's Manual
39
Helvetica Condensed
Label mark
sensor
Lower
media guide
Cleaning
brush
44XXU040.eps
