Intermec ColorCoder 901 – Installation Instructions
CUTTER, cont'd.
Installation
1
/. Some printers may not be fitted with
such a bracket. In this case, do not mount
the grounding plate. This will not impair
the function of the cutter.
Install the cutter on the Intermec ColorCoder 901 printer in
accordance with the following procedure.
Caution!
Before starting the installation, check that the power to both the
printer and the cutter is turned off.

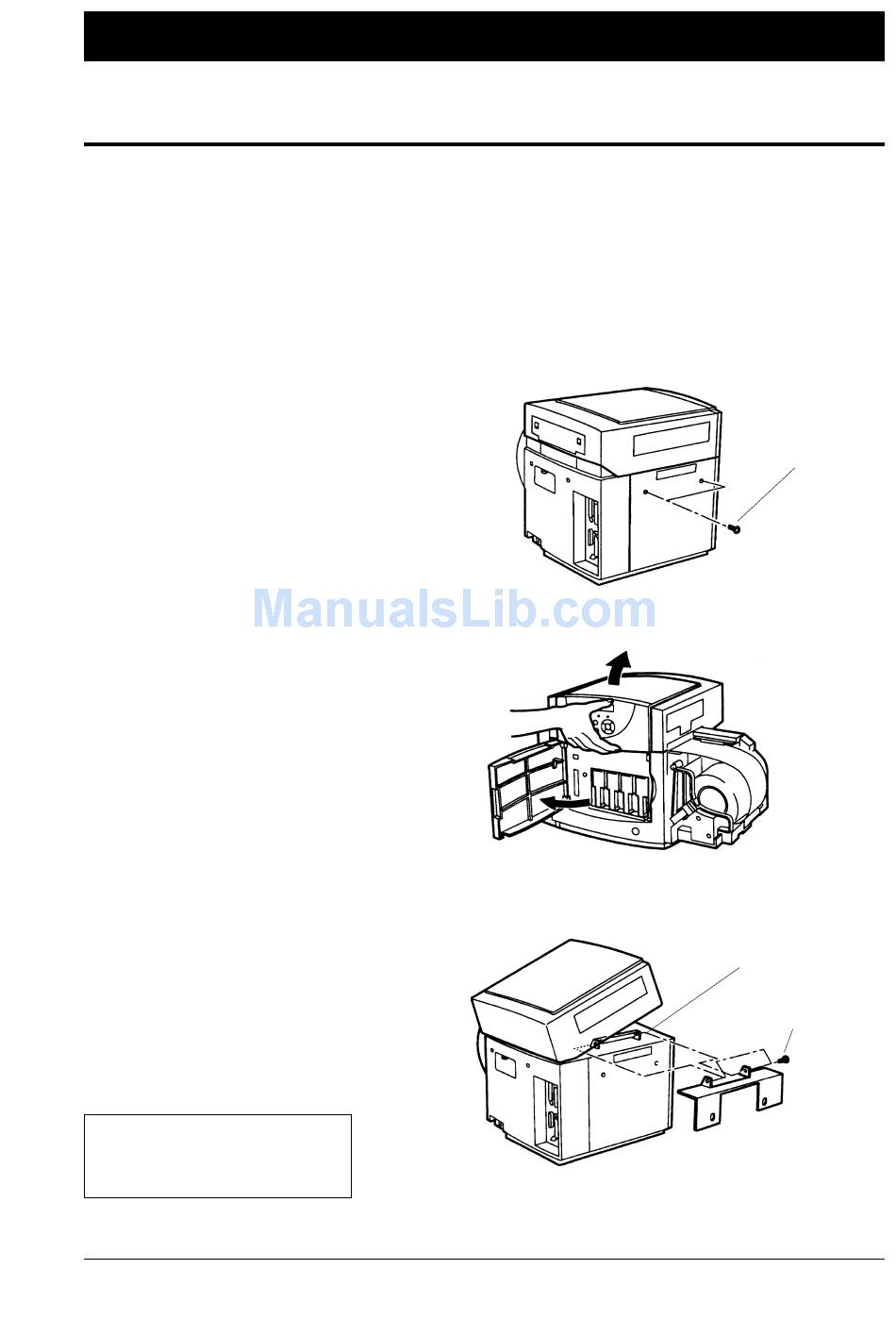

1.
Remove the two screws on the cover on the delivery (left) side
of the printer, or remove the manual cutter if fitted.
2.
Open the front cover of the printer. Then open the PHS unit by
raising the green grip.
3.
Attach the cutter's grounding plate to the bracket
below using the two M3 x 4 screws included in the kit.
Remove Screws
(2 pcs)
1
as shown
Bracket
Screws M3 x 4
(2 pcs)
Continued!
