CUTTER, cont'd.

Cutting Angle Adjustment

If the paper is cut off in an oblique angle relative to the front and rear
edges of the labels, the mounting angle between printer and cutter
needs to be adjusted as described below.
Adjust the cutting angle with the adjusting screws on the rear
1.
side of the cutter. Remove the two set screws that affix the cutter
to the mounting plate.
Loosen the fixing nuts, rotate the angle adjusting screws, and
2.
correct the amount of protrusion of the screw in the direction
which the oblique cutting is to be corrected.
Tighten the two set screws and print some labels again to
3.
confirm the cutting position.
Repeat steps 1 – 3 until the cutting is perfectly in parallel with the
4.
front and rear edges of the labels.
If necessary, adjust the cutting position, as described on page 11,
5.
so the cutting is performed in the centre of the gaps between the
labels.
Adjust the vertical parallelism between the mounting plate and
6.
the cutter unit. Loosen the fixing nuts of the parallelism adjusting
screws, rotate adjusting screws to make the clearance between
the mounting plate and the cutter unit parallel vertically, and
tighten the fixing nuts.
Print several more labels and confirm that the cuts are positioned
7.
correctly.

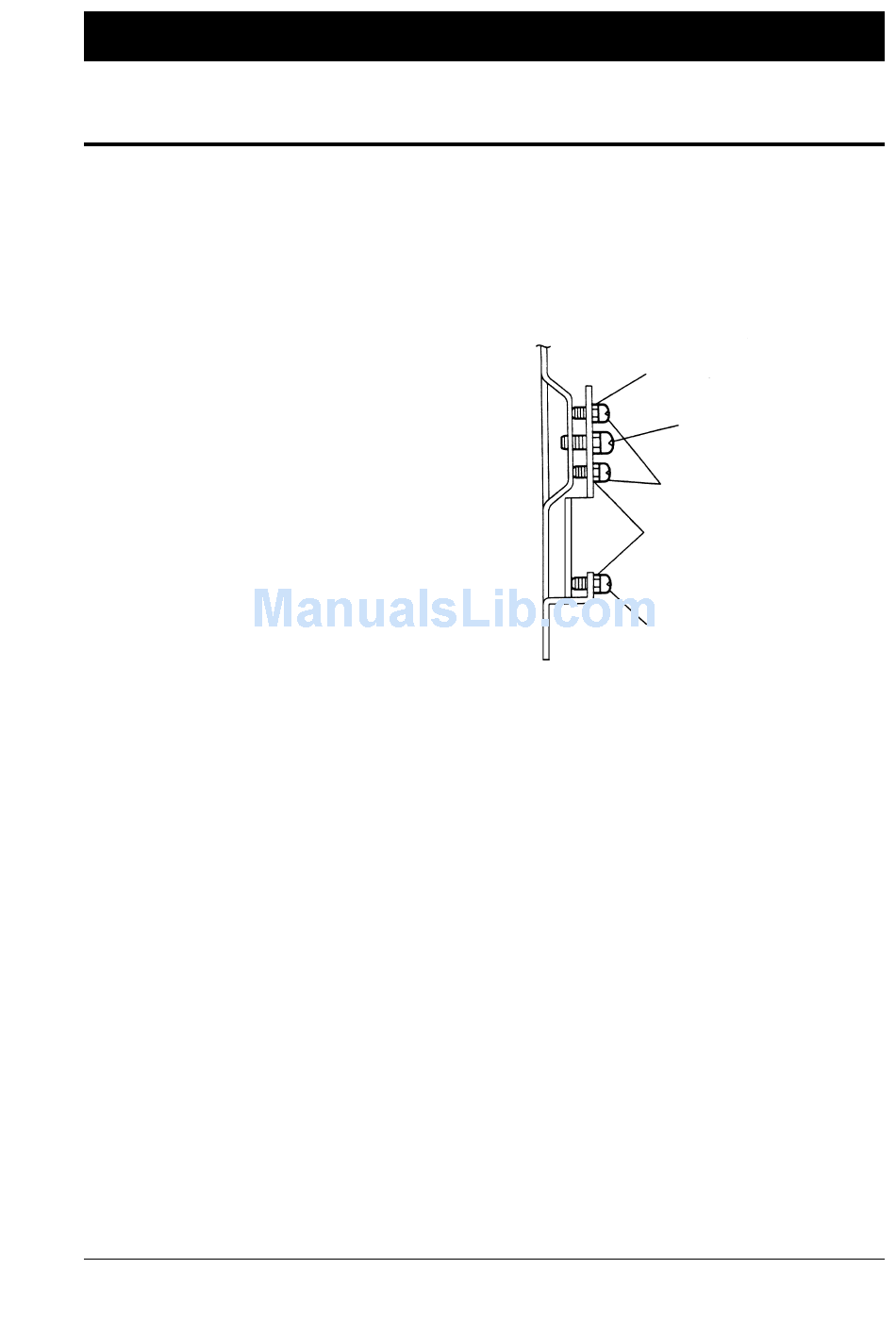

Fixing Nut
Set Screw
Angle Adjusting Screws
Fixing Nuts
Parallelism Adjusting Screw
