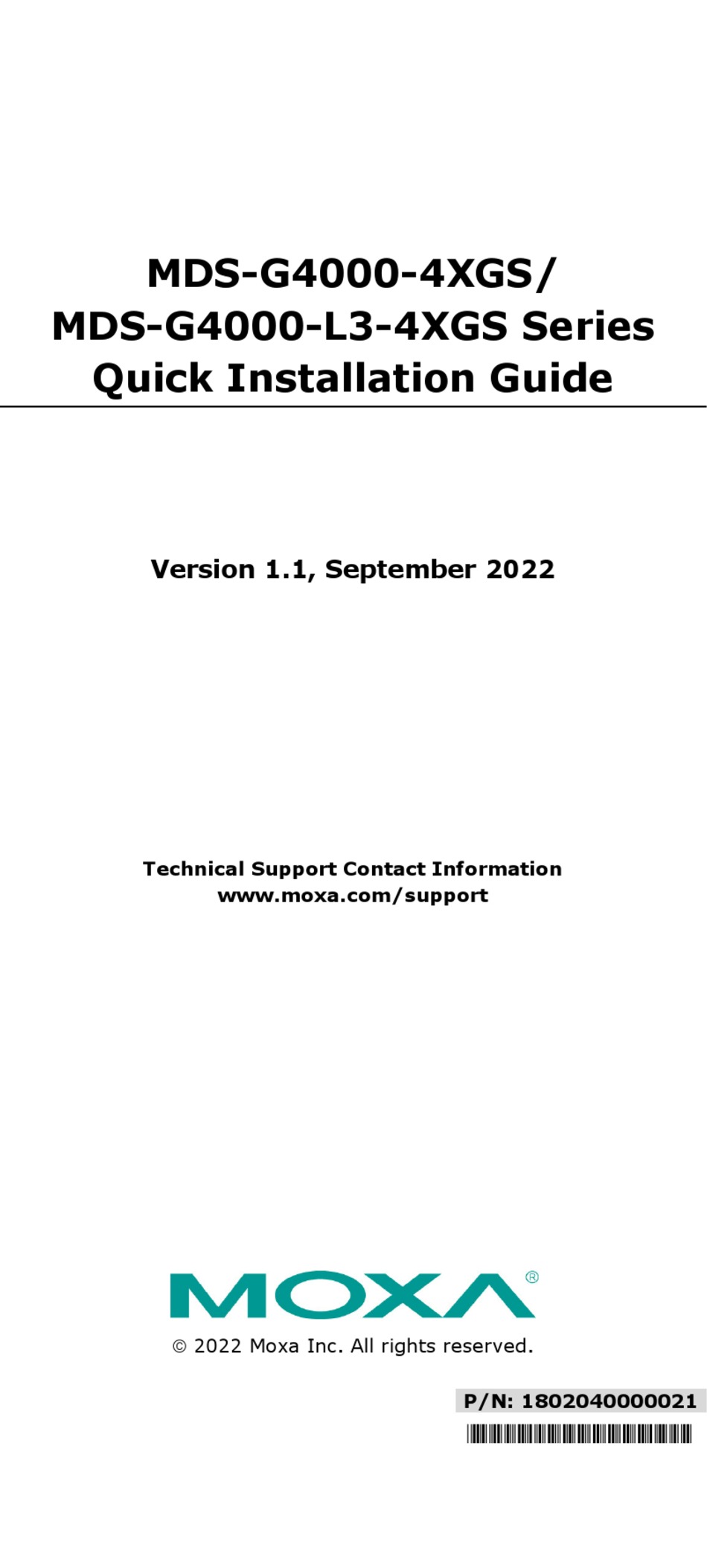

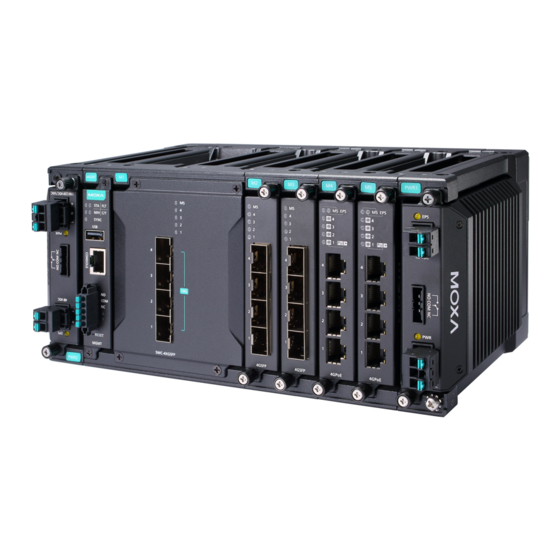

- Page 1 MDS-G4000-4XGS/ MDS-G4000-L3-4XGS Series Quick Installation Guide Version 1.1, September 2022 Technical Support Contact Information www.moxa.com/support 2022 Moxa Inc. All rights reserved. P/N: 1802040000021 *1802040000021*...
-
Page 2: Package Checklist
Package Checklist Moxa’s MDS-G4000-4XGS/MDS-G4000-L3-4XGS Series industrial modular DIN-rail switch is shipped with the following items. If any of these items are missing or damaged, please contact your customer service representative for assistance. • 1 MDS-G4000-4XGS or MDS-G4000-L3-4XGS switch • Pre-installed DIN-rail kit •... -
Page 3: Ethernet Modules
12. External Power Supply (EPS) input for PoE 13. Redundant power module slot 1 14. Redundant power module slot 2 15. RS-232 console port with RJ45 interface 16. Reset button (Pin hole 0.9 mm diameter) 17. Relay output and Digital Input port 18. - Page 4 LM-7000H-4PoE Power Modules (Hardware Rev.2.1.0 and above) PWR-HV-P48-A PWR-LV-P48-A PWR-HV-NP PWR-LV-NP DIN-rail Dimension and Instructions Unit: mm (inch) 1. Insert the upper lip of the DIN rail into the DIN-rail mounting kit. 2. Press the device towards the DIN rail until it snaps into place. 3.
- Page 5 Wall Mount Dimension and Instructions (Optional: WK-112-01) NOTE The wall-mount kit is certified for Hazardous Location usage. Mounting the switch to a wall requires four screws per kit (there are two kits). The heads of the screws should be between 6.0 to 9.0 mm in diameter, and the diameter of screw thread should be between 3.5 to 4 mm, as shown in the figure on the right.
-
Page 6: Matters That Require Attention
Rack-mounting Kit Dimensions and Instructions (Optional: RK-3U-02) Please refer to the RK-3U-02 Series QIG. Matters That Require Attention 1. Elevated Operating Temperature: If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room temperature. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer. -
Page 7: Power Terminal Blocks
Connecting the Power Inputs NOTE The required power module depends on the choice of LM-7000H module. Refer to the following power/module combination requirements. • LM-7000H non-PoE modules: Any power module • LM-7000H PoE modules: PWR-HV-P48-A, PWR-LV-P48-A only The MDS-G4000-4XGS/MDS-G4000-L3-4XGS Series supports 4 types of power supply: •... - Page 8 PWR-HV-P48-A/PWR-HV-NP Step 1: Insert the neutral/line (L/N/Ground) AC wires into the terminals. Step 2: Insert the terminal block connector into the terminal block receptor. PWR-LV-P48-A/PWR-LV-NP Step 1: Insert the negative/positive (-/+) DC wires into the terminals. Step 2: Insert the terminal block connector prongs into the terminal block receptor.
-
Page 9: Wiring The Relay Contact
NOTE When two power units are installed on the MDS-G4000- 4XGS/MDS-G4000-L3-4XGS Series switch, both power units will be activated simultaneously, which will enable power redundancy. NOTE The reverse power input connection will not activate the device or PoE input. In addition, the PoE will only activate when the external power supply is installed on the same power unit. - Page 10 WARNING When wiring the Digital Input/Output contact, we suggest using the cable type - AWG (American Wire Gauge) 16-28 (1.31- 0.081 mm ) and the corresponding pin type cable terminals. The rated temperature of the wiring should be at least 105°C and the wire type should be CU.
-
Page 11: Usb Storage Connection
3. Insert the dummy module into the slot in order to have better protection against dust and EMI. 4. Fasten the dummy module using the 2 screws. The tightening torque is 4 kgf-cm (0.4 Nm) NOTE If one of the modules is removed from the device, it is recommended to insert a dummy module in order to provide better protection against dust and EMI. -
Page 12: Resetting To Factory Default Settings
D+ (Data+) GND (Ground) The Reset Button (diameter 0.9 mm) The reset button can perform two functions. One is to reset the switch to factory default settings and the other is to reboot the switch if the button has been depressed and release immediately. Resetting to Factory Default Settings Depress the Reset button for five seconds to load the factory default settings. - Page 13 Color State Description The PTP function is enabled. Amber Blinking The switch is receiving sync packets. SYNC The PTP function is disabled. The PTP function has successfully Green converged. The switch is being System LEDs Green/ discovered/located by the locator (Except Amber/ Blinking...
- Page 14 LM-7000H-4GTX/LM-7000H-4GSFP/LM-7000H-4TX Color State Description Normal operation. Green Blinking The module is booting up. The module is out of service. (Module 1. The module initialization has State) failed, or 2. A module designed for a different model was inserted. The port is active and is linked at 100 Mbps.
- Page 15 LM-7000H-4GPoE/LM-7000H-4PoE Color State Description Normal operation. Green Blinking The module is booting up. This module is out of service. 1. The module failed to initialize. 2. A user inserted a module designed (Module State) for a different model. 3. When performing a cold start, the module was removed and inserted before initialization was complete.
-
Page 16: Specifications
PWR-HV-P48-A/PWR-LV-P48-A Color State Description External power is being supplied to EPS (External the module's EPS input. Amber Power Supply) No external power supply. Power is being supplied to the module's power input. Amber Power is not being supplied to the module's power input. - Page 17 When using PWR-HV-P48-A/PWR-HV-NP: Input Current (without modules 110 VDC: 0.11 A consumption) 220 VDC: 0.06 A 110 VAC: 0.29 A 220 VAC: 0.18 A When using PWR-LV-P48-A/PWR-LV-NP: 24 VDC: 0.53 A 48 VDC: 0.28 A Peak Inrush PWR-HV-P48-A/PWR-HV-NP: Current 110 VAC: < 10 A (t > 0.1 ms) 220 VAC: <...
-
Page 18: Restricted Access Locations
Weight MDS-G4012-4XGS-T/MDS-G4012-L3-4XGS-T Series: 3.03 kg (6.68 lb) MDS-G4020-4XGS-T/MDS-G4020-L3-4XGS-T Series: 3.40 kg (7.50 lb) MDS-G4028-4XGS-T/MDS-G4028-L3-4XGS-T Series: 3.79 kg (8.36 lb) LM-7000H-4GSFP: 0.30 kg (0.66 lb) LM-7000H-4GTX: 0.24 kg (0.53 lb) LM-7000H-4GPoE: 0.31 kg (0.69 lb) LM-7000H-4TX: 0.24 kg (0.53 lb) LM-7000H-4PoE: 0.31 kg (0.69 lb) PWR-HV-P48-A: 0.42 kg (0.93 lb) PWR-LV-P48-A: 0.40 kg (0.88 lb) PWR-HV-NP/PWR-LV-NP: 0.34 kg (0.75 lb) - Page 19 ATTENTION • This device is an open-type equipment and should be installed in a suitable enclosure. • Please use an optical transceiver (SFP) that complies with IEC 60825-1, 21 CFR 1040 Section 1040.10 and 1040.11, classified as Class 1 laser product. •...
