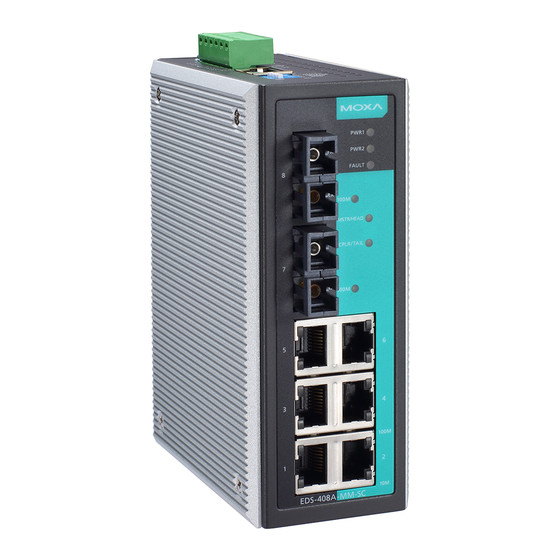

Moxa Technologies EtherDevice EDS-408A User Manual
  1. Manuals
  2. Brands
  3. Moxa Technologies Manuals
  4. Switch
  5. EDS-408A
  6. User manual

Moxa Technologies EtherDevice EDS-408A User Manual

Eds-408a/eds-405a series
Hide thumbs Also See for EtherDevice EDS-408A:
Table of Contents

Advertisement

Quick Links

See also: Manual
MOXA EtherDevice™ Switch
EDS-408A/405A Series User's Manual
www.moxa.com/product
First Edition, May 2006
Moxa Networking Co., Ltd.
Tel:
Fax:
Web: www.moxa.com
MOXA Technical Support
Worldwide:
The Americas
+886-2-2910-1230
+886-2-2910-1231
support@moxanet.com
support@moxa.com

Advertisement

Table of Contents
loading

Related Manuals for Moxa Technologies EtherDevice EDS-408A

Summary of Contents for Moxa Technologies EtherDevice EDS-408A

  • Page 1 MOXA EtherDevice™ Switch EDS-408A/405A Series User’s Manual www.moxa.com/product First Edition, May 2006 Moxa Networking Co., Ltd. Tel: +886-2-2910-1230 Fax: +886-2-2910-1231 Web: www.moxa.com MOXA Technical Support Worldwide: support@moxanet.com The Americas support@moxa.com...

  • Page 2: Copyright Notice

    Information in this document is subject to change without notice and does not represent a commitment on the part of Moxa. Moxa provides this document “as is,” without warranty of any kind, either expressed or implied, including, but not limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this manual, or to the products and/or the programs described in this manual, at any time.

  • Page 3: Table Of Contents

    Inside the Future of Industrial Ethernet Technology ............1-2 The trend in industrial communications and automation applications ...... 1-2 Industrial vs. Commercial ..................1-2 Informative vs. Passive ..................... 1-2 MOXA EtherDevice™ Switch ..................... 1-2 Package Checklist......................... 1-2 Optional Accessories ......................1-3 Features ..........................1-3 Advanced Industrial Networking Capability.............
  • Page 4 Modify IP Address........................ 4-4 Export Configuration......................4-5 Import Configuration......................4-6 Unlock Server........................4-7 Appendix A MIB Groups ....................A-1 Appendix B Specifications ................... B-1 Appendix C Service Information.................. C-1 MOXA Internet Services ......................C-2 Problem Report Form ......................C-3 Product Return Procedure.....................C-4...

  • Page 5: Chapter 1 Introduction

    Introduction Chapter 1 Welcome to MOXA EtherDevice Switch EDS-408A/405A Series, the world’s first intelligent Ethernet Device Switch specially designed for connecting Ethernet-enabled devices in industrial field applications. The following topics are covered in this chapter: Inside the Future of Industrial Ethernet Technology MOXA EtherDevice™...

  • Page 6: Inside The Future Of Industrial Ethernet Technology

    You will find that MOXA EtherDevice Switch establishes a new industrial Ethernet benchmark. It is excellent for keeping automation systems running continuously, is ideal for sending status reports to help prevent system damages and losses, is a great tool for mastering your industrial Ethernet networks, and is well-suited for use with industrial device control networks.

  • Page 7: Optional Accessories

    WK-46—Wall Mounting Kit Features Advanced Industrial Networking Capability MOXA Turbo Ring with Redundant Self-Healing Ethernet Ring Capability (recovery time < 300 ms at full load) Supports Port-Based VLAN to ease network planning Supports QoS—IEEE 802.1p and TOS/DiffServ to increase determinism Designed for Industrial Applications -40 to 75°C operating temperature range (for –T models)

  • Page 8: Chapter 2 Getting Started

    MOXA EtherDevice Switch to a PC’s COM port, can be used if you do not know MOXA EtherDevice Switch’s IP address. The Telnet console and web browser connection methods can be used to access MOXA EtherDevice Switch over an Ethernet LAN, or over the Internet.

  • Page 9: Configuration Using Rs-232 Serial Console (115200, None, 8, 1, Vt100)

    3. Recommendation—when connecting to EDS using a web browser, do NOT simultaneously connect using either a serial console or via Telnet. 4. By following this advice, you can maintain better control over how your MOXA EtherDevice Switch is managed. NOTE We recommend using MOXA PComm Terminal Emulator, which can be downloaded free of charge from Moxa’s website.
  • Page 10 EDS-408A/405A Series User’s Manual Getting Started 3. The Communication Parameter page of the Property window opens. Select the appropriate COM port for Console Connection, 115200 for Baud Rate, 8 for Data Bits, None for Parity, and 1 for Stop Bits.
  • Page 11 Password field blank if a console password has not been set), and then press Enter. 7. MOXA EtherDevice Switch’s Main Menu will be displayed. (NOTE: To modify the appearance of the PComm Terminal Emulator window, select Font… under the Edit menu, and then choose the desired formatting options.)

  • Page 12: Configuration Using Telnet Console

    Getting Started Configuration using Telnet Console You may use Telnet to access MOXA EtherDevice Switch’s console utility over a network. To be able to access EDS’s functions over the network (using Telnet or Web Browser) from a PC host that is connected to the same LAN as EDS, you need to make sure that the PC host and EDS are on the same logical sub network.
  • Page 13 Password field blank if a console password has not been set), and then press Enter. 4. MOXA EtherDevice Switch’s Main Menu will be displayed. (NOTE: To modify the appearance of the PComm Terminal Emulator window, select Font… under the Edit menu, and then choose the desired formatting options.)

  • Page 14: Configuration Using Web Browser

    Before accessing MOXA EtherDevice Switch’s web browser interface, first connect one of MOXA EtherDevice Switch’s RJ45 Ethernet ports to your Ethernet LAN, or directly to your PC’s Ethernet NIC. You can establish a connection with either a straight-through or cross-over Ethernet cable.

  • Page 15: Disabling Telnet And Browser Access

    You may need to wait a few moments for the web page to be downloaded to your computer. Use the menu tree on the left side of the window to open the function pages to access each of MOXA EtherDevice Switch’s functions.

  • Page 16: Chapter 3 Featured Functions

    Telnet console, and web browser. The serial console connection method, which requires using a short serial cable to connect MOXA EtherDevice Switch to a PC’s COM port, can be used if you do not know MOXA EtherDevice Switch’s IP address. The Telnet console and web browser connection methods can be used to access MOXA EtherDevice Switch over an Ethernet LAN, or over the Internet.

  • Page 17: Configuring Basic Settings

    Configuring Basic Settings The Basic Settings group includes the most commonly used settings required by administrators to maintain and control a MOXA EtherDevice Switch. System Identification The system identification items are displayed at the top of the web page, and will be included in alarm emails.

  • Page 18: Password

    ATTENTION MOXA EtherDevice Switch’s default Password is not set (i.e., is blank). If a Password is already set, then you will be required to type the Password when logging into the RS-232 Console, Telnet Console, or Web Browser interface.

  • Page 19: Accessible Ip

    Featured Functions Accessible IP Moxa EtherDevice Switches use an IP address-based filtering method to control access to EDS. Accessible IP Settings allows you to add or remove Legal remote host IP addresses to prevent unauthorized access. Access to EtherDevice Switch is controlled by IP addresses. That is, if a host’s IP address is in the accessible IP table, then the host will be allowed access to the...

  • Page 20: Port

    Port settings are included to give the user control over Port Access, Port Transmission Speed, Flow Control, and Port Type (MDI or MDIX). An explanation of each configuration item is given below. (NOTE: The user interface for EDS-408A shows 8 ports.) Enable...

  • Page 21: Network

    EDS-408A/405A Series User’s Manual Featured Functions Port Transmission Speed Setting Description Factory Default Allows the port to use the IEEE 802.3u protocol to negotiate with connected devices. Auto The port and connected devices will determine the best speed for that connection.
  • Page 22 EDS-408A/405A Series User’s Manual Featured Functions Auto IP Configuration Setting Descriptions Factory Default Disable Set up EDS’s IP address manually. EDS’s IP address will be assigned By DHCP automatically by the network’s DHCP Disable server. EDS’s IP address will be assigned By BootP automatically by the network’s BootP...

  • Page 23: Time

    EDS-408A/405A Series User’s Manual Featured Functions Time EDS has a time calibration function based on information from an NTP server or user specified Time and Date information. Functions such as Auto warning Email can add real-time information to the message.

  • Page 24: Turbo Ring Dip Switch

    5-minute recovery time for commercial switches—decreasing the possible loss caused by network failure. A set of DIP Switches located on EDS-408A/405A’s outer casing can be easily used to configure the Turbo Ring settings in only a few seconds. Some users may wish to disable the Turbo Ring DIP Switches to avoid accidental changes to the configuration.
  • Page 25 DIP Switch first. NOTE If you do not enable any of the EDS-408A/405A switches to be the Ring Master, the Turbo Ring protocol will automatically choose the EDS-408A/405A with the smallest MAC address range to be the Ring Master. If you accidentally enable more than one EDS-408A/405A to be the Ring Master, these EDS-408A/405A switches will auto-negotiate to determine which one will be the Ring Master.

  • Page 26: System File Update-By Remote Tftp

    LAN”). System File Update—By Remote TFTP MOXA EtherDevice Switch supports saving your configuration file to a remote TFTP server or local host to allow other EtherDevice Switches to use the same configuration at a later time, or saving the Log file for future reference. Loading pre-saved firmware or a configuration file from the TFTP server or local host is also supported for easy upgrading or configuration of the EtherDevice Switch.

  • Page 27: System File Update-By Local Import/Export

    EDS-408A/405A Series User’s Manual Featured Functions Log file path and name Setting Description Factory Default Max. 40 The path and file name of the EtherDevice None Characters Switch’s log file After setting up the desired path and file name, click Activate to save the setting, and then click Download to download the prepared file from the remote TFTP server, or click Upload to upload the desired file to the remote TFTP server.

  • Page 28: Configuring Snmp

    EDS-408A/405A Series User’s Manual Featured Functions The Factory Default function is included to give users a quick way of restoring MOXA EtherDevice Switch’s configuration settings to their factory default values. This function can be accessed from either the telnet/RS-232 Console, or Web Browser interface.

  • Page 29: Snmp Read/Write Settings

    EDS-408A/405A Series User’s Manual Featured Functions The SNMP page can be configured. A more detailed explanation of each parameter follows: SNMP Read/Write Settings SNMP Versions Setting Description Factory Default Select SNMP protocol versions V1, V2c, V1, V2c, V3 V3 to manage the switch...

  • Page 30: Trap Settings

    EDS-408A/405A Series User’s Manual Featured Functions Admin Auth. Type (for SNMP V1, V2c, V3, and V3 only) Setting Description Factory Default Use admin account to access objects. No-Auth No authentication Provide authentication based on the MD5- HMAC-MD5 algorithms. 8-character Auth passwords are the minimum requirement for authentication.

  • Page 31: Private Mib Information

    This is a particularly important feature for industrial applications, since it could take several minutes to locate the disconnected or severed cable. For example, if MOXA EtherDevice Switch is used as a key communications component of a production line, several minutes of downtime could cause a big loss in production and revenue.
  • Page 32 EDS-408A/405A Series User’s Manual Featured Functions Initial Setup 1. Select any two ports as redundant ports. 2. Connect the redundant ports to form the Turbo Ring The user does not need to set the master to use Turbo Ring. Master is only needed to identify which segment acts as the backup path.
  • Page 33 EDS-408A/405A Series User’s Manual Featured Functions When the number of EDS units in the Turbo Ring is odd. If there are 2N+1 EDS units (an odd number) in Master the Turbo Ring, with EDS units and segments labeled counterclockwise, then segment N+1 will serve as the backup path.

  • Page 34: Configuring Turbo Ring

    EDS-408A/405A Series User’s Manual Featured Functions Decide appropriate coupling ports in each switch and link them together. Next, assign one switch (e.g., Switch A) as coupler and set the proper coupling control port with another switch (e.g., Switch B) in the same Turbo Ring, and then connect them.
  • Page 35 Ring Coupling It is easy and convenient for users to set up Turbo Ring settings using the DIP Switches located on EDS-408A/405A’s outer casing. (For details on how to do this, refer to “Configuring Basic Settings—Turbo Ring DIP Switch.”) If you use the web, console, or Telnet interface to enable the DIP Switch, and then set the DIP Switch on the switch’s outer casing from OFF to ON, you will not be able to use the web browser...

  • Page 36: The Stp/Rstp Concept

    Networks that have a complicated architecture are prone to broadcast storms caused by unintended loops in the network. MOXA EtherDevice Switch’s STP feature is disabled by default. To be completely effective, you must enable RSTP/STP on every EDS connected to your network.
  • Page 37 EDS-408A/405A Series User’s Manual Featured Functions Locate and then disable less efficient paths (i.e., paths that have a lower bandwidth). Enable one of the less efficient paths if the most efficient path fails. The figure below shows a network made up of three LANs separated by three bridges. Each segment uses at most two paths to communicate with the other segments.

  • Page 38: How Stp Works

    EDS-408A/405A Series User’s Manual Featured Functions LAN 1 Bridge B LAN 2 Bridge A Bridge C LAN 3 STP determines which path between each bridged segment is most efficient, and then assigns a specific reference point on the network. When the most efficient path has been identified, the other paths are blocked.

  • Page 39: Stp Example

    EDS-408A/405A Series User’s Manual Featured Functions The identity of each bridge’s Root Port. The Root Port is the port on the bridge that connects to the Root Bridge via the most efficient path; in other words, the port connected to the Root Bridge via the path with the lowest Root Path Cost.

  • Page 40: Using Stp On A Network With Multiple Vlans

    EDS-408A/405A Series User’s Manual Featured Functions LAN Segment 1 Port 1 Port 1 Port 1 (Root Port) (Root Port) (Designated Bridge Port) Cost =100 Cost =100 Bridge B Bridge X Bridge A Port 2 Port 2 Port 2 (Designated (Blocked Port)

  • Page 41: Configuring Stp/Rstp

    (NOTE: The user interface for EDS-408A shows 8 ports.) At the top of this page, the user can check the Current Status of this function. For RSTP, you will...
  • Page 42 EDS-408A/405A Series User’s Manual Featured Functions At the lower portion of this page, the user can configure the Settings of this function. For RSTP, you can configure: Protocol of Redundancy Setting Description Factory Default Select this item to change to the...
  • Page 43 These three variables are further restricted by the following two inequalities: [Eq. 4]: 2 * (Hello Time + 1 sec) ≦ Max. Age ≦ 2 * (Forwarding Delay – 1 sec) MOXA EtherDevice Switch’s firmware will alert you immediately if any of these restrictions are violated. For example, setting Hello Time = 5 sec, Max.

  • Page 44: Using Traffic Prioritization

    Quality of Service for your network. The rules define different types of traffic and specify how each type should be treated as it passes through the switch. MOXA EtherDevice Switch can inspect both IEEE 802.1p/1Q layer 2 QoS tags, and even layer 3 TOS information to provide consistent classification of the entire network.
  • Page 45 EDS-408A/405A Series User’s Manual Featured Functions The IEEE Std 802.1D, 1998 Edition priority marking scheme assigns an IEEE 802.1p priority level between 0 and 7 to each frame. This determines the level of service that type of traffic should receive. Refer to the table below for an example of how different traffic types can be mapped to the eight IEEE 802.1p priority levels.

  • Page 46: Configuring Traffic Prioritization

    This method always gives precedence to high priority over low-priority. Configuring Traffic Prioritization QoS Classification MOXA EtherDevice Switch supports inspection of layer 3 TOS and/or layer 2 QoS tag information to determine how to classify traffic packets. (NOTE: The user interface for EDS-408A shows 8 ports.) 3-31...
  • Page 47 Queuing Mechanism Setting Description Factory Default EDS-408A/405A has 4 priority queues. In the weight fair scheme, an 8, 4, 2, 1 weighting is applied to the four priorities. This approach prevents the lower Weighted Fair priority frames from being starved of opportunity for transmission with only a slight delay to the higher priority frames.
  • Page 48 EDS-408A/405A Series User’s Manual Featured Functions CoS Mapping Setting Description Factory Default 0: Low 1: Low 2: Normal Low/Normal/ Set the mapping table of different CoS values to 4 3: Normal Medium/High different egress queues. 4: Medium 5: Medium 6: High...

  • Page 49: Using Virtual Lan

    EDS-408A/405A Series User’s Manual Featured Functions Using Virtual LAN Setting up Virtual LANs (VLANs) on your EDS increases the efficiency of your network by dividing the LAN into logical segments, as opposed to physical segments. In general, VLANs are easier to manage.

  • Page 50: Using Virtual Lan

    Using Virtual LAN Port-based VLANs and MOXA EtherDevice Switch EDS-408A/405A supports Port-based VLAN. When using this function, you must first define which ports should join the VLAN. Once set, devices can be moved around the network without affecting to which VLAN the device is connected.

  • Page 51: Using Rate Limiting

    A single device should not be allowed to occupy unlimited bandwidth, especially when the device malfunctions. For example, broadcast storms could be caused by an incorrect topology or malfunctioning device. The EDS-408A/405A series not only prevents broadcast storms, but can also configure the ingress rate of unicast/multicast/broadcast packets, giving administrators full control of the limited bandwidth, and preventing unpredictable faults before they occur.
  • Page 52 EDS-408A/405A Series User’s Manual Featured Functions Policy Setting Description Factory Default Selecting this option prohibits all traffic of Limit All broadcast, multicast, and unicast packets that exceed the rate set in the following “Rate” field. Selecting this option prohibits all traffic of...

  • Page 53: Using Auto Warning

    Even when control engineers are out of the control room for an extended period of time, they can still be informed of the status of devices almost instantaneously when exceptions occur. MOXA EtherDevice Switch supports different approaches such as email and relay output to warn engineers automatically.
  • Page 54 EDS-408A/405A Series User’s Manual Featured Functions Event Types Event Types can be divided into two basic groups: System Events and Port Events. System Events are related to the overall function of the switch, whereas Port Events are related to the activity of a specific port.

  • Page 55: Email Settings

    EDS-408A/405A Series User’s Manual Featured Functions Email Settings Mail Server IP/Name Setting Description Factory Default IP address The IP Address of your email server. None Account Name Setting Description Factory Default Max. 45 Charters Your email account. None Password Setting...

  • Page 56: Configuring Relay Warning

    Select the desired Event types from the Console or Web Browser Event type page (a description of each event type is given later in the Relay Warning Events setting subsection). 2. Activate your settings After configuring, you will need to activate your MOXA EtherDevice Switch’s Relay Event Types. Relay Warning Events Settings NOTE: The user interface for EDS-408A shows 8 ports.
  • Page 57 Events are related to the overall function of the switch, whereas Port Events are related to the activity of a specific port. MOXA EtherDevice Switch supports one relay output. You can configure which relay output is related to which events. This helps administrators identify the importance of the different events.

  • Page 58: Relay Warning List

    Enable Line-Swap-Fast-Recovery function Using Set Device IP To reduce the effort required to set up IP addresses, the EDS-408A/405A series comes equipped with DHCP/BootP server and RARP protocol to automatically set up IP addresses of Ethernet-enabled devices. When enabled, the Set device IP function allows MOXA EtherDevice Switch to assign specific IP addresses automatically to connected devices that are equipped with DHCP Client or RARP protocol.

  • Page 59: Configuring Set Device Ip

    STEP 2 Configure MOXA EtherDevice Switch’s Set device IP function, either from the Console utility or from the Web Browser interface. In either case, you simply need to enter the Desired IP for each port that needs to be configured.

  • Page 60: Using Diagnosis

    Do the following to set up the Mirror Port function: STEP 1 Configure MOXA EtherDevice Switch’s Mirror Port function from either the Console utility or Web Browser interface. You will need to configure three settings: Select the port number of the port whose network activity will be Monitored Port monitored.

  • Page 61: Ping

    Access the Monitor by selecting System from the left selection bar. Monitor by System allows the user to view a graph that shows the combined data transmission activity of all of MOXA EtherDevice Switch’s 8 ports. Click on one of the four options—Total Packets, TX Packets, RX Packets, or Error Packets—to view transmission activity of specific types of packets.

  • Page 62: Monitor By Port

    Broad-cast packets. The graph is updated every few seconds, allowing the user to analyze data transmission activity in real-time. Using the MAC Address Table This section explains the information provided by MOXA EtherDevice Switch’s MAC address table. The MAC Address table can be configured to display the following EDS MAC address groups.

  • Page 63: Using Event Log

    System Startup Time The system startup time related to this event. Events Events that have occurred. Events are logged in the EDS-408A/405A Event Log when the following events occur: 1. Cold start 2. Warm start 3. Configuration Change Activated 4. Power Transition from OFF to ON or from ON to OFF 5.

  • Page 64: Eds Configurator Gui

    MOXA EtherDevice Switches attached to the same LAN as the PC host (regardless of whether or not you know the IP addresses of the switches), connect to a MOXA EtherDevice Switch whose IP address is known, modify the network configurations of one or multiple MOXA EtherDevice Switches, and update the firmware of one or more MOXA EtherDevice Switches.

  • Page 65: Starting Eds Configurator

    The MOXA EtherDevice Switch Configurator window will open, as shown. Broadcast Search Use the Broadcast Search utility to search the LAN for all MOXA EtherDevice Switches that are connected to the LAN. Note that since the search is done by MAC address, Broadcast Search will not be able to locate MOXA EtherDevice Servers connected outside the PC host’s LAN.

  • Page 66: Search By Ip Address

    Search by IP address This utility is used to search for MOXA EtherDevice Switches one at a time. Note that the search is conducted by IP address, so you should be able to locate any MOXA EtherDevice Switch that is properly connected to your LAN, WAN, or even the Internet.

  • Page 67: Modify Ip Address

    “*.rom” file (eds.rom in the example shown below) to select the file. Click Open to activate the upgrade process. Modify IP Address You may use the Modify IP Address function to reconfigure MOXA EtherDevice Switch’s network settings. Start by clicking the Modify IP address icon , or by selecting Modify IP address from the Configuration menu.

  • Page 68: Export Configuration

    EDS Configurator GUI Export Configuration The Export Configuration utility is used to save the entire configuration of a particular MOXA EtherDevice Switch to a text file. Do the following to export a configuration: 1. Highlight the switch (from the Server list in the Configurator window’s left pane), and then...

  • Page 69: Import Configuration

    The Import Configuration function is used to import an entire configuration from a text file to MOXA EtherDevice Switch. This utility can be used to transfer the configuration from one MOXA EtherDevice Switch to another, by first using the Export Configuration function (described in the previous section) to save a switch configuration to a file, and then using the Import Configuration function.

  • Page 70: Unlock Server

    There are six possible responses under the Status column. The Status of a MOXA EtherDevice Switch indicates how the switch was located (by MOXA EtherDevice Switch Configurator), and what type of password protection it has.
  • Page 71 EDS-408A/405A Series User’s Manual EDS Configurator GUI 2. When the Unlock status window reports Progress as OK, click the Close button on the upper right corner of the window. 3. The status of the switch will now read either Unlocked or Unlocked Fixed.

  • Page 72: Mib Groups

    MIB II.11 – SNMP Group MIB II.16 – RMON MIB II.17 – Dot1dBridge Group MIB II.17.2 – RSTP-MIB Group MIB II.17.6 – pBridge Group EDS-408A/405A also provides a private MIB file, located in the file MOXA-EDS408A-MIB.my/ MOXA-EDS405A-MIB.my on the EDS-408A/405A Series utility CD-ROM.
  • Page 73 Specifications Appendix B Technology Standards IEEE802.3, 802.3u, 802.3x, 802.1D, 802.1w, 802.1p Protocols SNMP V1/V2c/V3, DHCP Server/Client, BootP, RMON, TFTP, SNTP, SMTP, RARP and EDS-SNMP OPC server Pro (Optional) MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, RMON MIB Group 1, 2, 3, 9, MIB, Bridge MIB, RSTP MIB Forwarding and Filtering Rate 148810 pps Processing Type Store and Forward...

  • Page 74: Appendix B Specifications

    EDS-408A/405A Series User’s Manual Specifications Power Input Voltage 12 to 45 VDC, redundant inputs Input Current (@24V) Max. 0.26A: (EDS-408A/405A) Max. 0.43A: (EDS-408A/405A-MM-SC, EDS-408A/405A-SS-SC, EDS-408A/405A-MM-ST) Connection One removable 6-pin terminal block Overload Current Protection Present Reverse Polarity Protection Present Mechanical 53.6 ×...

  • Page 75: Appendix C Service Information

    Service Information Appendix C This appendix shows you how to contact Moxa for information about this and other products, and how to report problems. In this appendix, we cover the following topics. MOXA Internet Services Problem Report Form Product Return Procedure...

  • Page 76: Moxa Internet Services

    MOXA Internet Services Customer satisfaction is our primary concern. To ensure that customers receive the full benefit of our products, Moxa Internet Services has been set up to provide technical support, driver updates, product information, and user’s manual updates. The following services are provided E-mail for technical support........support@moxanet.com...

  • Page 77: Problem Report Form

    EDS-408A/405A Series User’s Manual Service Information Problem Report Form MOXA EDS-408A/405A Series Customer name: Company: Tel: Fax: Email: Date: 1. Moxa Product: EDS-408A EDS-408A-MM-SC EDS-408A-SS-SC EDS-408A-T EDS-408A-MM-SC-T EDS-408A-SS-SC-T EDS-408A-MM-ST EDS-408A-MM-ST-T EDS-405A EDS-405A-MM-SC EDS-405A-SS-SC EDS-405A-T EDS-405A-MM-SC-T EDS-405A-SS-SC-T EDS-405A-MM-ST EDS-405A-MM-ST-T 2. Serial Number: _________________ Problem Description: Please describe the symptoms of the problem as clearly as possible, including any error messages you see.

  • Page 78: Product Return Procedure

    EDS-408A/405A Series User’s Manual Service Information Product Return Procedure For product repair, exchange, or refund, the customer must: Provide evidence of original purchase. Obtain a Product Return Agreement (PRA) from the sales representative or dealer. Fill out the Problem Report Form (PRF). Include as much detail as possible for a shorter product repair time.
