Summary of Contents for Moxa Technologies IKS-6700A series

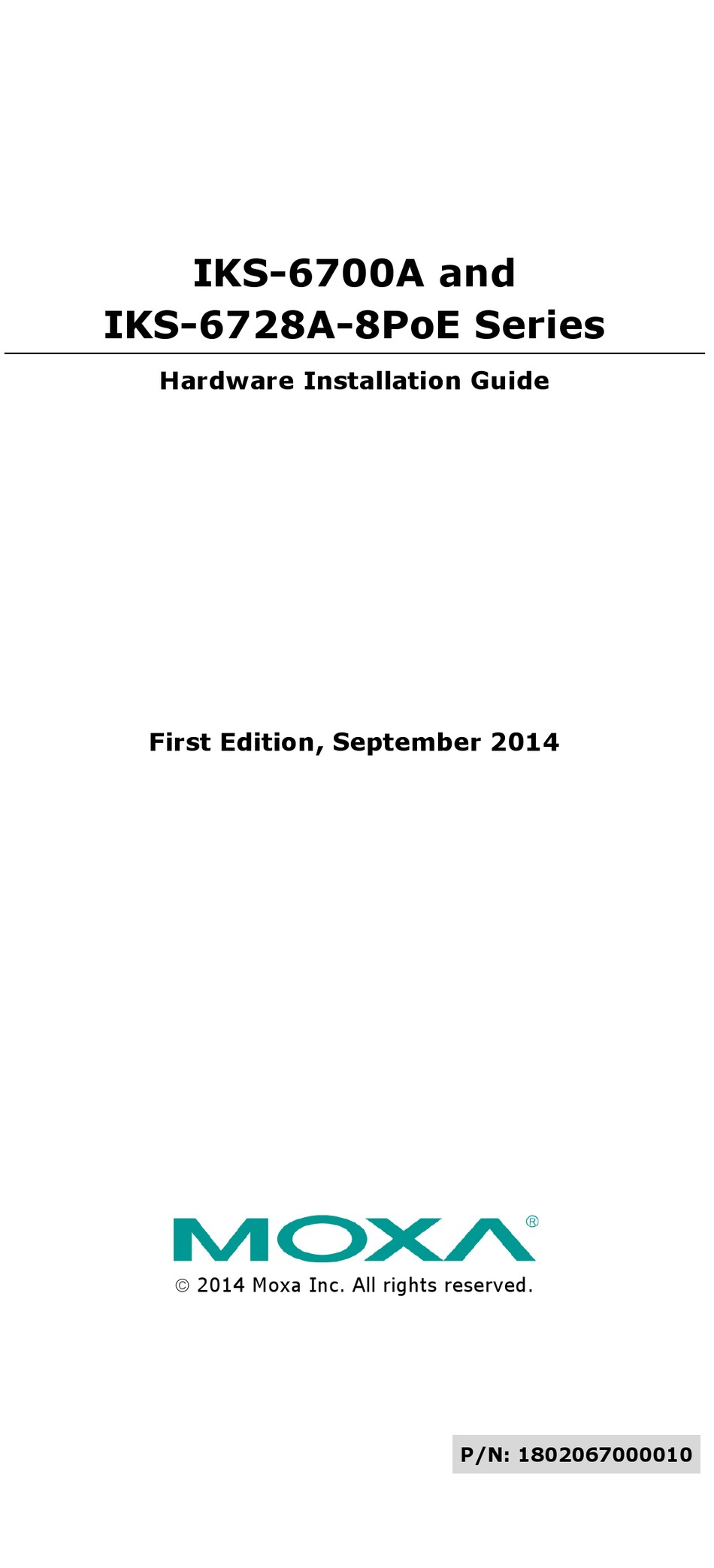

- Page 1 IKS-6700A and IKS-6728A-8PoE Series Hardware Installation Guide First Edition, September 2014 2014 Moxa Inc. All rights reserved. P/N: 1802067000010...
-
Page 2: Package Checklist

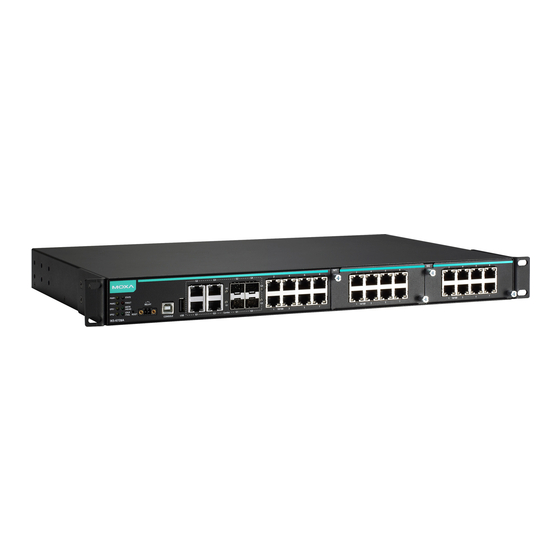

Package Checklist The Moxa IKS-6700A/IKS-6728A-8PoE industrial rackmount switch is shipped with the following items. If any of these items are missing or damaged, please contact your customer service representative for assistance. • IKS-6700A/IKS-6728A-8PoE switch • USB cable (Type A male to Type B male) •... -
Page 3: Fast Ethernet Interface Modules
14. Grounding screw 15. Power sockets for AC power inputs or terminal blocks for DC power inputs Dimensions Unit = mm (inch) Fast Ethernet Interface Modules (IM-6700A Series) - 3 -... -
Page 4: Wiring Requirements
Grounding the Moxa Industrial Rackmount Switch Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. NOTE Using a shielded cable achieves better electromagnetic compatibility. -
Page 5: Wiring The Relay Contact
power cord with an IEC C13 connector, which is compatible with the AC power inlet. DC Power Terminal Blocks The connection for EPS1 (external power supply 1) / PWR1 (power supply 1) and EPS2 (external power supply 2) / PWR2 (power supply 2) are located on the rear panel (shown below). -
Page 6: The Reset Button
Use Moxa’s USB Automatic Backup Configurator ABC-02-USB to connect to the USB host port to backup and restore configuration files, auto-load configuration files, upgrade firmware, and backup system log files. The Reset Button Depress the Reset button for five continuous seconds to load the factory default settings. - Page 7 Color State Description 3. Blink slowly when an ABC-02 automatic backup device is detected System failed self-diagnosis on boot-up System is in the event of failure, or is FAULT under quick inspection System is in normal operation When the IKS-6700A/IKS-6728A-8PoE is set as the Master of the Turbo Ring, or as the Head of the Turbo Chain The IKS-6700A/IKS-6728A-8PoE has...
-
Page 8: Specifications
is inactive The corresponding port’s 10 Mbps link is active AMBER Blinking Data is being transmitted at 10 Mbps The corresponding port’s 10 Mbps link is inactive The corresponding port is connected to an IEEE 802.3at power device Over current or short circuit on the Blinking power device with IEEE 802.3at GREEN... -
Page 9: Power Requirements
100Base SFP, or PoE+ 10/100BaseT(X) Gigabit 4-port 10/100/1000BaseT(X) or 100/1000Base SFP Ethernet Console Port USB-serial console (Type B connector) PWR1, PWR2, EPS1, EPS2, STATE, FAULT, MSTR/HEAD, Indicators CPLR/TAIL Alarm 1 relay output with current carrying capacity of 2 A @ 30 Contact Power Requirements Input Voltage IKS-6726A-2GTXSFP-24(-24)-T: 24 VDC... -
Page 10: Rack Mounting Instructions
Storage -40 to 85°C (-40 to 185°F) Temp. Ambient 5 to 95% (non-condensing) Relative Humidity Standards and Certifications Safety UL 60950-1, EN 60950-1 FCC Part 15 Subpart B Class A, EN 55022 Class A EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11... - Page 11 who have been instructed on how to handle the metal chassis of equipment that is so hot that special protection may be needed before touching it. The location should only be accessible with a key or through a security identity system. •...
