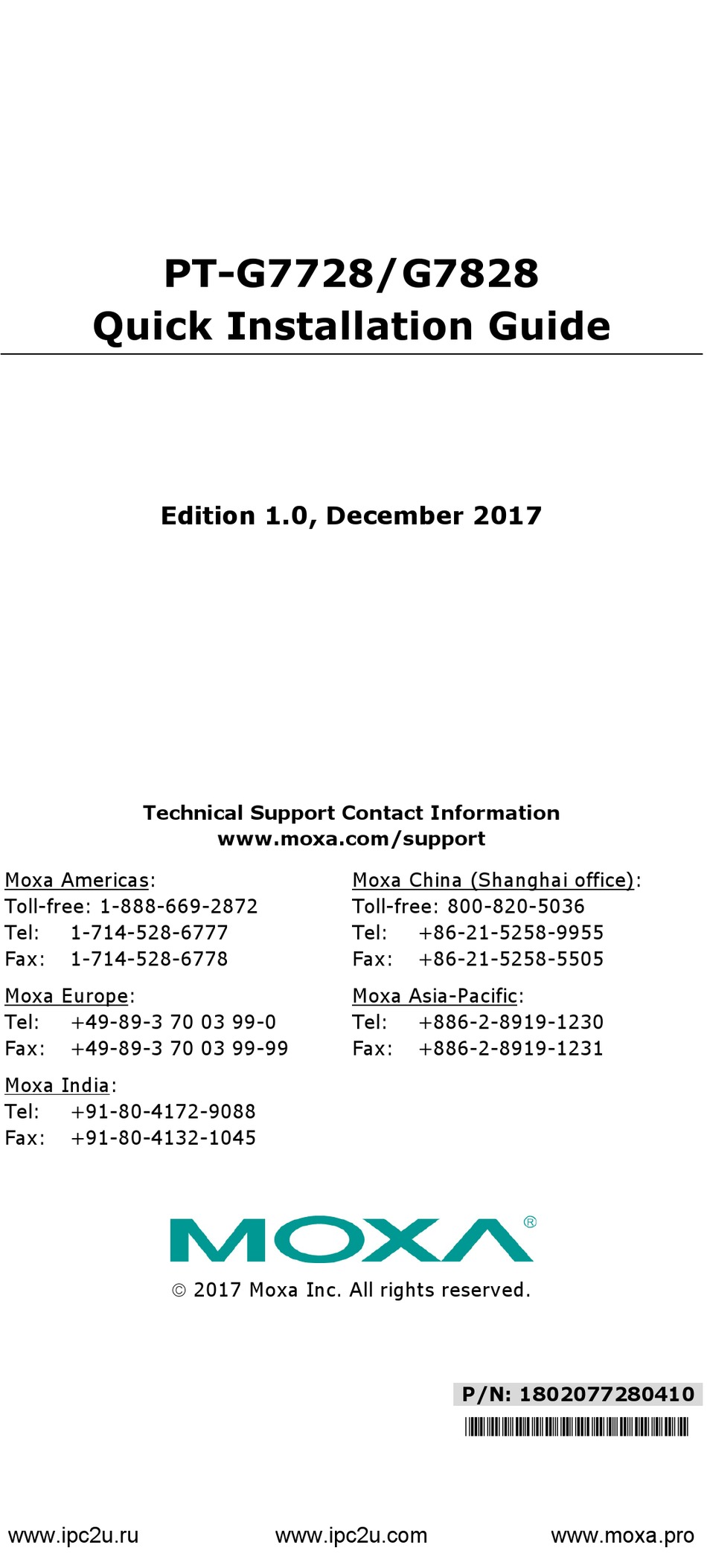

PT-G7728/G7828
Edition 1.0, December 2017
Technical Support Contact Information
www.moxa.com/support
2017 Moxa Inc. All rights reserved.
www.ipc2u.com
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802077280410
*1802077280410*
www.moxa.pro
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moxa Technologies PT-G7728
Summary of Contents for Moxa Technologies PT-G7728
- Page 1 PT-G7728/G7828 Quick Installation Guide Edition 1.0, December 2017 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0...
-
Page 2: Package Checklist

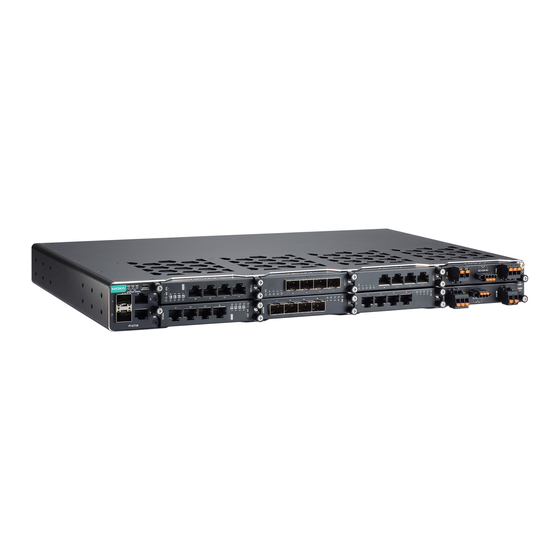

Package Checklist Moxa’s PT-G7728/G7828 industrial rackmount switch is shipped with the following items. If any of these items are missing or damaged, please contact your customer service representative for assistance. • 1 PT-G7728 or G7828 switch • USB cable (Type A male to Micro USB type B) •... -
Page 3: Ethernet Modules
Rear View 1. USB console port 2. USB storage port 3. System LED indicators 4. Module and port LED indicators 5. Rest button Dimensions Unit: mm (inches) Ethernet Modules LM-7000H-4GTX LM-7000H-4GSFP LM-7000H-4GPoE www.ipc2u.ru www.ipc2u.com www.moxa.pro - 3 -... -
Page 4: Power Modules
(e.g. use of power strips). NOTE The rackmount ears can be installed on the front or rear of the PT-G7728/G7828 switch. ATTENTION Safety First! Be sure to disconnect the power cord before installing and/or wiring your Ethernet Switch. -
Page 5: Wiring Requirements
Connecting the Power Inputs The PT-G7728/PT-G7828 switches support 2 types of power supply: • PWR-HV-P48: one 110/220 VAC/VDC (90 to 264 VAC, 88 to 300 VDC), one 48VDC PoE power input for PoE+ ports. • PWR-LV-P48: one 24/48 VDC (18 to 72 VDC), one 48 VDC PoE power input for PoE+ ports. -
Page 6: Wiring The Relay Contact
5 pound-inches. The rated temperature of wiring should be at least 105°C. NOTE When installing 2 power units on the PT-G7728/G7828 switch, only power 1 (installed in the upper slot) will activate and provide power. -
Page 7: Usb Console Connection
Install/Remove the Ethernet module The Ethernet modules are hot-swappable. You have the option to mount or remove the Ethernet module while the device is operating. The installation procedure is as follows: 1. Insert the Ethernet module straight into the slot 2. -
Page 8: The Reset Button
USB Storage Connection The USB storage port is on the rear panel of the PT-G7728/G7828 switch. (Type A connector; see the diagram below for pinout assignments). Use Moxa’s ABC-02-USB automatic backup configurator to connect to the PT-G7728/G7828 USB storage port in order to perform configuration backup, firmware upgrade, or system log file backup. - Page 9 Color State Description 2. When an ABC-02 automatic backup device is detected, the LED will blink slowly (1 time/2s) System failed self-diagnosis on boot up. • Switch Initiate fail • Fail Firmware Checksum Fail/ Uncompressed Fail One of the following has happened: 1.
- Page 10 Once per second: PoE detection failure • Twice per second: short-circuit, overloading, or outside operating temperature range Port’s link is inactive PT-G7728/G7828 (Rear Panel view) Color State Description System LEDs System has passed self-diagnosis test on boot up and is ready to run 1.
- Page 11 Color State Description the Turbo Ring. 2. Head of the Turbo Chain, after the Turbo Ring or the Turbo Chain went down. 3. The switch is set as Turbo Chain’s Member and the corresponding chain port is down. 1. The switch is not the Master of this Turbo Ring.
- Page 12 Color State Description • Twice/second: short-circuit, overloading, or over temperature LM-7000H-4GTX Color State Description Module has passed self-diagnosis test on Green boot-up and is ready to run. (Module This module malfunctions. State) The module is unpowered and out of service Port's 1000 Mbps link is active Green Blinking Data is transmitting at 1000 Mbps...
-
Page 13: Specifications
IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP Protocols IPv4, IPv6(PT-G7728 only), SNMPv1/v2c/v3, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, SNMP Inform, LLDP, Flow Control, Back Pressure Flow Control, Port Mirror, Fiber Check, Syslog, Dying Gasp, IGMPv1/v2/v3, GMRP, GVRP, 802.1Q, Q-in-Q VLAN,... - Page 14 Protection Physical Characteristics Housing IP30 protection Dimensions 443 x 44 x 280 mm (17.32 x 1.37 x 11.02 in) Weight PT-G7728/G7828: 3.08kg (6.78lb) LM-7000H-4GSFP: 0.3kg (0.66lb) LM-7000H-4GTX: 0.24kg (0.53lb) LM-7000H-4GPoE: 0.24kg (0.53lb) PWR-HV-P48/PWR-LV-P48: 0.3kg (0.66lb) Installation 19” rack mounting www.ipc2u.ru www.ipc2u.com...
-
Page 15: Restricted Access Locations
Environmental Limits Operating Temp. -40 to 85°C (-40 to 185°F) Storage Temp. -40 to 85°C (-40 to 185°F) Ambient Relative 5 to 95% (non-condensing) Humidity Standards and Certifications Safety UL 61010-2-201, EN 61010(LVD) (Pending) EN 55024, 55032 CISPR 22, FCC Part 15B Class A IEC 61000-4-2 ESD: Contact: 8 kV;...
