Functional Description; Spring-To-Close Actuator (Z); Spring-To-Open Actuator (A); Intended Purpose - GEA VARIVENT X Operating Instruction

3.2

Functional description

3.2.1

Spring-to-close actuator (Z)

Fig.7:
Valve is closed in the non-actuated position.
Identification on the T.VIS control top:
–
–
3.2.2

Spring-to-open actuator (A)

The valve is open in the non-actuated position.
Identification on the T.VIS control top:
–
–
3.3

Intended Purpose

Shuttle Valve Type X is used for the distribution of streams of liquid within a
section of a pipe.
Shuttle Valve Type W is used for change-over of streams of liquid within a
section of a pipe.
The shuttle valves X and W are pressure-keeping equipment (without safety
function) in the sense of the pressure equipment directive: Directive 97/23/EG.
They are classified according to Annex II, article 3, section 3. A special
declaration of conformity will be supplied in the event of any deviations.
The medium should preferably flow in the opening direction of the valve disk to
avoid pipe hammers when the valve is opened or closed.
430BAL008430EN_4
08.03.2022

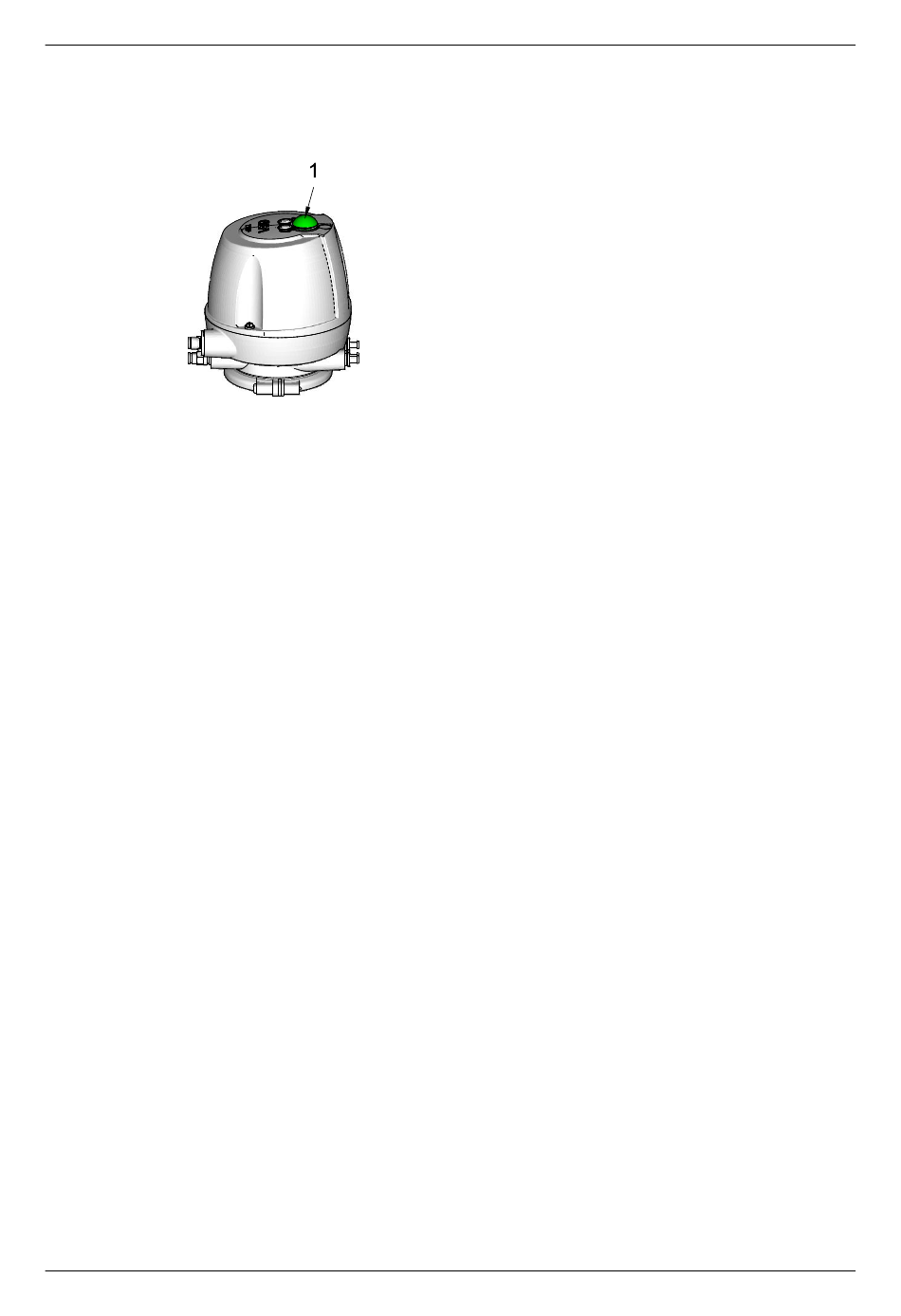

Distinguishing Feature of Spring-To-Close Actuator (Z)
Green steady light (1): valve in non-actuated position
Yellow steady light (1): valve in end position (actuated position)
Green steady light (1): valve in non-actuated position
Yellow steady light (1): valve in end position (actuated position)
