Insinger SPEEDER 64 Specifications

OPTIONAL ACCESSORY EQUIPMENT
Pressure reduction valve and
❏
line strainer
Stainless steel steam coil
❏
tank heat
Infrared tank heat — (90,000
❏
BTU, natural gas or propane)
Steam booster
❏
Single point electrical connection:
❏
motors, controls, and heaters
6245 State Road
Philadelphia, PA 19135-2996
215-624-4800
215-624-6966 FAX
800-344-4802
www.insingermachine.com

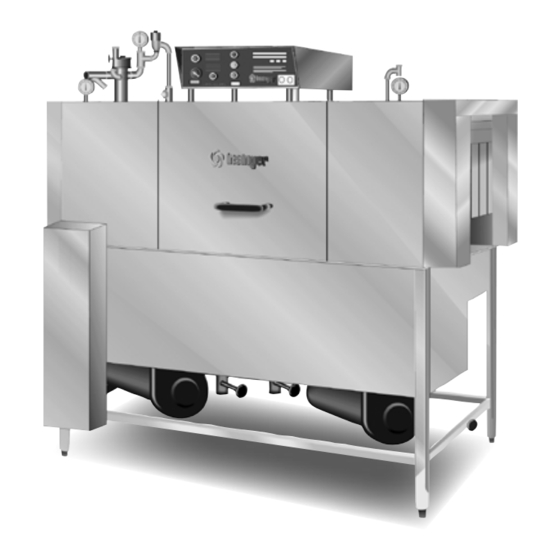

SPEEDER 64
DOUBLE TANK
RACK CONVEYOR
DISHWASHER
DESIGN
Automatic conveyor, rack type double tank dishwasher with
recirculating wash and rinse and fresh water final rinse. Capacity
is 277 - 20"X20" racks per hour, or 6,925 dishes per hour with a
conveyor speed of 7.7 ft. per minute. Designed for left or right hand
conveyor travel, as specified.
STANDARD EQUIPMENT
Exclusive CrossFire Wash
®
●
System (patented)
Tank heat: 22.5 KW electric
●
immersion heaters or steam
injectors
Capillary thermometers for
●
wash and rinse
In-line thermometer for final rinse
●
Vacuum breaker on all incoming
●
water lines
Manifold cleanout brush
●
SureFire Start-Up and
TM
●
Check-Out Service
Inspection door
●
Ventilation fan connection
●
provision
S/S frame, legs and feet
●
Electric booster
❏
Security package
❏
End cowls with vent and
❏
adjustable damper controls
Totally enclosed motors
❏
Rack limit switch
❏
Plastic 20"X20" racks
❏
(plate or silver)
S/S splash guards
❏
Item #_____________
S/S front enclosure panel
●
Automatic tank fill
●
Low water protection
●
Detergent connection provision
●
Elevated top mounted NEMA 12
●
control panel
Easily-cleaned crowned hood top
●
Simplified scrap screen design
●
Door safety switch
●
Standard frame drip proof motors
●
Energy saver
●
Override switch for de-liming
●
End caps/pipe plugs secured to
●
prevent loss
Color-coded curtains
●
Timing belt conveyor drive
●
Chemical sanitizer injector
❏
package for low temperature
operations
Insulated hood and door
❏
Power loader
❏
Power unloader
❏
Door activated drain closers
❏
