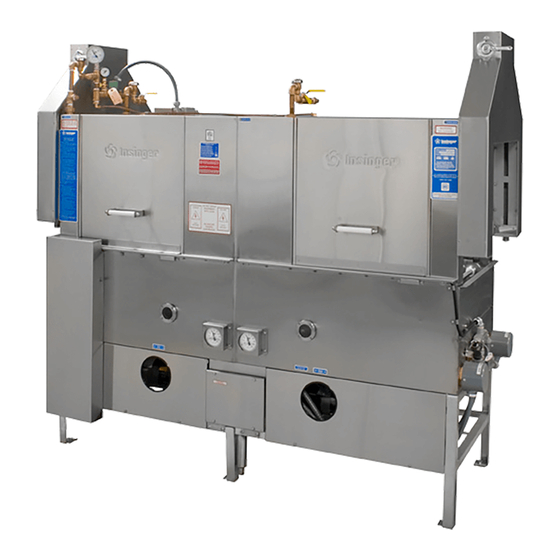

Insinger GalleyMaster 135-LH-E Specifications

STANDARD FEATURES
•
Patented CrossFire™ Wash System
•
Modular "take-apart" design fits through a 26" x 66"
watertight hatch and navigates interior passageway turns
•
Heat: Electric– 5 x 7.5 KW low watt density electric
immersion heaters and 54 KW electric booster with low
temp cut-off. Steam- 2 stainless steel steam coils and
steam booster with low temp cut-off
•
Tank heaters easily removable from inside tank
•
Integral vent cowl system with dampers
•
Hermetically sealed and tank mounted thermometers for
wash and rinse designed to minimize breakage
•
Vacuum breaker on all incoming water lines
•
Pressure reduction valve and line strainer
•
Locking plungers and keys on spray pipes
•
Color-coded curtains
•
Low water protection
•
Permanent legs on the rinse tank, at the split line
•
Porthole level indicator on wash and rinse tanks
•
Premium ball valves on all water and steam lines
•
"Loss proof" wire lanyards on suction strainers, overflow
tubes, and spray pipe end plugs
•
Easily cleaned crowned hood top
OPTIONAL ACCESSORIES
•
Power loader
•
Power unloader
•
Rack limit switch
6245 State Road
Philadelphia, PA 19135-2996
215-624-4800
215-624-6966 FAX
800-344-4802
w w w . i n s i n g e r m a c h i n e . c o m
DESIGN
The GalleyMaster is engineered with an emphasis on dependability,
durability, and serviceability, safety in operation, ease of cleaning and
maintenance.
The modular "take-apart" design enables the dishwasher to go through a
26" x 66" watertight hatch and navigate interior passageway turns for
easy installation. In operation the seams are leak proof.
•
External conveyor drive system (HTD) with frictionless
overload release.
•
Inspection doors with welded handles and splash guards
•
2 safety catches on each door
•
Electrical interlock switch on each door
•
Hermetically sealed in-line thermometer for final rinse
•
Manifold clean-out brush
•
S/S frame, legs, feet and front panels
•
Manual tank fills
•
Connection points for detergent and rinse aid dispensers
•
Detergent probe hole in bottom of wash tank
•
Bulk-head mounted NEMA 12 control panel
•
NEMA 4 control switches
•
Simplified scrap screen design
•
Standard frame TE motors
•
Complies with ASTM specification F859-04
•
2 tech manuals
•
Authorized tech rep in each port
•
Exact footprint replacement for 20M-NSU Series
•
Data plate and instructions in easy to read locations
•
Plastic 20" x 20" racks
service@insingermachine.com
GALLEYMASTER SERIES
ELECTRIC or STEAM HEAT
60, 85, 135, 185, 250
