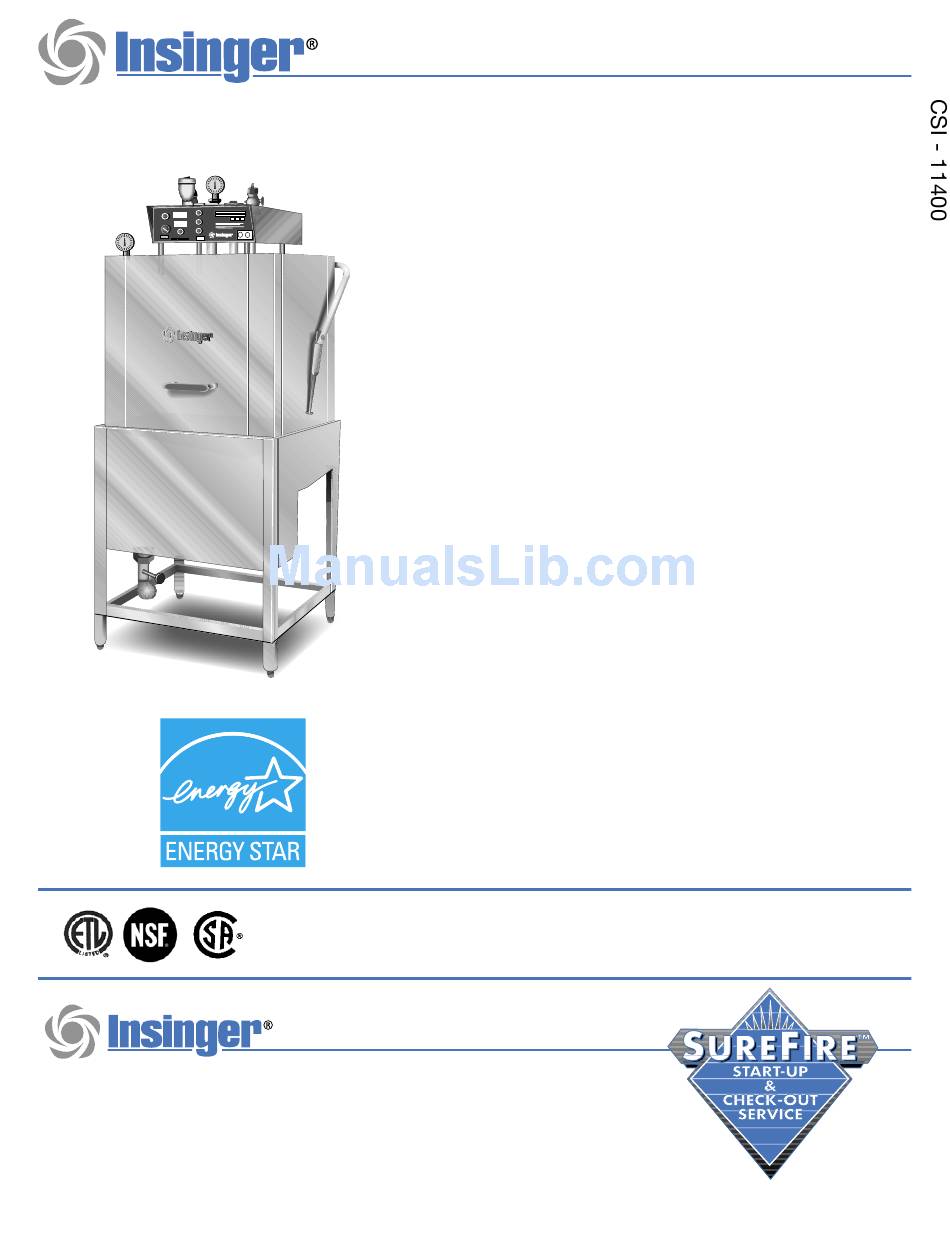

CS-5
AUTOMATIC SINGLE TANK
CHEMICAL SANITIZING
DOOR TYPE DISHWASHER
DESIGN
Automatic door type, single tank dishwasher with a timed wash
and rinse cycle. Fully automatic operation with power on/off button.
Capacity is 60 —20" x 20" racks per hour. Cycle starts when doors
are closed. Designed for straight through operation. Corner model
available for right angle operation.
STANDARD EQUIPMENT
Space saving compact design
●
Door safety switch
●
Detergent connection provision
●
Fully automatic operation
●
Single scrap screen design
●
Non-proprietary commercially
●
available pump motor
Easily removable pump
●
suction strainer
Tank heat: 3KW electric
●
immersion heater or
steam injector
SureFire
Start-Up and
TM
●
Check-Out Service
Vacuum breaker
●
S/S frame, legs and feet
●
S/S front panel
●
Automatic tank fill
●
OPTIONAL ACCESSORY EQUIPMENT
Pressure reduction valve and
❏
line strainer
Stainless steel steam coil
❏
tank heat
Gas tank heat
❏
Security package
❏
Item #_____________
Single point electrical connection:
●
motor, controls, heater
Elevated top-mounted NEMA 12
●
control panel
Easily-cleaned crowned hood top
●
"Easy Clean" front-mounted
●
wash tank
Capillary thermometer for wash
●
In-line thermometer for final rinse
●
Manifold cleanout brush
●
Inspection door
●
Low water protection
●
Override switch for deliming or
●
extended wash cycle
Vent fan connection provision
●
End caps/pipe plugs secured to
●
prevent loss
Totally enclosed motor
❏
Door activated drain closer
❏
Plastic 20" x 20" racks
❏
(plate or silver)
