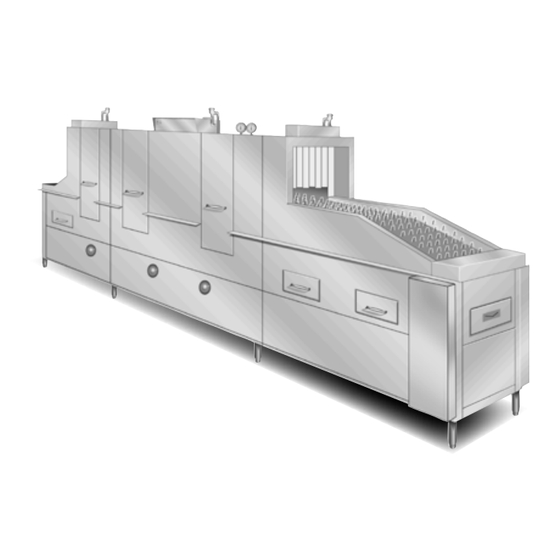

CLIPPER RC
AUTOMATIC THREE TANK
RACKLESS CONVEYOR
DISHWASHER
DESIGN
Automatic conveyor, flight type three tank dishwasher with
recirculating prewash, wash and rinse and fresh water final rinse.
Capacity is 8,812 dishes per hour with a conveyor speed of 6.8
ft. per minute. Designed for left or right hand conveyor travel, as
specified.
STANDARD EQUIPMENT
Exclusive CrossFire
Wash
®
●
system (patented)
Tank heat: 60 KW electric
●
immersion heaters or steam
injectors
Capillary thermometers for
●
prewash, wash, rinse
and final rinse
Final rinse pressure gauge
●
Vacuum breaker on all incoming
●
water lines
Manifold cleanout brush
●
S/S frame, legs and feet
●
S/S front enclosure panel
●
Inspection and cleanout doors
●
Automatic tank fill
●
Low water protection
●
Detergent connection provision
●
Door safety switches
●
OPTIONAL ACCESSORY EQUIPMENT
Stainless steel steam coil
❏
tank heat
Pressure reduction valve and
❏
line strainer
Stainless steel belt with
❏
removable rack sections
Single point electrical connection:
❏
motors, controls, and heaters
Item #_____________
SureFire
Start-Up and
TM
●
Check-Out Service
Top mounted NEMA 12
●
control panel
Steam booster
●
Simplified scrap screen design
●
Exhaust connections with
●
adjustable dampers
Standard frame drip proof motors
●
Conveyor reversing switch
●
Polypropylene belt with
●
removable rack sections
Conveyor safety stop bar
●
Override switch for de-liming
●
Interior work lights
●
End caps/pipe plugs secured
●
to prevent loss
Color-coded curtains
●
Security package
❏
Electric booster
❏
S/S panels all sides
❏
Insulated hood and doors
❏
Totally enclosed motors
❏
5 inch wide conveyor
❏
section for washing flatware
