Insinger CENTURY 14 Specifications

6245 State Road
Philadelphia, PA 19135-2996
215-624-4800
215-624-6966 FAX
800-344-4802
www.insingermachine.com

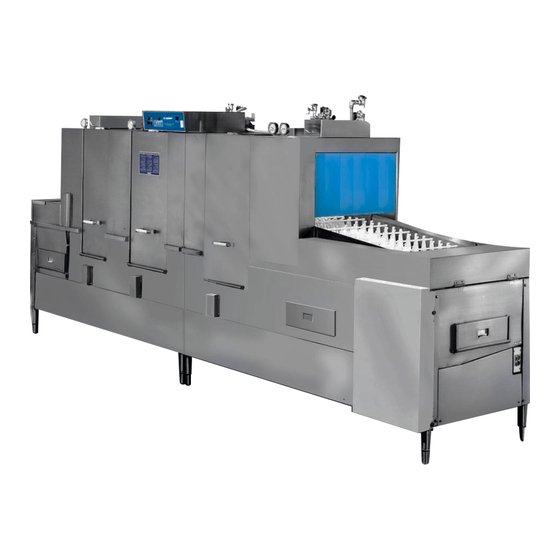

CENTURY 14
AUTOMATIC THREE TANK
RACKLESS CONVEYOR
DISHWASHER
DESIGN
Automatic conveyor, flight type three tank dishwasher with
recirculating prewash, wash and rinse; and fresh water final rinse.
Capacity is 8,736 dishes per hour with a conveyor speed of 7 ft.
per minute. Designed for left or right hand conveyor travel, as
specified.
STANDARD EQUIPMENT
®
Exclusive CrossFire Wash
●
system (patented)
Tank heat: 50 KW electric
●
immersion heaters or steam
injectors
Capillary thermometers for
●
prewash, wash, rinse
and final rinse
Final rinse pressure gauge
●
Vacuum breakers on all incoming
●
water lines
Manifold cleanout brush
●
Inspection and cleanout doors
●
S/S frame, legs and feet
●
S/S front enclosure panel
●
Automatic tank fill
●
Low water protection
●
Detergent connection provision
●
OPTIONAL ACCESSORY EQUIPMENT
Stainless steel steam coil
❏
tank heat
Pressure reduction valve and
❏
line strainer
Stainless steel belt with
❏
removable rack sections
S/S panels all sides
❏
Item #_____________
SureFire Start-Up and
TM
●
Check-Out Service
Top mounted control panel
●
(NEMA 12)
Steam booster
●
Simplified scrap screen design
●
Door safety switches
●
Exhaust connections with
●
adjustable dampers
Standard frame drip proof motors
●
Conveyor reversing switch
●
Polypropylene belt with
●
removable rack sections
Conveyor safety stop bar
●
Override switch for de-liming
●
Interior work lights
●
Single point electrical connection:
❏
motors, controls, and heaters
Security package
❏
Electric booster
❏
Insulated hood and doors
❏
Totally enclosed motors
❏
