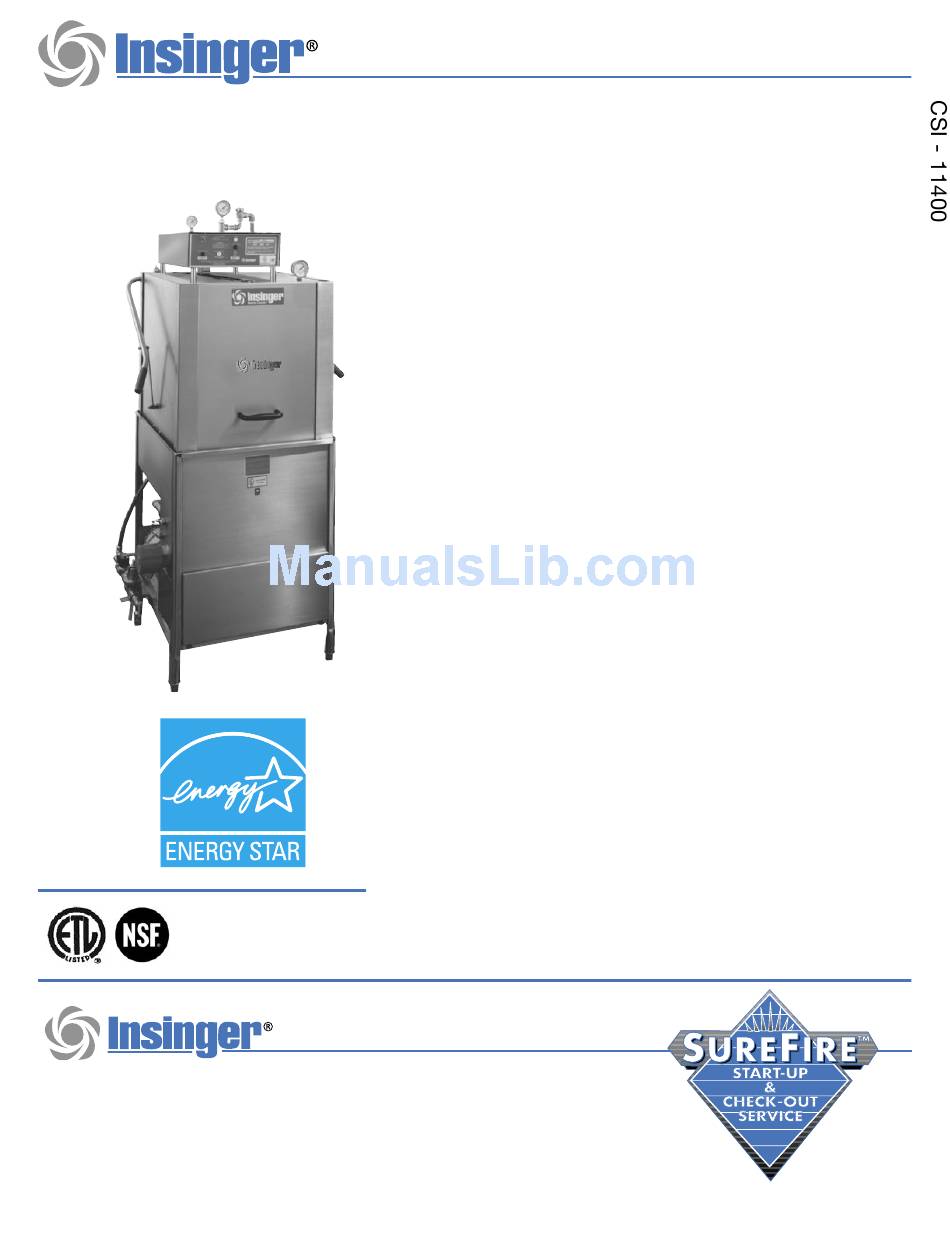

Insinger COMMANDER 18-5 Specifications

6245 State Road
Philadelphia, PA 19135-2996
215-624-4800
215-624-6966 FAX
800-344-4802
www.insingermachine.com
COMMANDER 18-5
AUTOMATIC SINGLE TANK
DOOR TYPE DISHWASHER
DESIGN
Automatic door type, single tank dishwasher with timed wash and
rinse cycle. Fully automatic operation with power on/off button.
A selector switch allows you to start the wash cycle with a manual
start button or by closing the door. Capacity is 60 - 20" X 20" racks
per hour, or 1500 dishes per hour. Designed for straight through
operation. Corner model available for right angle operation.
STANDARD EQUIPMENT
Space saving compact design
●
Door safety switch
●
Detergent connection provision
●
Fully automatic operation
●
Single scrap screen design
●
Non-proprietary commercially
●
available pump motor
Easily removable pump
●
suction strainer
Tank heat: 3KW electric
●
immersion heater or
steam injector
SureFire Start-Up and
TM
●
Check-Out Service
Vacuum breaker
●
Capillary thermometer for wash
●
In-line thermometer for final rinse
●
Manual start button
●
Selector switch
●
OPTIONAL ACCESSORY EQUIPMENT
Pressure reduction valve
❏
and line strainer
Stainless steel steam coil
❏
tank heat
Steam booster
❏
Built-in electric booster
❏
Remote electric booster
❏
Item #_____________
Easy-glide doors
●
Single point electrical connection:
●
motor, controls, heater and
built-in booster (only)
Top-mounted NEMA 12
●
control panel
"Easy Clean" front-mounted
●
wash tank
Manifold cleanout brush
●
Inspection door
●
S/S frame, legs and feet
●
S/S front panel
●
Automatic tank fill
●
Low water protection
●
Override switch for deliming or
●
extended wash cycle
Vent fan connection provision
●
End caps/pipe plugs secured to
●
prevent loss
Security package
❏
Totally enclosed motor
❏
Door activated drain closer
❏
Plastic 20" x 20" racks
❏
(plate or silver)
0.5, 2, 4, 6 minute wash timer
❏
